TASK 72-42-20-300-004 Thrust Balance Seal Vent Tube - Blend Repair Surface Damage, Repair-004 (VRS3024)

DMC:V2500-A0-72-42-2071-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-20-300-004 Thrust Balance Seal Vent Tube - Blend Repair Surface Damage, Repair-004 (VRS3024)

Effectivity

FIG/ITEM

PART NO.

07-001

2A0819-01

Material of components

DESCRIPTION

RR SYMBOL

MATERIAL

Thrust balance seal vent tube

Nickel alloy

General

Price and availability - refer to IAE.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
File (fine)LOCALFile (fine)
Workshop Inspection EquipmentLOCALWorkshop Inspection Equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-106 ABRASIVE STONEK6835CoMat 05-106
CoMat 05-110 EMERY POLISHING PAPER0AM53CoMat 05-110
CoMat 05-120 POLISHING CLOTH06565CoMat 05-120

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-20-350-055 Blend High Metal and Surface Damage on the Thrust Balance Seal Vent Tube

      1. Blend high metal and surface damage on the thrust balance seal vent tube.

    2. SUBTASK 72-42-20-220-112 Examine the Repair

      1. Examine the thrust balance seal vent tube after blend repair.

      1. Refer to Figure and Inspection-000 TASK 72-42-20-200-100.

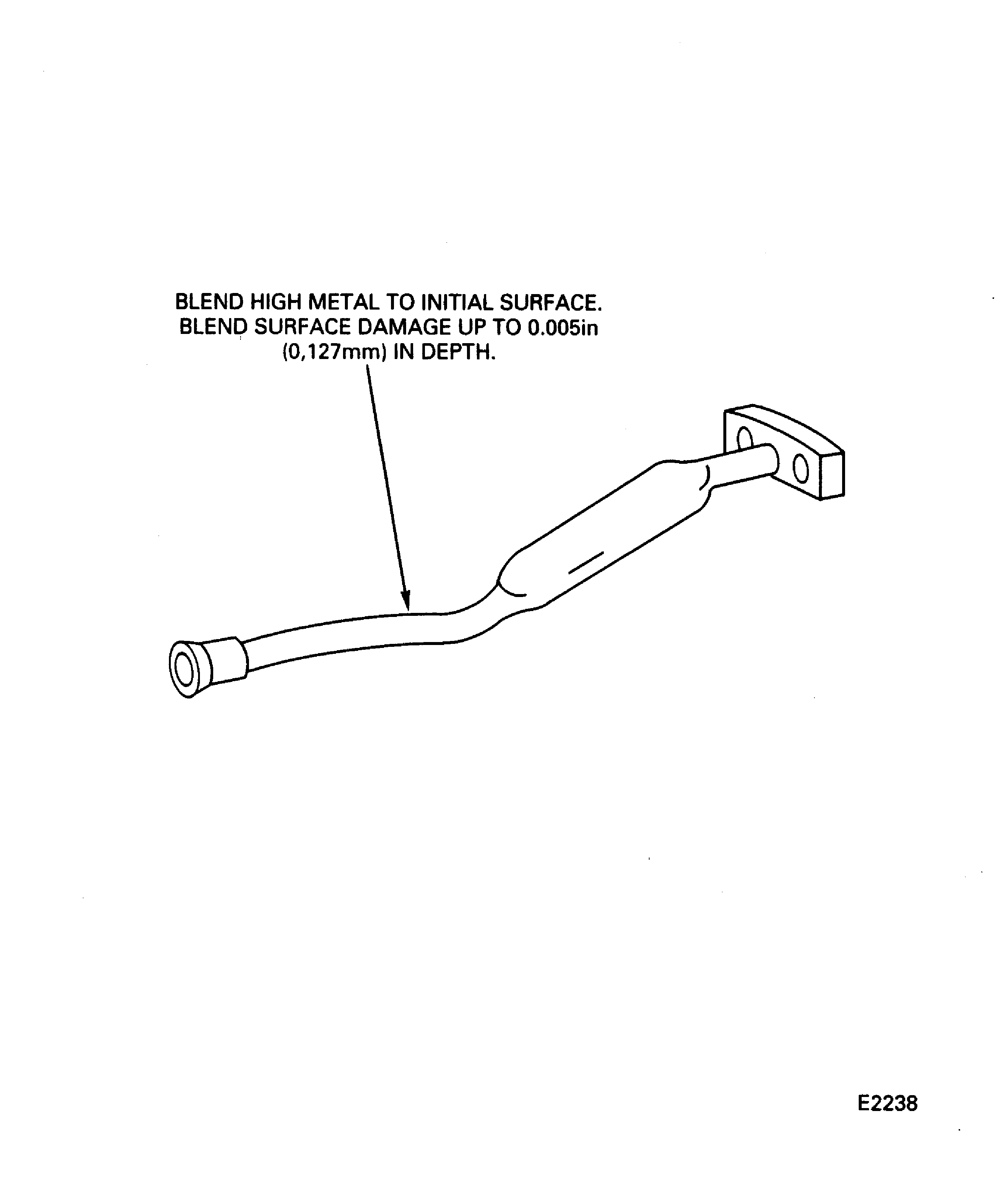

    3. Figure: Thrust Balance Seal Vent Tube Blend Repair

    Thrust Balance Seal Vent Tube Blend Repair

Requirements After Job Completion

Follow-On Conditions

NONE
