TASK 72-42-31-300-007 No. 4 Bearing Support - Blend Repair, Repair-007 (VRS3078)

DMC:V2500-A0-72-42-3100-00A-649A-B|Issue No:003.00|Issue Date:2014-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-31-300-007 No. 4 Bearing Support - Blend Repair, Repair-007 (VRS3078)

Effectivity

FIG/ITEM

PART NO.

01-010

2A0846

01-010

2A2038

01-010

2A2064

01-010

2A2461

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

No. 4 bearing support assembly

-

Nickel alloy

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
FileLOCALFile

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-31-350-054 Blend the No. 4 Bearing Support Assembly

    1. Refer to: Figure

      2. Blend damage at location 1, 4 and 5.

      1. Blend local surface damage that is 0.030in. (0.762 mm) wide provided the areas with damage are a minimum of 1.000in. (25.4 mm) apart and the depth is not more than 15 percent of the material thickness. Refer to SPM TASK 70-35-21-350-501.

      3. Blend damage at location 2.

      1. Blend raised material and burrs. Fifteen percent of threads can be blended. Refer to SPM TASK 70-35-21-350-501.

      4. Blend damage at locations 3 and 6.

      1. Blend surface damage to a maximum of 15 percent of material thickness. Refer to SPM TASK 70-35-21-350-501.

    2. SUBTASK 72-42-31-220-059 Examine the No. 4 Bearing Support Assembly After Blend Repair

      1. Examine the blended areas.

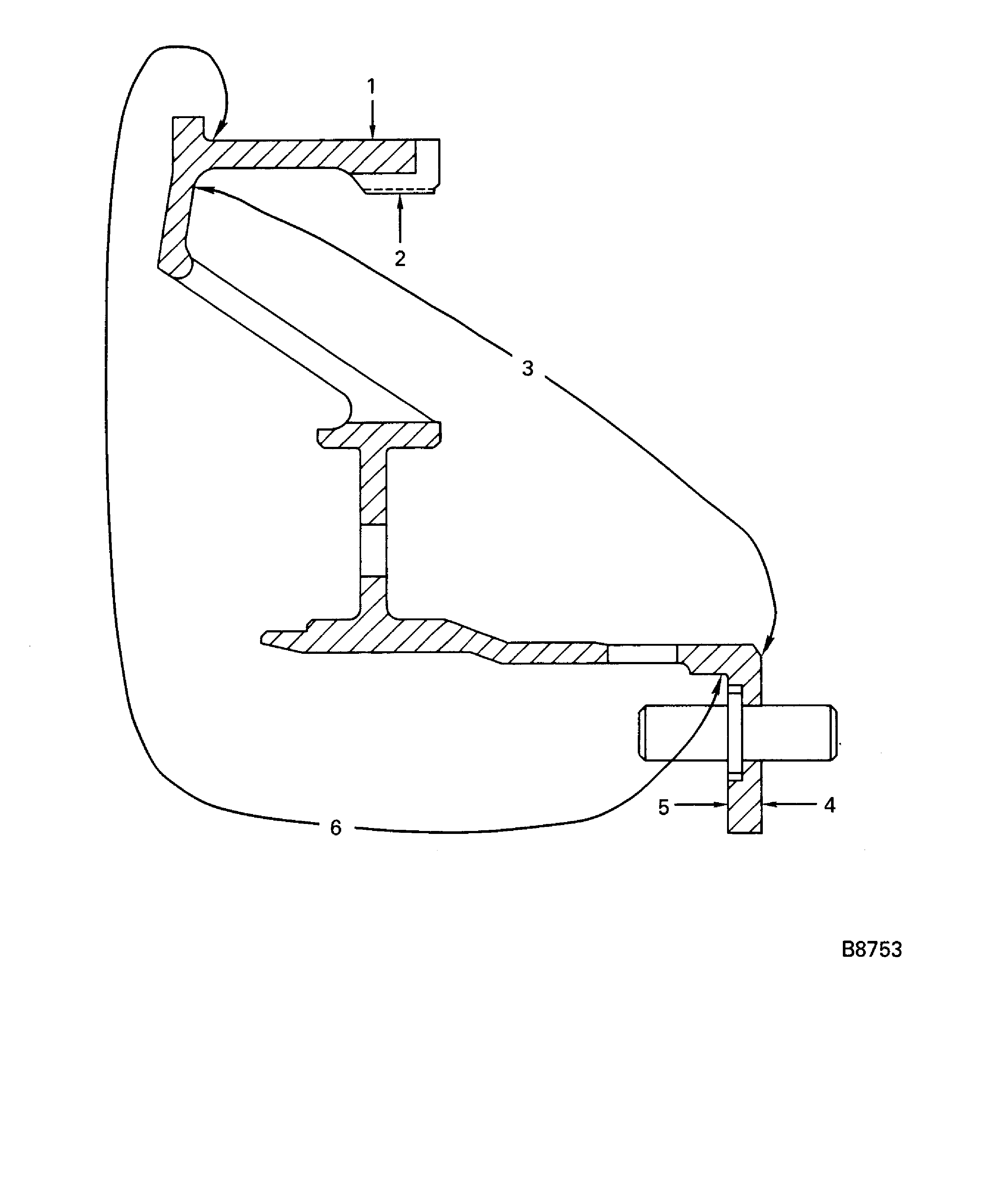

    3. Figure: No. 4 bearing support assembly blend repair locations

    No. 4 bearing support assembly blend repair locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted consumable materials and corrected the SPM reference. (EA13VC080)

Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:File
Tool Name:File
