TASK 72-42-31-300-008 No. 4 Bearing Support - Repair The Jackscrew Holes, Repair-008 (VRS3274)
General
Price and availability - refer to IAE
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Tap 0.250-28 UNJF-3B | LOCAL | Tap 0.250-28 UNJF-3B |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to: Figure
Use a Tap 0.250-28 UNJF-3B.
Tap to repair damaged threads in the jackscrew holes.
SUBTASK 72-42-31-350-055 Tap the Jackscrew Holes in the No. 4 Bearing Support Assembly
Refer to TASK 72-42-31-200-000.
Examine the jackscrew holes.
SUBTASK 72-42-31-220-060 Examine the No. 4 Bearing Support After Repair

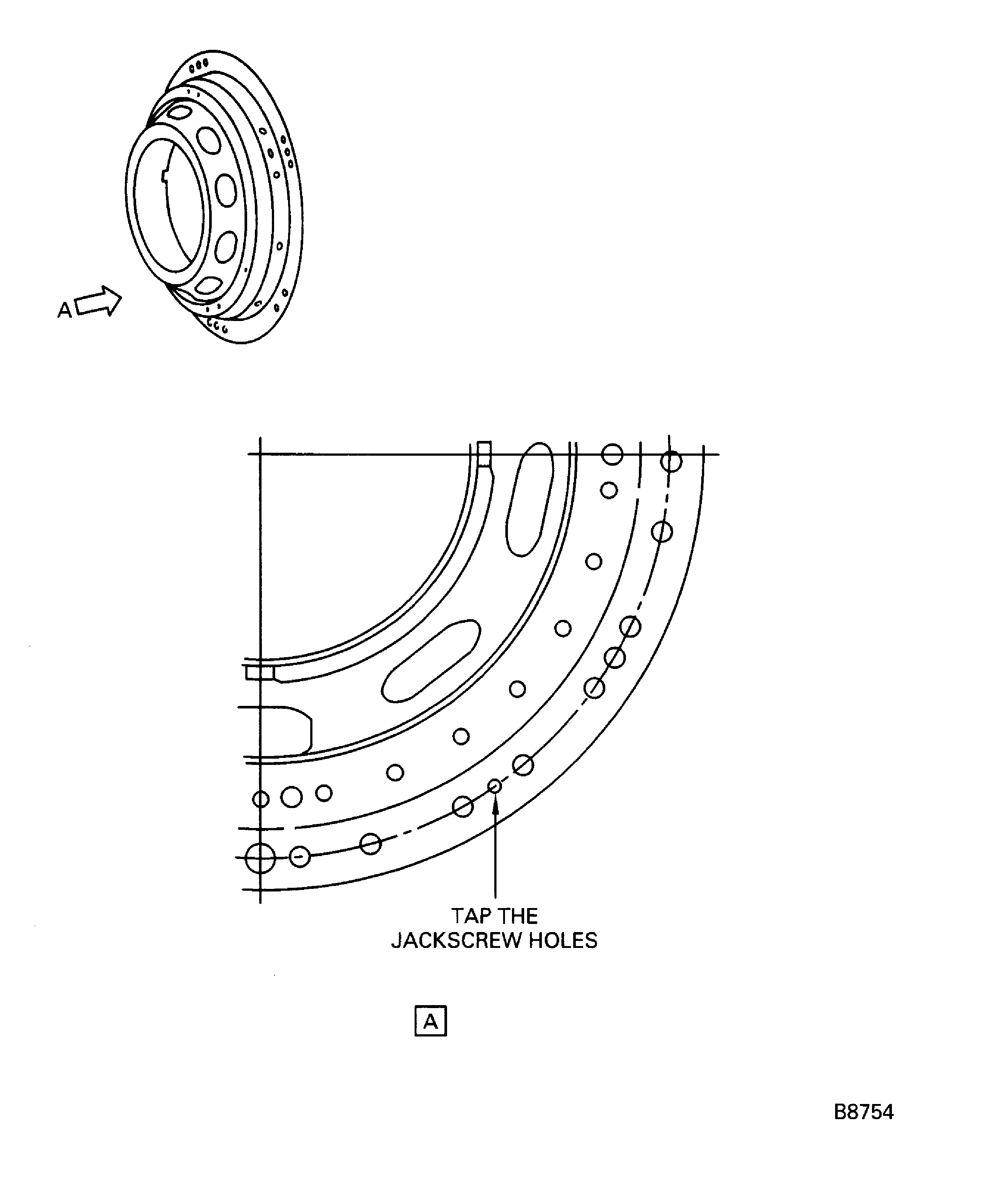

Figure: No. 4 bearing support assembly jackscrew hole repair
No. 4 bearing support assembly jackscrew hole repair
