TASK 72-42-32-300-001 No. 4 Bearing Retaining Nut - Replace The Silver Plate, Repair-001 (VRS3079)

DMC:V2500-A0-72-42-3200-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-32-300-001 No. 4 Bearing Retaining Nut - Replace The Silver Plate, Repair-001 (VRS3079)

Effectivity

FIG/ITEM PART NO.

01-020

2A0064

01-020

2A3956

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Bearing retaining nut

Corrosion and heat

resistant alloy

General

This repair must only be done when the instruction to do so is given in TASK 72-42-32 Inspection/Check.

The practices and processes refered to in the procedure by the TASK numbers are in the SPM.

Price and availability - none

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-32-330-051 Remove the Silver Plate from the Threads of the Bearing Retaining Nut

      1. Remove the silver plate from the threads of the retaining nut.

      1. Refer to Figure and the SPM TASK 70-33-55-330-501.

    2. SUBTASK 72-42-32-330-052 Apply the Silver Plate to the Threads of the Bearing Retaining Nut

      1. Apply the silver plate to the threads of the retaining nut.

      1. Apply silver plate between 0.0003 and 0.0006 in. (0.0077 and 0.0152 mm) in thickness.

        Refer to Figure and the SPM TASK 70-33-26-330-501.

    3. SUBTASK 72-42-32-220-053 Examine the Bearing Retaining Nut

      1. Examine the retaining nut after the silver plate.

      1. Refer to Figure.

    4. SUBTASK 72-42-32-350-053 Identify the Repair

      1. Make a mark VRS3079 adjacent to the part number.

      1. Make a permanent mark by SPM TASK 70-09-00-400-501.

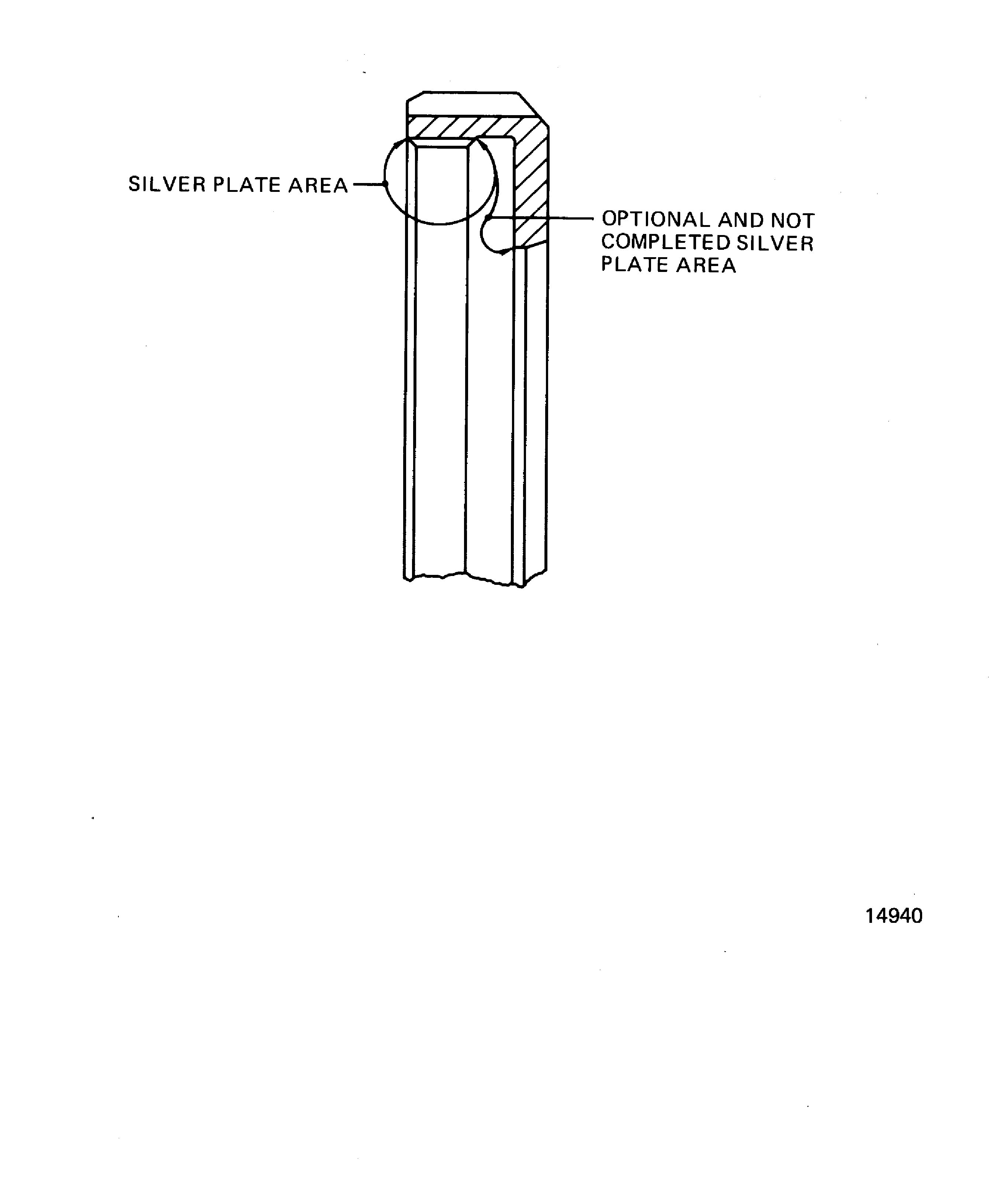

    5. Figure: Bearing Retaining Nut Repair Locations

    Bearing Retaining Nut Repair Locations

Requirements After Job Completion

Follow-On Conditions

NONE
