TASK 72-42-33-300-001 No. 4 Bearing Front Seal Support - Blend Repair, Repair-001 (VRS3065)
Material of component
IAE | ||
|---|---|---|
DESCRIPTION SYMBOL MATERIAL | ||
No. 4 bearing seal support | - | Titanium alloy |
assembly | ||
General
Price and availability - none
Preliminary Requirements
Pre-Conditions
| Action/Condition | Data Module/Technical Publication |
|---|---|
| Make sure that all the cleaning and inspection procedures are done before this repair. |
Support Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure and the SPM TASK 70-35-03-300-501.
Blend surface damage on the seal support assembly.
SUBTASK 72-42-33-350-062 Blend Surface Damage on the No. 4 Bearing Seal Support Assembly
CAUTION
DO NOT ATTEMPT TO BLEND REPAIR A CRACK INDICATION. BLENDING CAN CAUSE SMEARING OF SURFACE MATERIAL AND CAN AFFECT FPI RESULTS.Refer to Figure and Figure and TASK 72-42-33-200-000 (INSPECTION/CHECK-000).
Examine the No. 4 bearing seal support assembly after blend repair.
SUBTASK 72-42-33-220-086 Examine the Repair

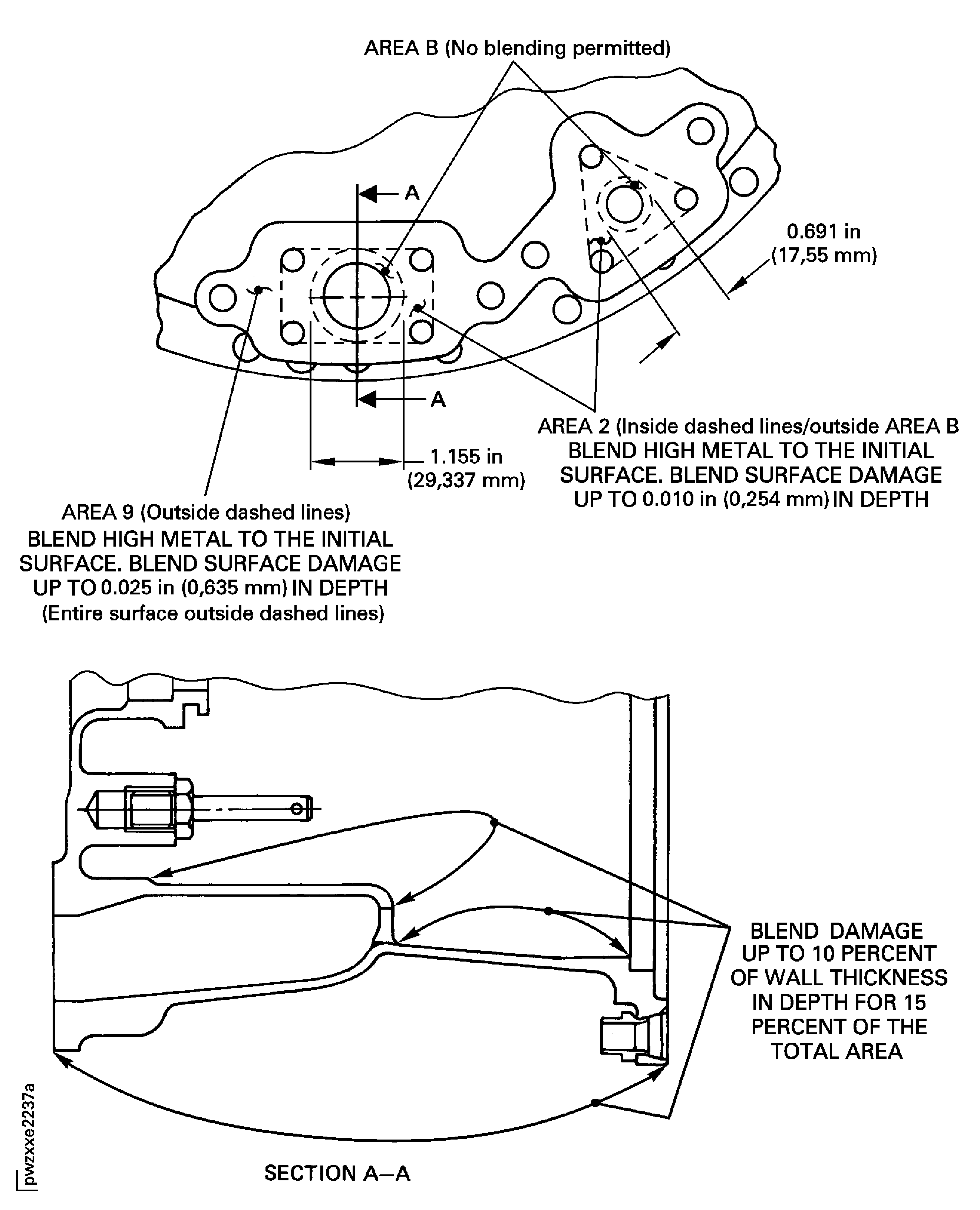

Figure: No. 4 bearing seal support assembly blend repair
Sheet 1

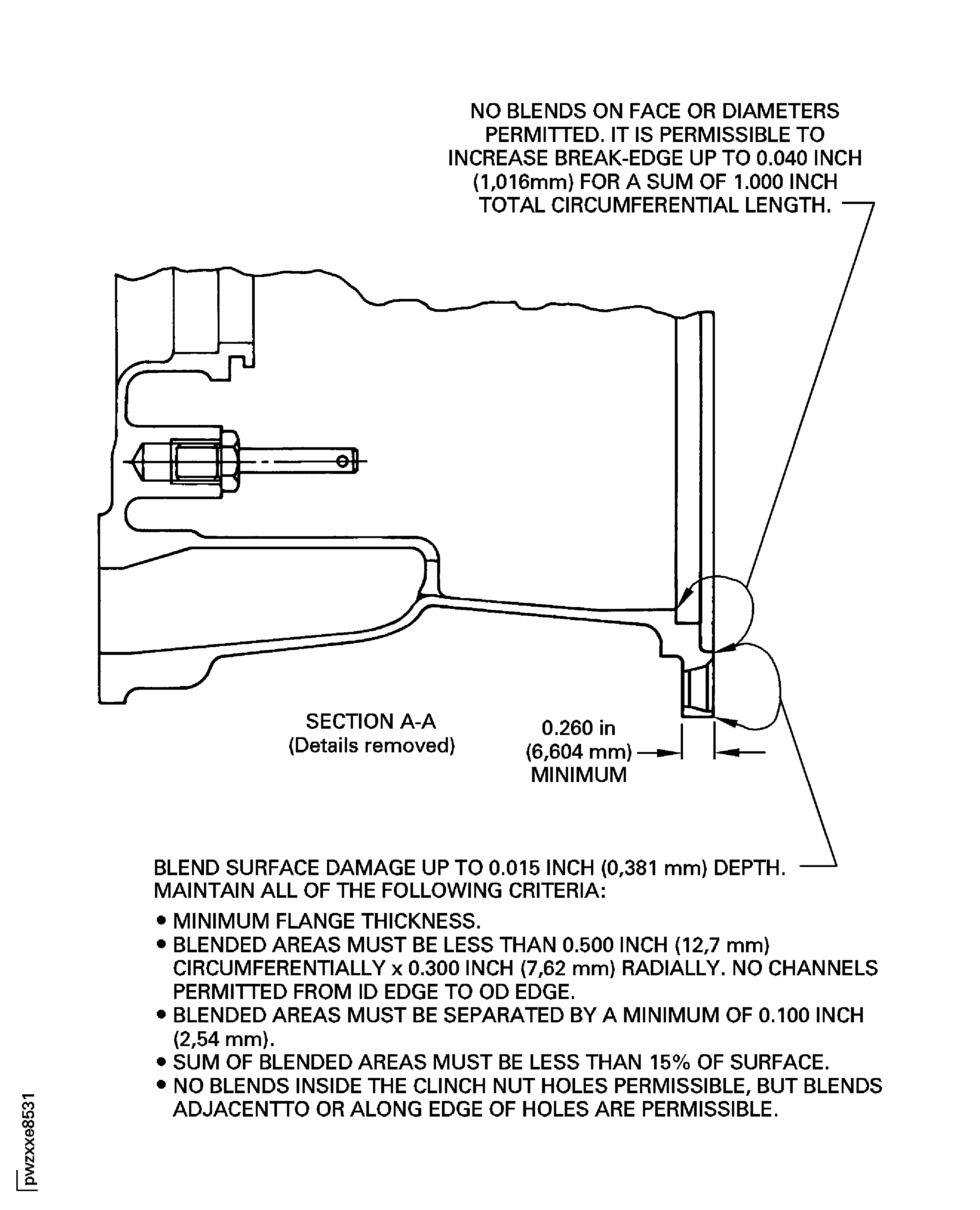

Figure: No. 4 bearing seal support assembly blend repair
Sheet 2
