TASK 72-42-33-300-009 No. 4 Bearing Front Seal Support - Replace The No. 4 Bearing Strainer Element, Repair-009 (VRS3427)
Material of component
IAE | ||
|---|---|---|
DESCRIPTION SYMBOL MATERIAL | ||
No. 4 bearing seal support | - | Titanium alloy |
No. 4 bearing strainer element | - | Nickel alloy |
General
None
Preliminary Requirements
Pre-Conditions
| Action/Condition | Data Module/Technical Publication |
|---|---|
| Make sure that all the cleaning and inspection procedures are done before this repair. |
Support Equipment
NONEConsumables, Materials and Expendables
NONESafety Requirements
NONEProcedure
Refer to Figure.
Remove the damaged strainer element.
SUBTASK 72-42-33-350-065 Remove the Damaged Strainer Element
Refer to Figure and TASK 72-42-33-200-000 (INSPECTION/CHECK-000).
Examine the No. 4 bearing seal support assembly for the correct installation of the strainer element.
SUBTASK 72-42-33-220-088 Examine the Repair

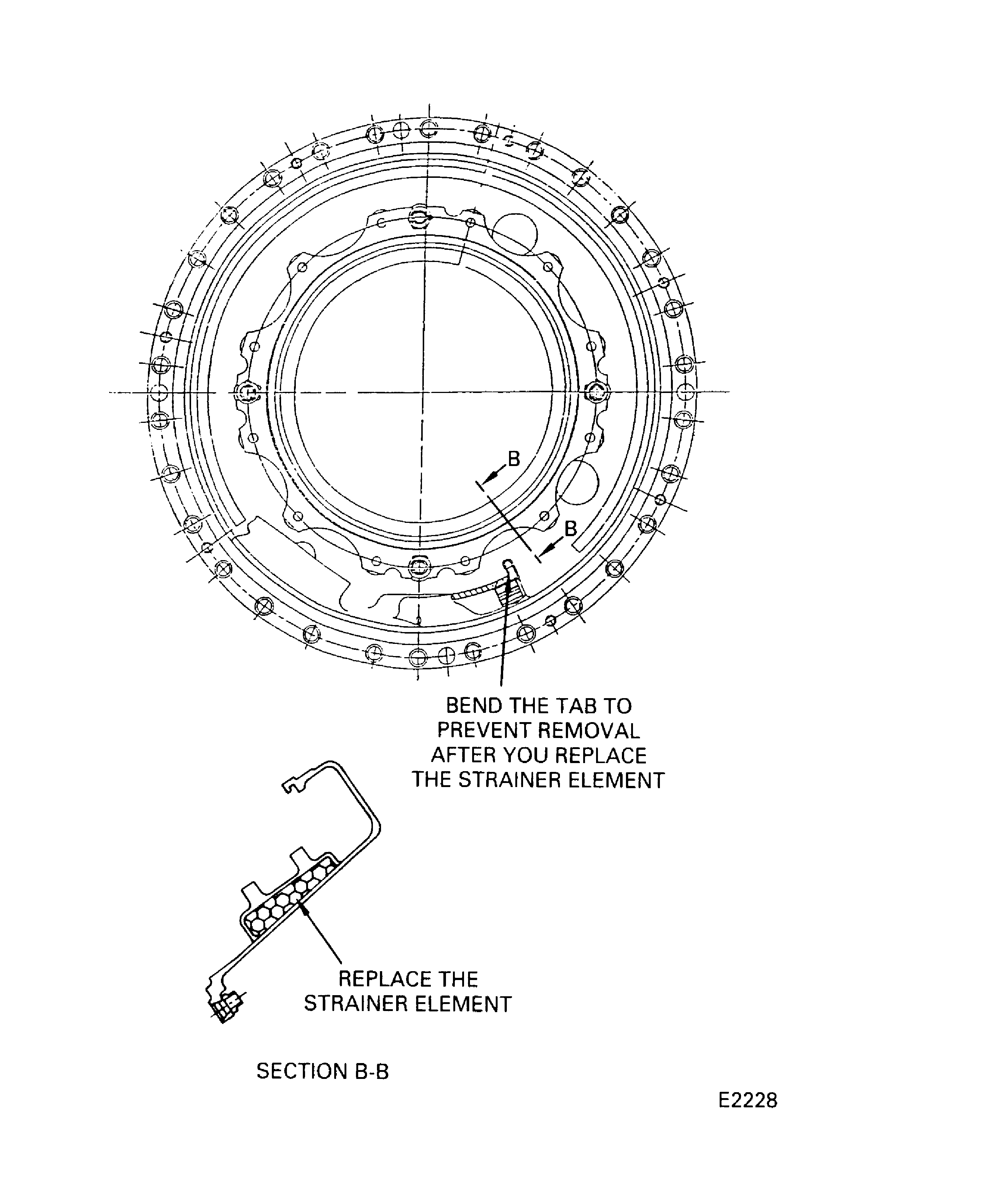

Figure: No. 4 bearing strainer element replacement
No. 4 bearing strainer element replacement
