DMC:V2500-A0-72-42-3500-00A-657A-CIssue No:001.00Issue Date:2013-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 72-42-35-300-003 No. 4 Bearing Front Cooling Duct - Repair The Stud Threads, Repair-003 (VRS3302)
General
Price and availability - refer to IAE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Die (0.190-32 UNJF-3A) | LOCAL | Die (0.190-32 UNJF-3A) |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to TASK 72-42-35-200-000 (INSPECTION-000).
Examine the cooling duct after repair.
SUBTASK 72-42-35-220-058 Examine the Repair

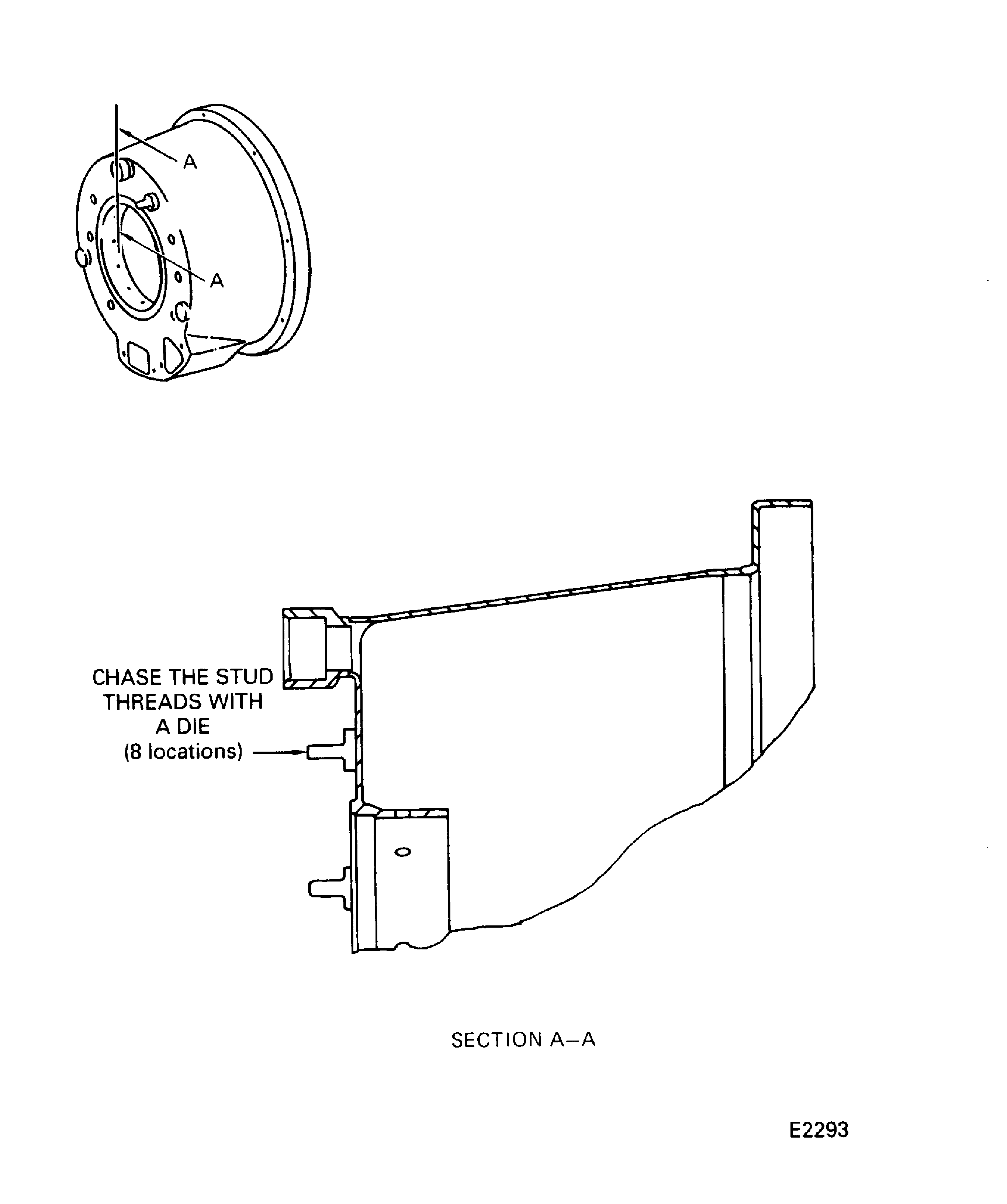

Figure: Chase the stud threads on the No. 4 bearing front cooling duct
Chase the stud threads on the No. 4 bearing front cooling duct
