TASK 72-42-60-040-001 Outer Combustion Chamber Assembly - Disassemble The Outer Combustion Chamber Assembly, Disassembly-001

DMC:V2500-A0-72-42-6000-00A-530A-B|Issue No:002.00|Issue Date:2015-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-60-040-001 Outer Combustion Chamber Assembly - Disassemble The Outer Combustion Chamber Assembly, Disassembly-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3P16240 Igniter guide segment wrench0AM53IAE 3P162401
IAE 3P16241 Ratchet wrench0AM53IAE 3P162411

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-081 PENCIL - METAL MARKING(HARD)86874CoMat 02-081

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-60-040-051 Remove the Combustion Chamber Liner Segments from the ID of the Outer Combustion Chamber Liner

      NOTE

      Mark the segments with CoMat 02-081 PENCIL - METAL MARKING(HARD) as they are removed so that they can be reassembled in their original positions.
      If a segment in Row 1 is obstructed by the bulkhead segment, refer to Repair VRS3092 TASK 72-42-61-300-004.

    1. Refer to Figure.

    2. Use IAE 3P16240 Igniter guide segment wrench 1 off to loosen the nuts at the igniter guides. Use IAE 3P16241 Ratchet wrench 1 off to loosen the nuts at all other locations.

    3. Remove the 10 washers (1), the 40 washers (3) and the 50 nuts (2) from the studs that attach the liner segments (9 and 10) to the combustion chamber outer liner. Remove the segments. Discard the nuts.

    4. Remove the washers (1 and 3) and the nuts (2) from the segments (6, 8 and 11). Remove the segments. Discard the nuts.

    5. Remove the washers (1 and 3) and the nuts (2) from the segments (7). Remove the segments. Discard the nuts.

    6. Remove the washers (1 and 3) and the nuts (2) from the segments (5). Remove the segments. Discard the nuts.

    7. Remove the washers (1 and 3) and the nuts (2) from the segments (4). Remove the segments. Discard the nuts.

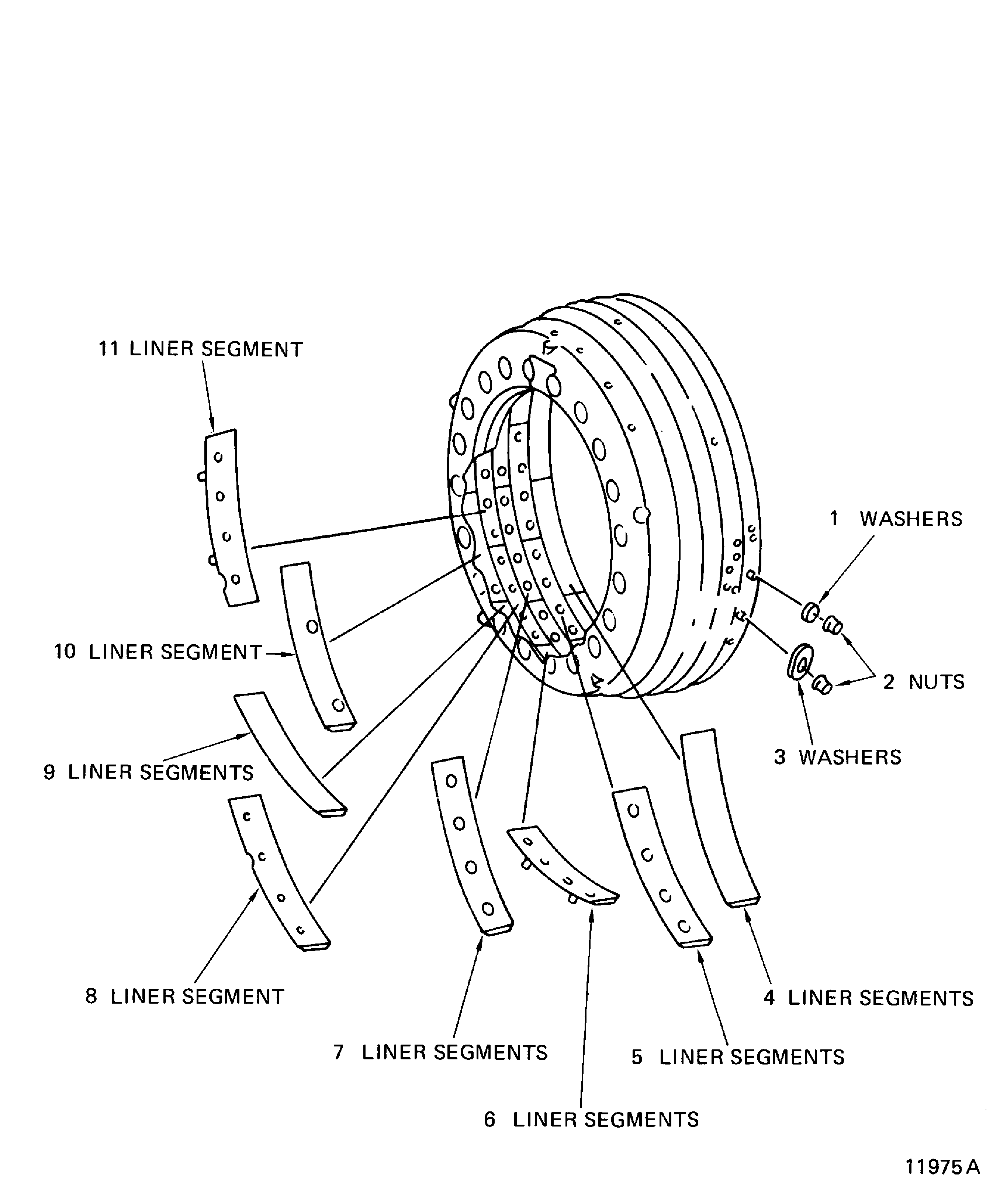

    2. Figure: Disassemble the outer combustion chamber assembly

    Disassemble the outer combustion chamber assembly
