TASK 72-43-12-300-001 No. 4 Bearing Seal Spacer - Nickel Plate Repair The Inside Diameter, Repair-001 (VRS3104)

DMC:V2500-A0-72-43-1200-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-43-12-300-001 No. 4 Bearing Seal Spacer - Nickel Plate Repair The Inside Diameter, Repair-001 (VRS3104)

Effectivity

FIG/ITEM PART NO.

01-010

2A0857

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

No.4 bearing seal spacer

-

AMS 5355

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
LatheLOCALLathe

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-43-12-325-051 Machine the Inside Diameter of the No. 4 Bearing Seal Spacer

    1. Refer to: Figure

      2. Machine the inside diameter with a lathe to remove wear indications.

      1. NOTE

        You can strip the plating if the inside diameter of the spacer was plated before. Refer to TASK 70-33-06-330-501.

        Machine the diameter to 5.139 to 5.151in. (130.53 to 130.84 mm). Hold to the minimum value. The part must be in a held condition. All dimensions apply when Surface G is flat by 0.001in. (0.025 mm) and Diameter F maintains a clearance envelope of 5.130in. (130.302 mm) in a free or held condition. Hold the spacer only on Surfaces G and H and Diameter F.

    2. SUBTASK 72-43-12-330-051 Nickel Plate the Inside Diameter of the No. 4 Bearing Seal Spacer

    1. Refer to: Figure

      2. Nickel plate the inside diameter.

      1. Refer to TASK 70-33-06-330-501.

        Make sure to apply nickel plate a sufficient thickness to permit finish machining. No overspray is permitted.

    3. SUBTASK 72-43-12-325-052 Machine the No. 4 Bearing Seal Spacer After Nickel Plate Repair

    1. Refer to: Figure

      2. Machine the inside diameter with a lathe after nickel plate.

      1. Machine the inside diameter to 5.131 to 5.133in. (130.328 to 130.378 mm) average diameter. The part must be in a held condition. All dimensions apply when Surface G is flat by 0.001in. (0.025 mm) and Diameter F maintains a clearance envelope of 5.130in. (130.302 mm) in a free or held condition. Hold the spacer only on Surfaces G and H and Diameter F.

    4. SUBTASK 72-43-12-220-055 Examine the No. 4 Bearing Seal Spacer After Nickel Plate Repair

      1. Examine the seal spacer after nickel plate repair.

      1. Refer to Figureand TASK 72-43-12-200-000 (INSPECTION/CHECK-000).

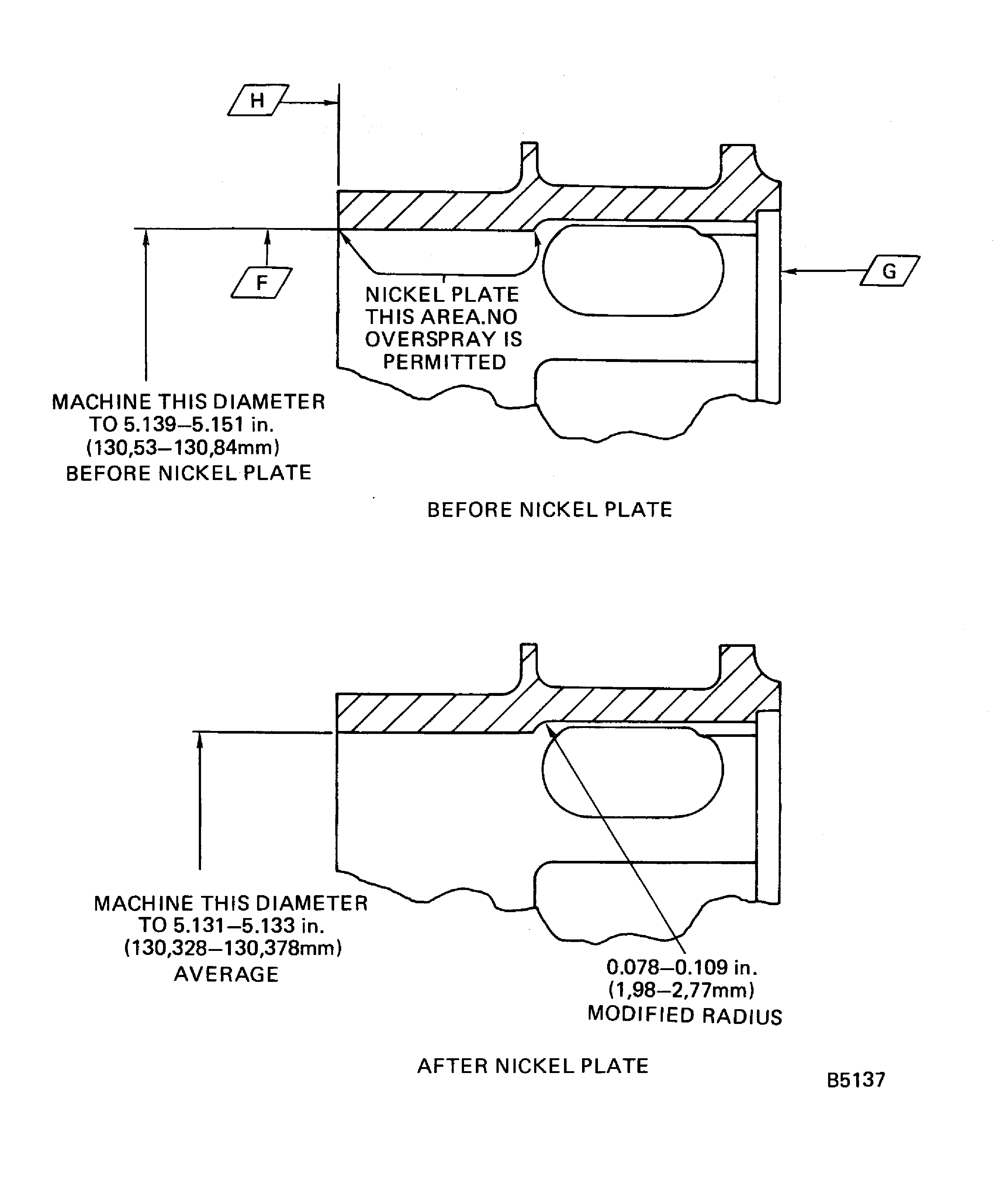

    5. Figure: No.4 bearing seal spacer nickel plate repair

    No.4 bearing seal spacer nickel plate repair
