TASK 72-43-30-300-003 No. 4 Bearing Rear Cooling Duct - Repair The Stud Threads, Repair-003 (VRS3429)
Effectivity
FIG/ITEM | PART NO. |
|---|---|
01-010 | 2A0891-01 |
01-010 | 2A0891-001 |
01-010 | 2A1205-01 |
01-010 | 2A1205-001 |
01-010 | 2A3078-01 |
01-010 | 2A3808-01 |
General
Price and availability - Refer to IAE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Die (0.190-32 UNJF-3A) | LOCAL | Die (0.190-32 UNJF-3A) |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to TASK 72-43-30-200-000 (INSPECTION/CHECK-000).
Examine the cooling duct after repair.
SUBTASK 72-43-30-220-064 Examine the Repair

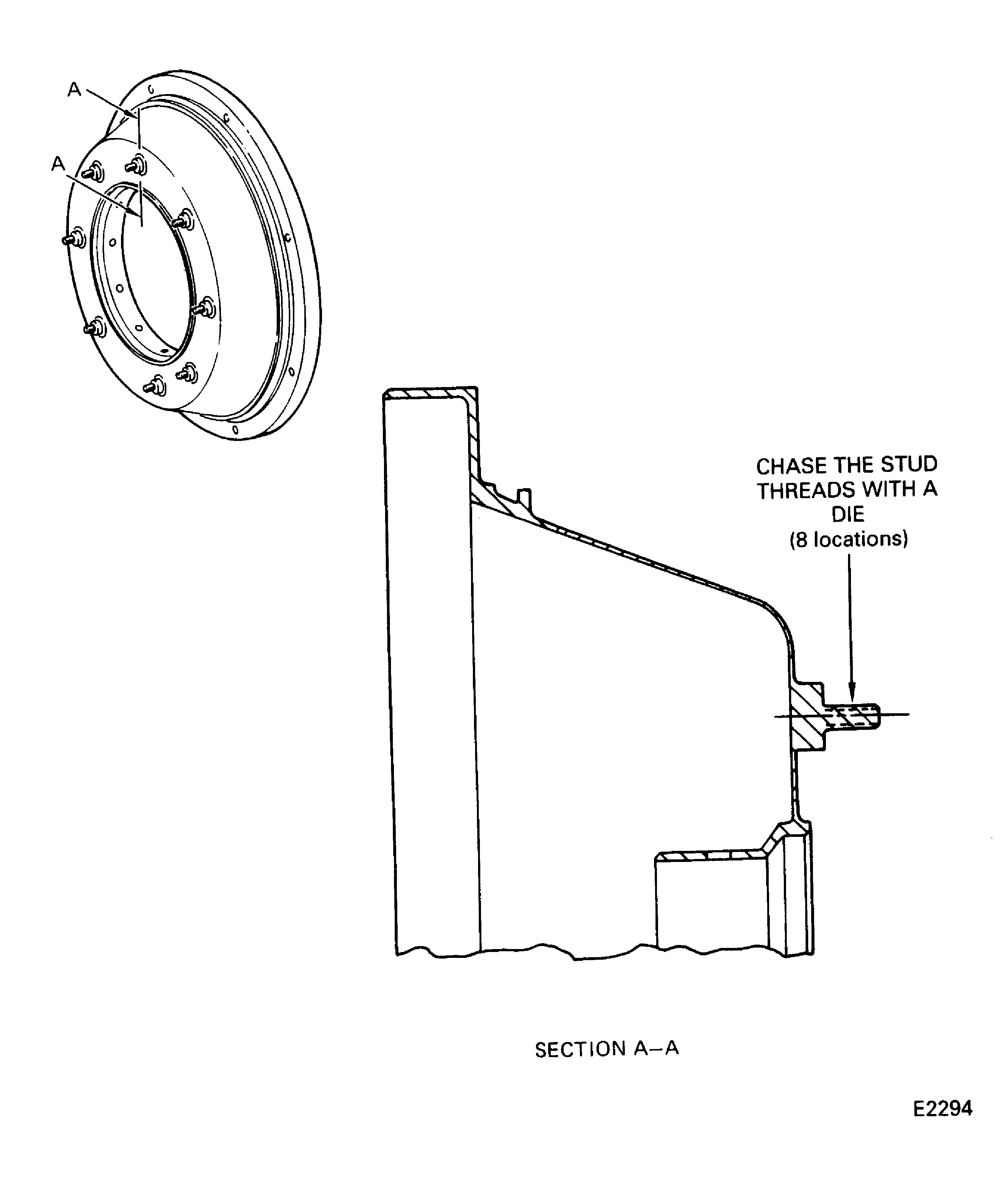

Figure: Chase the stud threads on the No. 4 bearing rear cooling duct
Chase the stud threads on the No. 4 bearing rear cooling duct
