TASK 72-44-10-040-001 HPT Stage 1 Support Assembly And Support Seal - Disassemble The Support Assembly, Disassembly-001

DMC:V2500-A0-72-44-1000-00A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-44-10-040-001 HPT Stage 1 Support Assembly And Support Seal - Disassemble The Support Assembly, Disassembly-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
TorchLOCALTorch

Mapp/propane or Air/acetylene

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-44-10-040-051 Remove the Stage 1 HPT Seal

    1. WARNING

      WEAR PROTECTIVE CLOTHES TO PREVENT INJURY TO PERSONS WHEN REMOVING THE SEAL.

      CAUTION

      DO NOT USE AN OXYGEN/ACETYLENE TORCH. THE FLAME TEMPERATURE IS TOO HIGH AND CAN CAUSE LOCAL DISTORTION ON THE SEAL.
      DO NOT HEAT THE SEAL IN ONE SPOT. THIS COULD CAUSE DISTORTION TO THE SEAL.

      NOTE

      The stage 1 HPT support assembly must be examined before disassembly.

      Refer to Figure.

    2. Position the stage 1 HPT support assembly on a bench with the center flange down.

    3. Heat the seal symmetrical to expand the seal correctly. Use a Torch.

    4. Heat the seal until you can remove the seal with a pry bar when you use little or no force.

    5. Remove the seal.

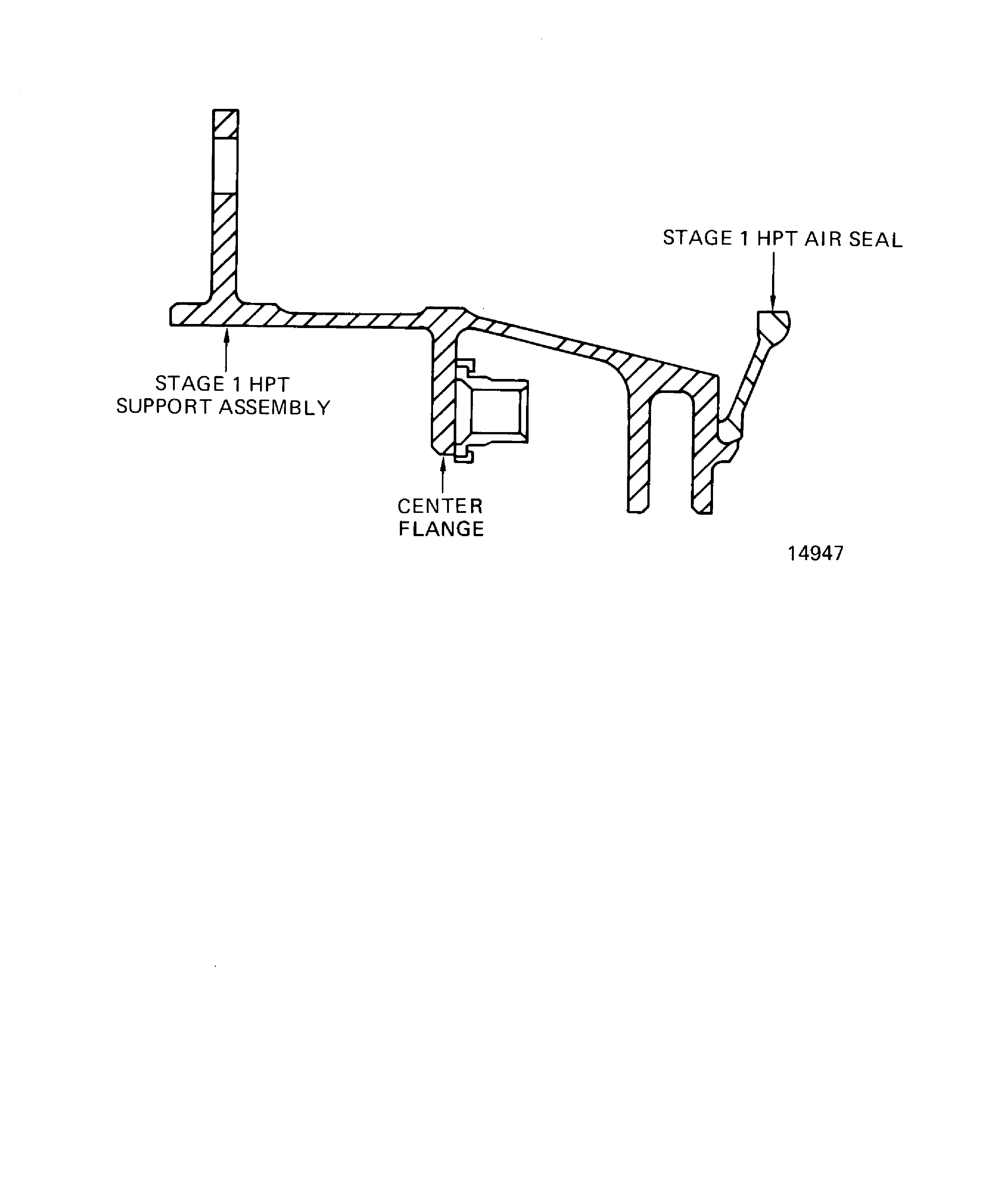

    2. Figure: Remove the stage 1 HPT seal

    Remove the stage 1 HPT seal

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Torch
Tool Name:Torch
