TASK 72-44-10-440-001 HPT Stage 1 Support Assembly And Support Seal - Assemble The Support Assembly, Assembly-001

DMC:V2500-A0-72-44-1000-00A-710A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-44-10-440-001 HPT Stage 1 Support Assembly And Support Seal - Assemble The Support Assembly, Assembly-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
OvenLOCALOven

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-44-10-440-051 Install the Stage 1 HPT Seal

    1. WARNING

      WEAR PROTECTIVE GLOVES WHEN YOU INSTALL THE SEAL TO PREVENT INJURY TO PERSONS.

      Refer to Figure

    2. Heat the seal HPT Stage 1 Support Assembly And Support Seal (72-44-10, 01-060) in an oven until the seal temperature is 350 deg F (176.7 deg C).

    3. Position the stage 1 HPT support assembly HPT Stage 1 Support Assembly And Support Seal (72-44-10, 01-010) on a bench with the center flange down.

    4. Remove the seal from the oven.

    5. Install the seal with the small inner diameter down on the support assembly.

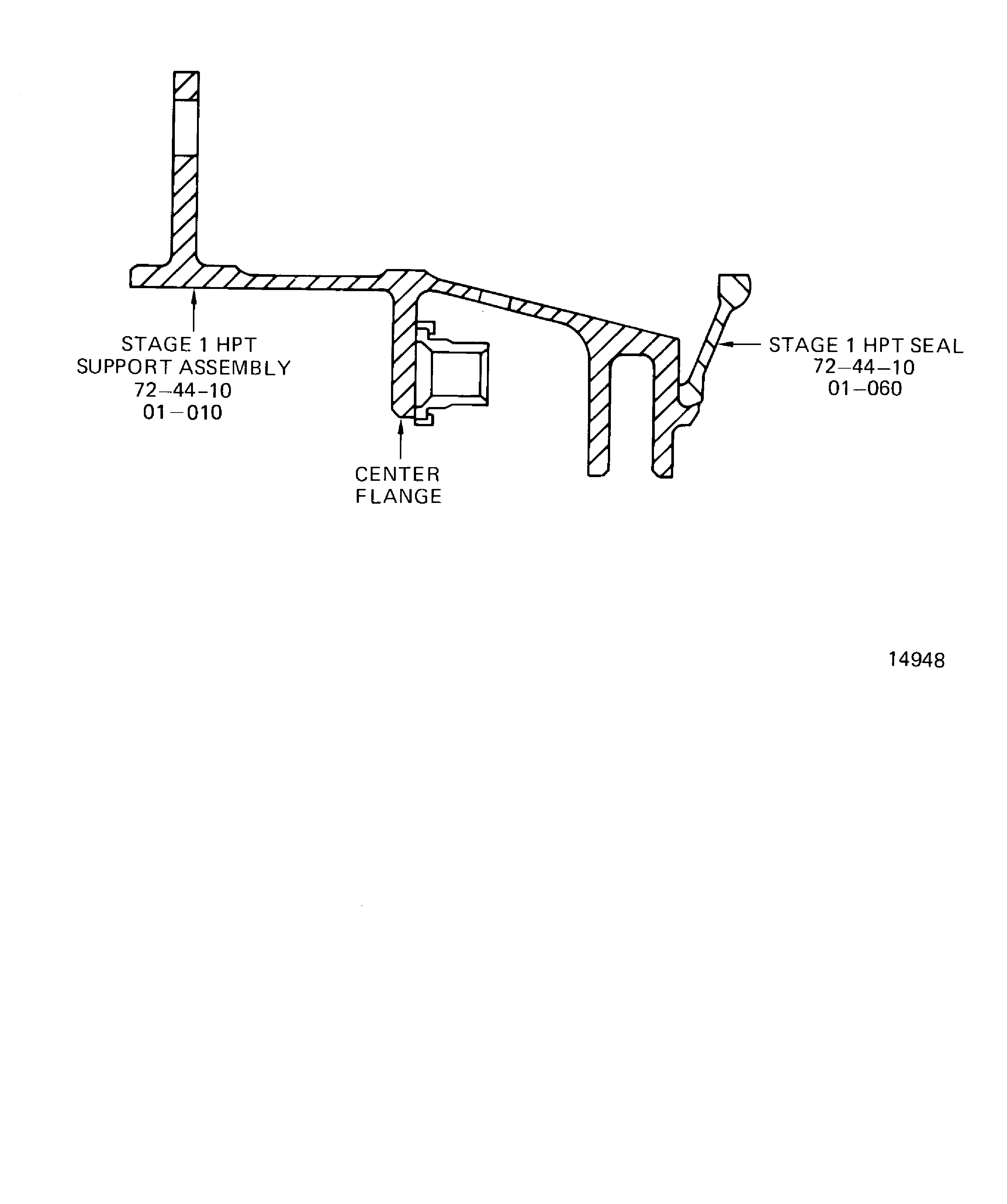

    2. Figure: Install the stage 1 HPT seal

    Install the stage 1 HPT seal

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Oven
Tool Name:Oven
