TASK 72-44-20-300-032 HPT Stage 1 Vane - Repair Plugged Airfoil And Platform Cooling Air Holes, Repair-032 (VRS3609)

DMC:V2500-A0-72-44-2000-04A-970A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-44-20-300-032 HPT Stage 1 Vane - Repair Plugged Airfoil And Platform Cooling Air Holes, Repair-032 (VRS3609)

Effectivity

FIG/ITEM

PART NO.

01-240

2A5591

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 1 HPT Vane Cluster Assembly

-

Contact approved source

General

Refer to Figure or repair location

The practices and processes referred to in the procedure by the TASK number are in the SPM

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. Repair Facilities

    1. The Source Demonstration requirements of this repair mean that any facility not authorized to accomplish this repair either utilize the Authorized Repair Vendors listed below or contact IAE Manager Maintenance Operations to determine if a qualification program can be initiated at their facility.

      International Aero Engines, AG
      400 Main Street
      M/S 121-10
      East Hartford, CT 06108
      USA
      Attn: Manager Technical Services

    2. Authorized repair vendors for Repair VRS3609 are listed below:

      Pratt and Whitney Engine Services
      Airfoil Repair Operations
      415 Washington Avenue
      North Haven, CT 06473 USA

    3. The designation by IAE of an authorized vendor indicates that the repair vendor has demonstrated the necessary capability to enable it to carry out the listed repair work. However, IAE makes no warranties or representations concerning the qualifications or quality standards of the repair vendors to carry out the repair work and accepts no responsibility whatsoever for any work that may be carried out by a repair vendor, other then when IAE is listed as the repair vendor. Authorized repair vendors do not act as agents or representatives of IAE

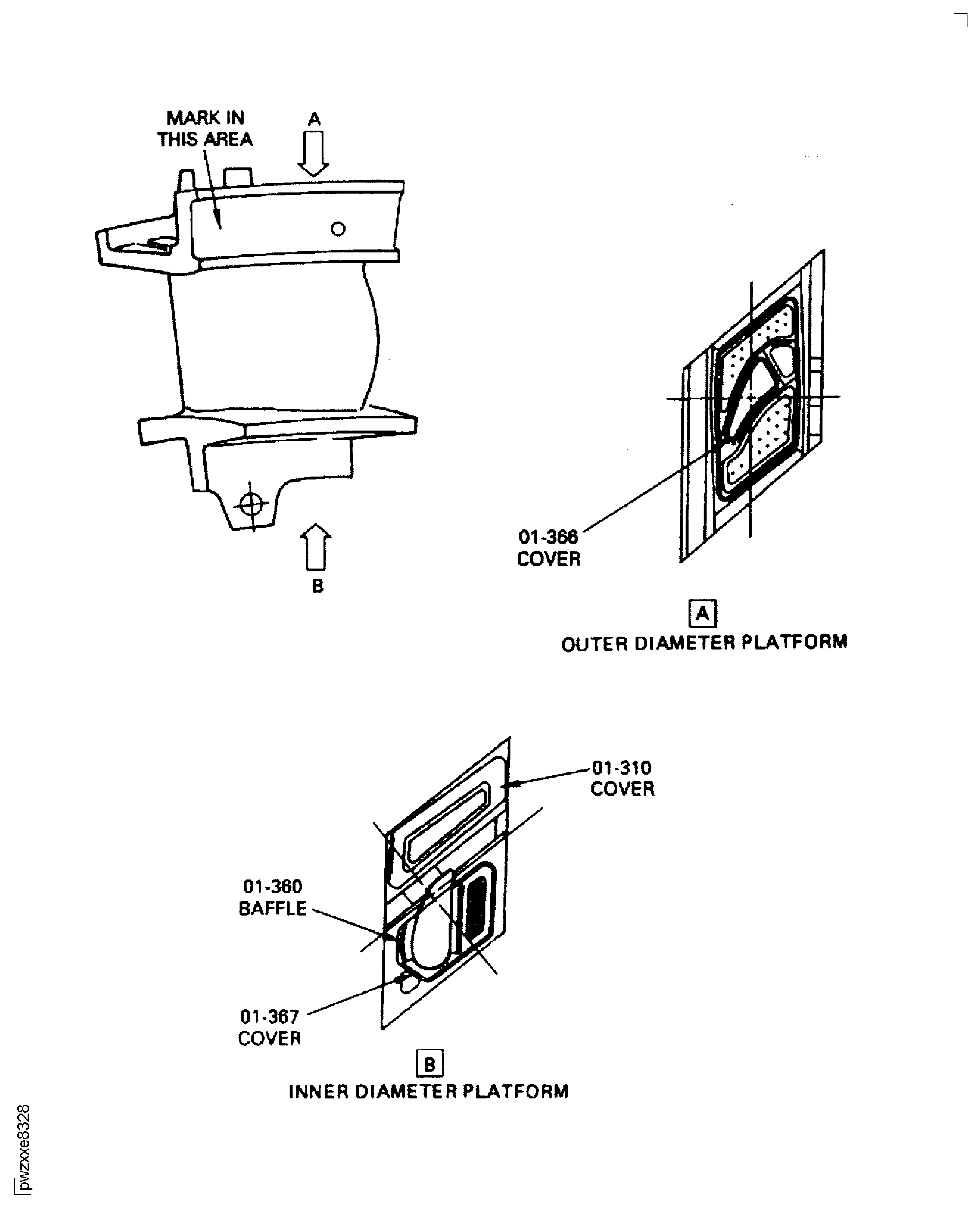

    2. Figure: Stage 1 HPT Vane Assembly Cooling Air Holes

    Stage 1 HPT Vane Assembly Cooling Air Holes

Requirements After Job Completion

Follow-On Conditions

NONE
