TASK 72-44-30-040-001 Inner Combustion Chamber Assembly - Disassemble The Inner Combustion Chamber Assembly, Assembly-001

DMC:V2500-A0-72-44-3000-00A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-44-30-040-001 Inner Combustion Chamber Assembly - Disassemble The Inner Combustion Chamber Assembly, Assembly-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-081 PENCIL - METAL MARKING(HARD)86874CoMat 02-081

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-44-30-040-051 Remove the Combustion Chamber Liner Segments from the Outer Diameter of the Inner Combustion Chamber Liner

      NOTE

      Mark the segments with CoMat 02-081 PENCIL - METAL MARKING(HARD) as they are removed so that they can be reassembled in their original positions.
      If more than 80 lbfin (9.04 Nm) was applied to a stud, fluorescent penetrant inspect the stud threads. Refer to the SPM TASK 70-23-02-230-501. Replace segments if there are cracks in the stud threads. Refer to Repair VRS3173 TASK 72-44-30-300-001.

    1. Refer to: Figure

    2. Remove the 10 washers (3), the 40 washers (4) and the 50 nuts (2) from the studs that attach the liner segments (5) to the combustion chamber inner liner. Remove the segments. Discard the nuts.

    3. Remove the washers (3 and 4) and the nuts (2) from the segments (6). Remove the segments. Discard the nuts.

    4. Remove the washers (3 and 4) and the nuts (2) from the segments (7). Remove the segments. Discard the nuts.

    5. Remove the washers (3 and 4) and the nuts (2) from the segments (8). Remove the segments. Discard the nuts.

    6. Remove the washers (3 and 4) and the nuts (2) from the segments (1). Remove the segments. Discard the nuts.

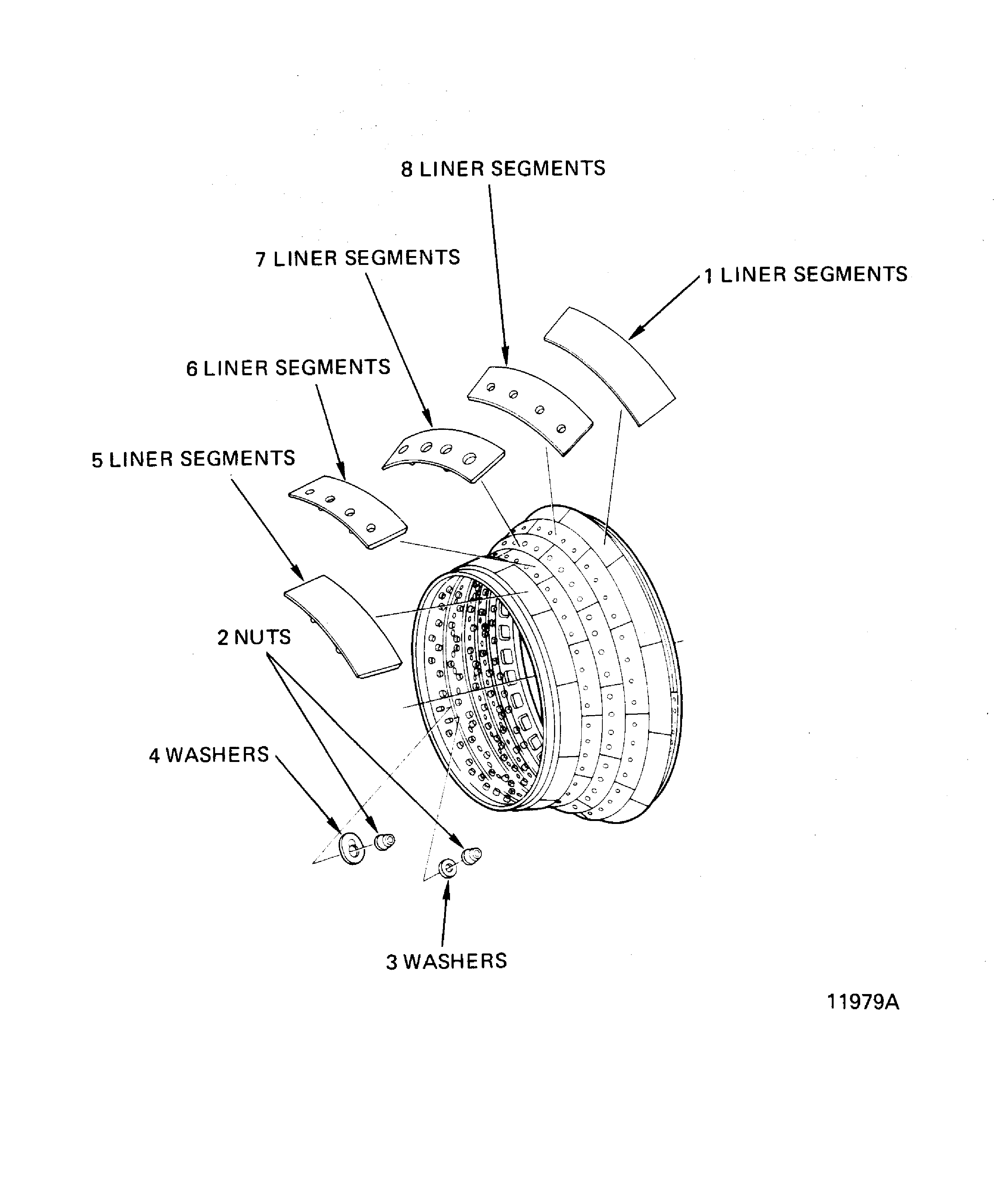

    2. Figure: Disassemble the inner combustion chamber assembly

    Disassemble the inner combustion chamber assembly

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:86874
Enterprise Name:SANFORD CORPORATION
BU Name:SANFORD CORPORATION
Street:2711 WASHINGTON BLVD
City:BELLWOOD
State:IL
Zip Code:60104
Country:USA
Phone Number:1-708-547-6650, 1-800-323-0749
Fax Number:1-708-547-6719, 1-800-457-9208
Internet:www.sanfordcorp.com
Manufacturer Code:86874
Supply Number:CoMat 02-081
Type:sp01
Supply Short Name:CoMat 02-081 PENCIL - METAL MARKING (HARD)
Supply Name:CoMat 02-081 PENCIL - METAL MARKING(HARD)
Specification Groups:
Doc NumberType
PMC 4059-7PRISMACOLOR VERITHIN NO.753 or PRISMACOLOR THICK LEAD 949
Suppliers:
ManufacturerRemarks
86874
