TASK 72-44-30-300-015 Inner Combustion Chamber Liner - Size or Roll To Restore The Front Outside Seal Diameter, Repair-015 (VRS3057)

DMC:V2500-A0-72-44-3001-00B-271A-C|Issue No:002.00|Issue Date:2019-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

2A0549-01 2A2722-01 2A2838-01 2A3344-001 2A3344-002 2A3344-0032A3344-004 2A3344-005 2A3344-006 2A3344-007 2A3344-01 2A3351-003 2A3351-0042A3351-01 2A4283-01 2A4311-01 2A4313-01 2A4315-001 2A4315-01

Common Information

TASK 72-44-30-300-015 Inner Combustion Chamber Liner - Size or Roll To Restore The Front Outside Seal Diameter, Repair-015 (VRS3057)

Effectivity

FIG/ITEM

PART NO.

01-401

2A0549-01

01-401

2A2722-01

01-401

2A2838-01

01-401

2A3344-01

01-401

2A3344-001

01-401

2A3344-002

01-401

2A3344-003

01-401

2A3344-004

01-401

2A3344-005

01-401

2A3344-006

01-401

2A3344-007

01-401

2A3351-01

01-401

2A3351-003

01-401

2A3351-004

01-401

2A4283-01

01-401

2A4311-01

01-401

2A4313-01

01-401

2A4315-01

01-401

2A4315-001

01-420

2A2718-01

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Combustion chamber inner liner

-

Wrought non-hardenable

nickel base alloy

General

Price and availability - refer to IAE.

The practices and processes referred to in the procedure by the TASK number are in SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Pneumatic or electric nut splitterLOCAL
IAE 3P16238 Angle box wrench0AM53IAE 3P16238
IAE 3P16239 Ratchet wrench0AM53IAE 3P16239

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER53012CoMat 07-175
CoMat 10-077 APPROVED ENGINE OILSX333XCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
NutLOCAL4W0001As

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-44-30-350-080 Remove the Liner Segments in Rows 1, 2 and 5 from the Combustion Chamber Inner Liner

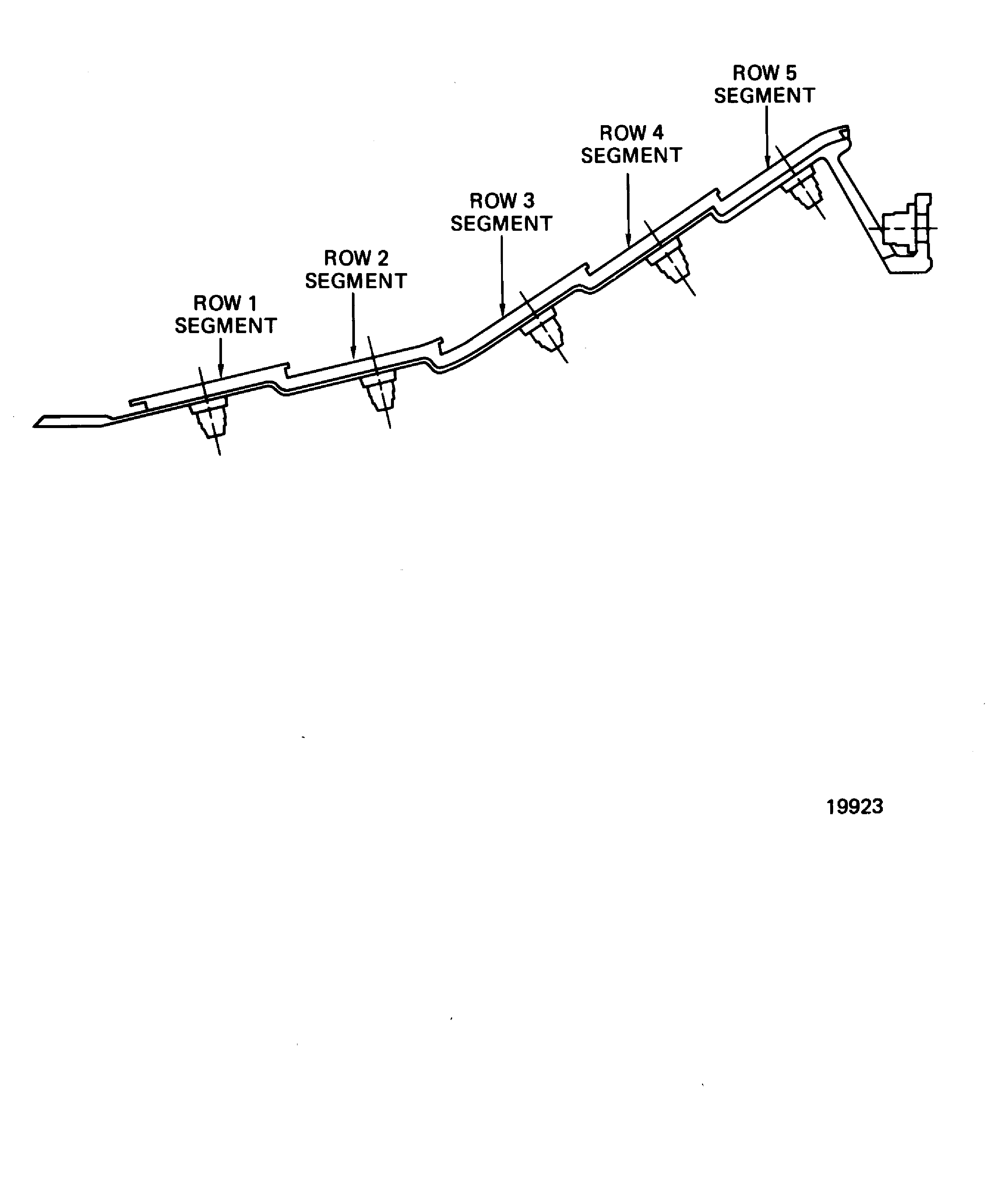

    1. Refer to Figure.

      2. Loosen the liner segments in rows 3 and 4 if necessary. Remove and discard the nuts.

      1. You can use a pneumatic or electric nut splitter to remove the nuts instead of a breakaway torque measurement.

    3. Remove the nuts and the liner segments in rows 1, 2 and 5. Discard the nuts.

    2. SUBTASK 72-44-30-350-081-001 Size to Restore the Front Outside Seal Diameter of the Combustion Chamber Inner Liner

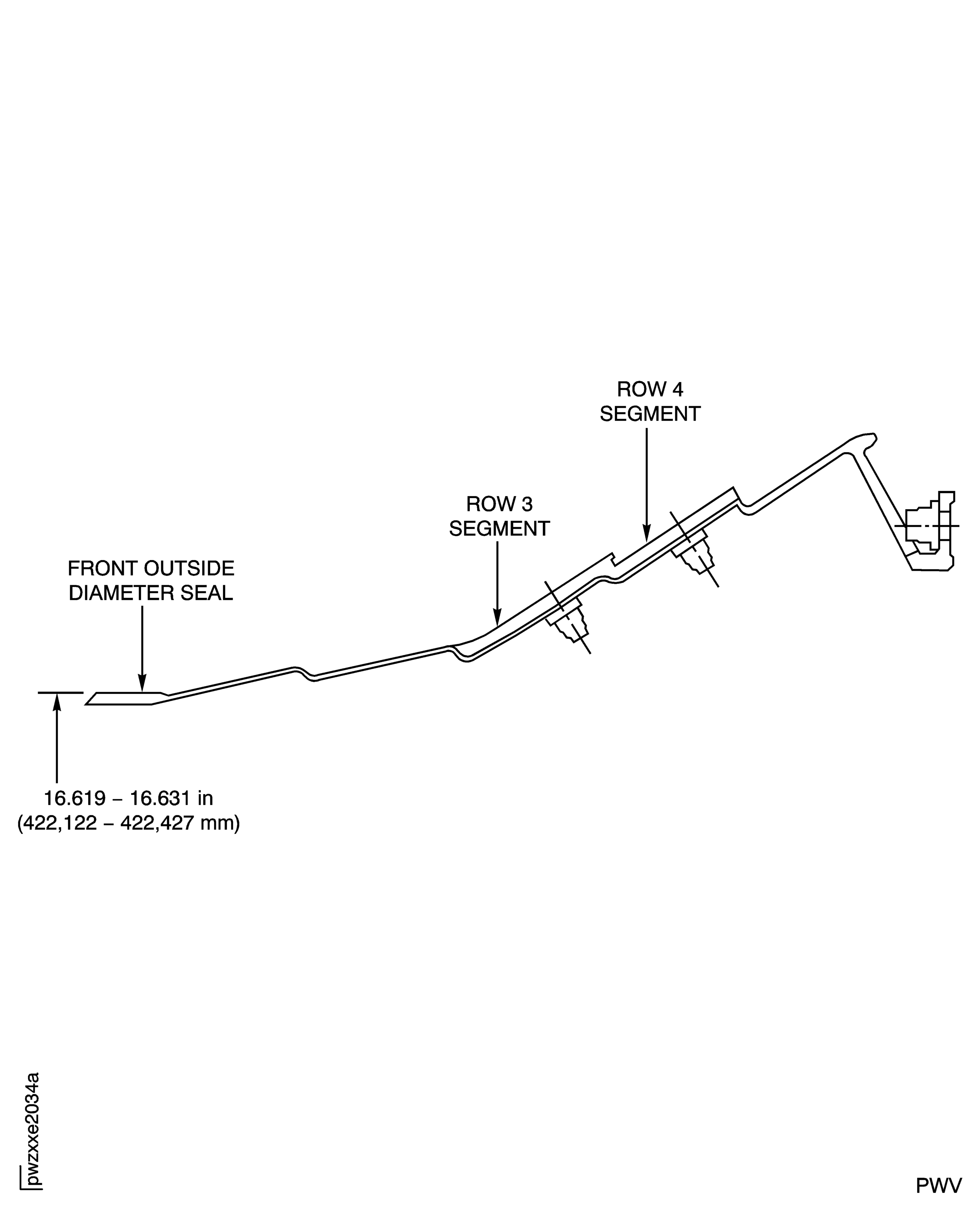

    1. Refer to Figure.

      2. Use sizing clusters in a sizer/shrinker to form a rear ring to the diameter.

      1. Resize the diameter to 16.619 to 16.631 in. (422.12 to 422.43 mm).

    3. SUBTASK 72-44-30-350-082-002 Roll to Restore the Front Outside Diameter Seal Diameter of the Combustion Chamber Inner Liner

    1. Refer to Figure.

      2. Use a rolling tool in a vertical turret lathe to roll the diameter of the inner liner.

      1. Roll the diameter to 16.619 to 16.631 in. (422.12 to 422.43 mm).

    4. SUBTASK 72-44-30-230-054 Examine the Shell and the Weld after Sizing or Rolling

      1. Locally fluorescent penetrant inspect the shell and the weld after sizing is completed.

    5. SUBTASK 72-44-30-220-085 Examine the Front Outside Seal Diameter of the Combustion Chamber Inner Liner

      1. Examine the front outside seal diameter for the coating after sizing or rolling.

    6. SUBTASK 72-44-30-350-083 Install the Liner Segments

    1. Refer to Figure and Figure.

      2. CAUTION

        DO NOT USE COMAT 10-049 MOLYBDENUM DISULFIDE TO LUBRICATE THE NUT THREADS. MOLYBDENUM DISULFIDE CAN CAUSE CORROSION.

        CAUTION

        DO NOT USE ENGINE OIL AND COATING CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER ON THE SAME STUDS.

        CAUTION

        IT IS REQUIRED TO USE COATING CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER ON ROW 1 LINER SEGMENTS AFTER FINAL TORQUE THE NUTS. DO NOT USE COATING CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER ON ALL THE STUD THREADS DURING INSTALLATION.

        CAUTION

        COATING CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER IS OPTIONAL ON OTHER LINER SEGMENTS (ROWS 2 THRU 5). HOWEVER, DO NOT USE COATING CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER IF ENGINE OIL WAS ALREADY APPLIED ON THE STUD THREADS.

        CAUTION

        IF COATING CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER WAS USED IN LINER SEGMENTS, LIGHTLY USE A STAINLESS STEEL WIRE BRUSH TO REMOVE LOOSE DEBRIS BEFORE NEW COATING.

        Install the replacement liner segments from rear-most row to front most row with washers and new nuts. Replace all loosened or removed nuts with new nuts.

      1. Install oval-shaped washers with dimple facing to the liner shell and seated in slot.

        If engine oil is preferred on Rows 2 thru 5 liner segments, apply engine oil on the stud threads. Do not use engine oil on Row 1 liner segment stud threads.

        Install the nuts with IAE 3P16238 Angle box wrench (angle box wrench) 1 off.

        Torque the segment's center stud first followed by the two adjacent studs then the segment's two outer-most studs. Tighten nuts down on the stud between 40 to 50 lbfin (4.519 to 5.649 Nm) of torque and make sure that the washer is not free to move. Back the nut off one-half turn, then use IAE 3P16239 Ratchet wrench (ratchet wrench) 1 off to torque the nut to 25 to 35 lbfin (2.824 to 3.954 Nm).

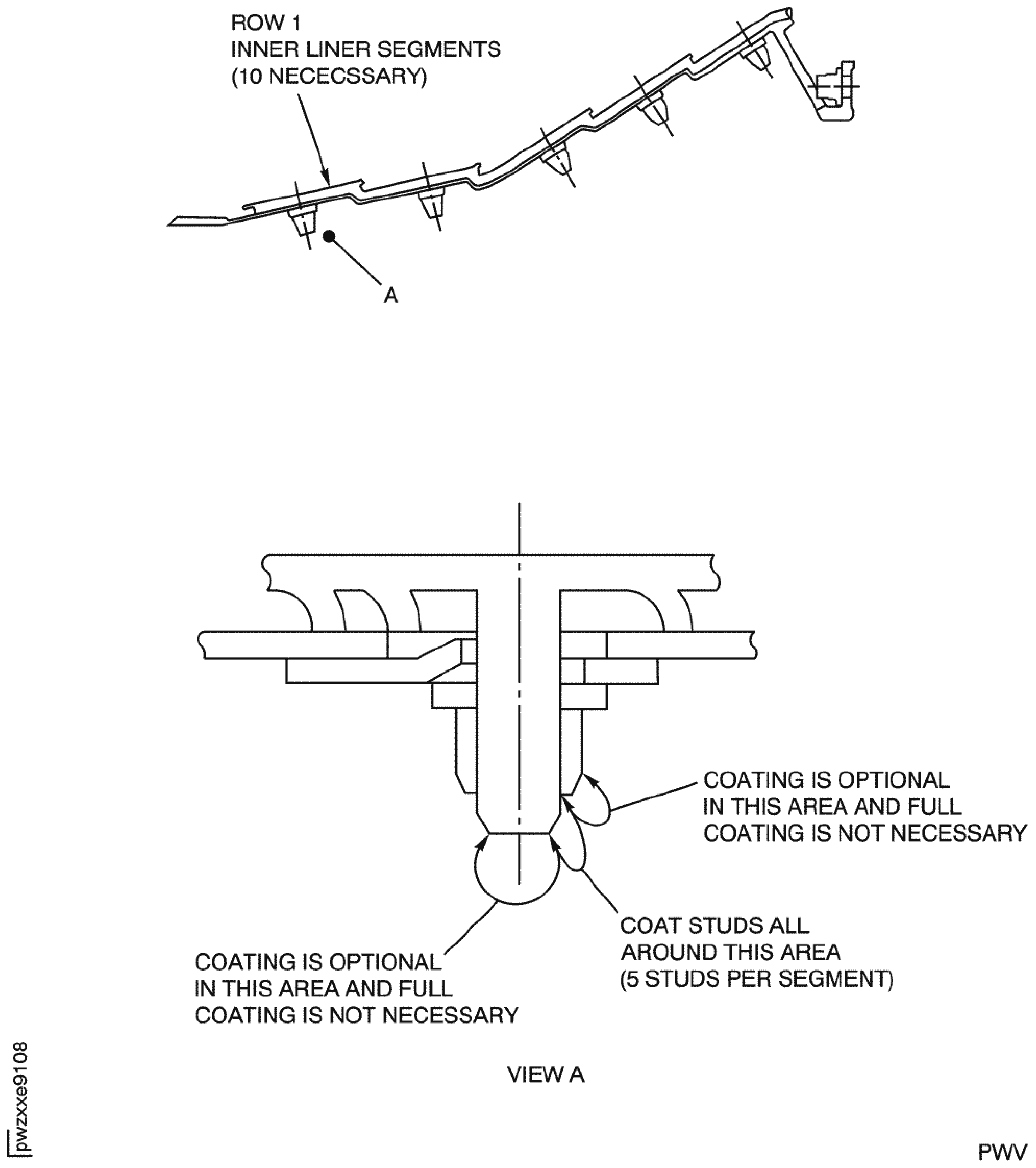

        Apply CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER coating compound on the threaded studs of the Row 1 liner segments, use a small artists brush. Full coverage is necessary, but there is no thickness limit. Refer to Figure for coating application.

        If engine oil was not used on liner segments Row 2 thru 5, apply CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER on the threaded studs using a small artist's brush. Complete coverage is necessary but there is no thickness requirement. Refer to Figure as a reference for coating application.
