TASK 72-45-00-300-001 HPT Instrumentation (Borescope) Plug - Repair The Coating , Repair, Repair-001 (VRS3316)

DMC:V2500-A0-72-45-0001-00A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-00-300-001 HPT Instrumentation (Borescope) Plug - Repair The Coating , Repair, Repair-001 (VRS3316)

Effectivity

FIG/ITEM PART NO.

01-140

2A0605

01-140

2A2351

General

See Figure for locating area to be repaired.

Repair facilities

The proprietary nature of this repair requires that any facility not authorized to accomplish this repair either utilize the Authorized Repair Vendors listed below or contact the IAE Manager Maintenance Operations to be determine if a qualification program can be initiated at their facility.

IAE-INTERNATIONAL AERO ENGINES
AG
400 Main Street M/S
121-10
East Hartford, Ct
06108 USA
ATTN:  Manager
Maintenance Operations

Authorized repair vendors for Repair VRS3316 are listed below:

ALLOY SURFACES COMPANY, INC
Foxpoint Industrial Park
100-A Locke Rd
Wilmington, DE 19809 USA

TURBINE COMPONENTS CORPORATION
DIFFUSION COATINGS DIVISION
1 Commercial
Branford, CT 06405 USA

The designation by IAE of an authorized repair vendor indicates that the repair vendor has demonstrated the necessary capability to enable it to carry out the listed repair work. However, IAE make no warranties or representations concerning the qualifications or quality standards of the repair vendors to carry out the repair work, and accepts no responsibility whatsoever for any work that may be carried out be a repair vendor, other than when IAE is listed as the repair vendor. Authorized repair vendors do not act as agents or representatives of IAE.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-00-350-051 Touch-Up Coating Repair of the Instrumentation Plug (01-140)

      1. Touch-up the coating on the instrumentation plug.

    2. SUBTASK 72-45-00-220-074 Post Repair Inspection

      1. Examine the repair.

      1. Refer to Figure.

        Make sure the repaired plug has a permanent mark VRS3316 adjacent to the part number.

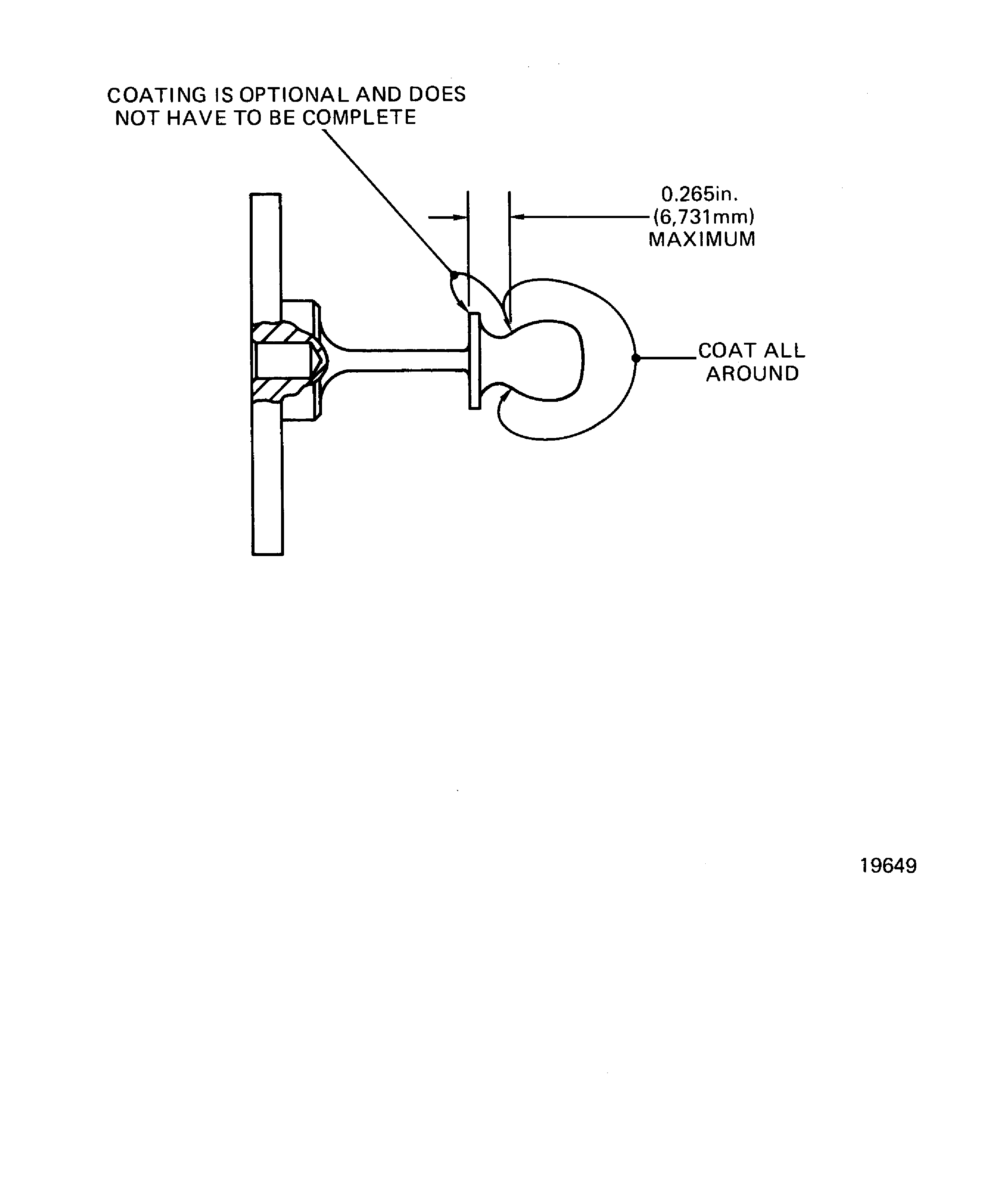

    3. Figure: Instrumentation Plug Coating Repair Areas

    Instrumentation Plug Coating Repair Areas

Requirements After Job Completion

Follow-On Conditions

NONE
