TASK 72-45-00-300-009 HPT Stage 2 Air Seal - Replace The Metering Plug, Repair-009 (VRS3335)

DMC:V2500-A0-72-45-0012-00A-920A-C|Issue No:002.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-00-300-009 HPT Stage 2 Air Seal - Replace The Metering Plug, Repair-009 (VRS3335)

Effectivity

FIG/ITEM

PART NO.

01-080

2A4196

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 2 HPT Airseal

-

Nickel alloy

General

Price and availability - refer to IAE

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Stage 2 HPT air seal metering plug2A1158AR

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-00-350-058 remove the Worn or Damaged Stage 2 HPT Air Seal Metering Plug

      1. Remove the worn or damaged metering plug with your hand.

      1. Refer to Figure.

    2. SUBTASK 72-45-00-220-121 Examine the Metering Plug in the Stage 2 HPT Air Seal

      1. Examine the metering plug hole for galling.

      1. Refer to Figure.

      2. Surface damage not more than 0.001 in. (0.025 mm) is permitted without repair.

    3. SUBTASK 72-45-00-350-059 Install the New Stage 2 HPT Air Seal Metering Plug

      1. Install the new metering plug with your hand.

      1. Refer to Figure.

    4. SUBTASK 72-45-00-220-122 Examine the Repair

      1. Examine the new metering plug.

      1. Refer to Figure.

      2. Make sure you installed the metering plug correctly as shown in the figure.

      3. The metering plug is acceptable if you cannot remove the plug with your hand.

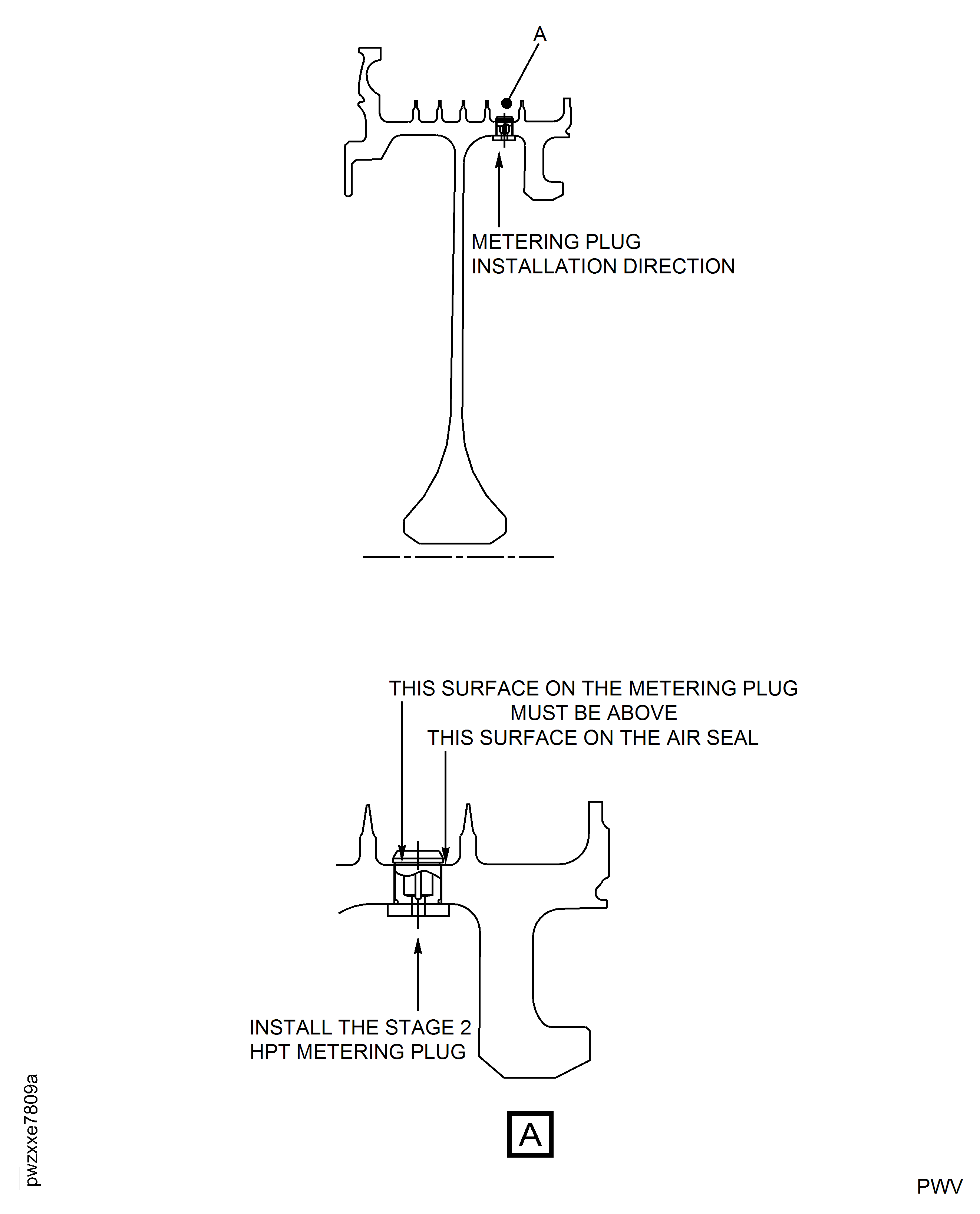

    5. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised figure 1. (18VC291)
