TASK 72-45-21-300-001 HPT Case - Blend Repair, Repair-001 (VRS1472)

DMC:V2500-A0-72-45-2101-00A-649A-C|Issue No:003.00|Issue Date:2015-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-21-300-001 HPT Case - Blend Repair, Repair-001 (VRS1472)

Effectivity

FIG/ITEM

PART NO.

01-010

2A0250

01-010

2A0250SL87VA156

01-010

2A1591

01-010

2A1591SL87VA156

01-010

2A1600

01-010

2A1600SL114902

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Turbine case assembly

52.5Ni-19Cr-3.0Mo-5.1(Cb+Ta)-

0.90Ti-0.50Al-19Fe

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

For the method to clean the parts, refer to TASK 72-45-21-100-000.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-21-350-051 Blend the Damaged Surface of the Turbine Case Assembly and Bolt Holes (01-010)

    1. Refer to Figure.

      2. Blend the damaged surface and bolt holes.

      1. Refer to the SPM TASK 70-35-03-300-501.

        If the damage cannot be removed in accordance with blend limit, Figure, reject the turbine case assembly.

    2. SUBTASK 72-45-21-350-052 Examine the Turbine Case Assembly (01-010)

      1. Visually examine the repaired turbine case assembly.

      2. Fluorescent penetrant inspect the repaired area.

      1. Refer to the SPM TASK 70-23-08-230-501.

        No cracks are permitted.

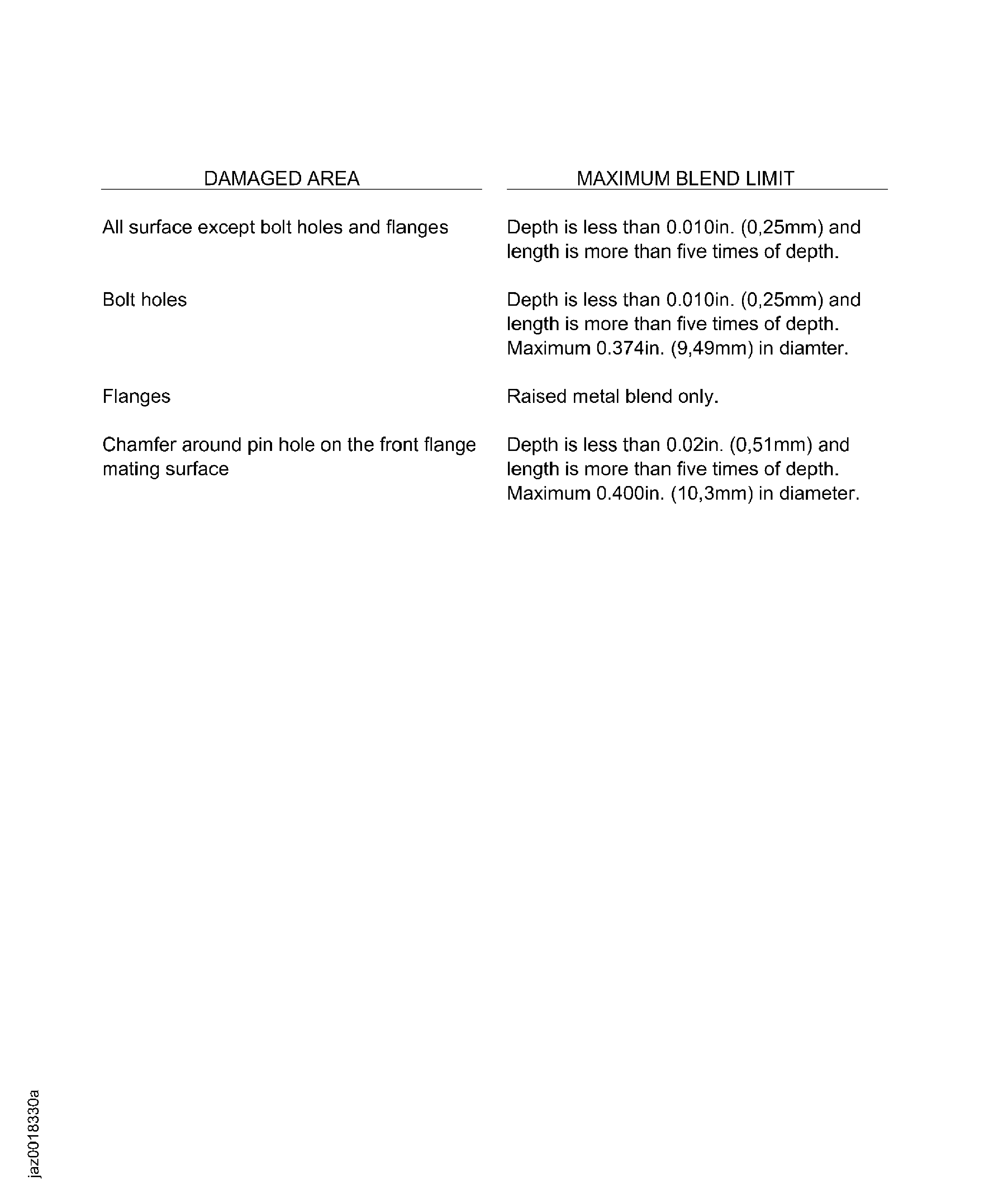

    3. Figure: Blend Limits of the Turbine Case Assembly

    Blend Limits of the Turbine Case Assembly

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised format. (editorial change)

Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-021
Type:sp01
Supply Short Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/35 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 240 (ANSI B74.18 )
JCR-188 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
