TASK 72-45-22-300-004 HPT Stage 1 Duct Support Segment - Replace The Shoulder Pin, Repair-004 (VRS3214)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
Stage 2 HPT support assembly | - | Nickel alloy |
Headless shoulder pin | - | Stainless steel |
General
The practices and processes referred to in the procedure by TASK number are in the SPM.
Price and availability - none
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Drift | LOCAL | Drift | ||
| Workshop inspection equipment | LOCAL | Workshop inspection equipment | ||
| IAE 3P16274 Pin driver | 0AM53 | IAE 3P16274 | 1 | |
| IAE 3P16275 Support block | 0AM53 | IAE 3P16275 | 1 |
Consumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Headless shoulder pin | 2A0981CL1 | AR | ||
| Headless shoulder pin | 2A0981CL2 | AR | ||
| Headless shoulder pin | 2A0981CL3 | AR | ||
| Headless shoulder pin | 2A0981CL4 | AR | ||
| Headless shoulder pin | 2A0981P3 | AR | ||
| Headless shoulder pin | 2A0981P5 | AR |
Safety Requirements
NONEProcedure
Refer to Figure.
Drift the shoulder pins out from the rear side or use the IAE IAE 3P16275 Support block 1 off or equivalent and the IAE 3P16274 Pin driver 1 off or equivalent.
Be careful you do not damage the holes or adjacent material on the support.
Remove the damaged, loose or worn shoulder pin(s) with a drift.
Refer to Figure, requirements.
Use the IAE 3P16275 Support block or equivalent, and the IAE 3P16274 Pin driver or equivalent.
Install the replacement pin(s).
SUBTASK 72-45-22-350-058 Replace the Damaged, Loose or Worn Shoulder Pin(s)

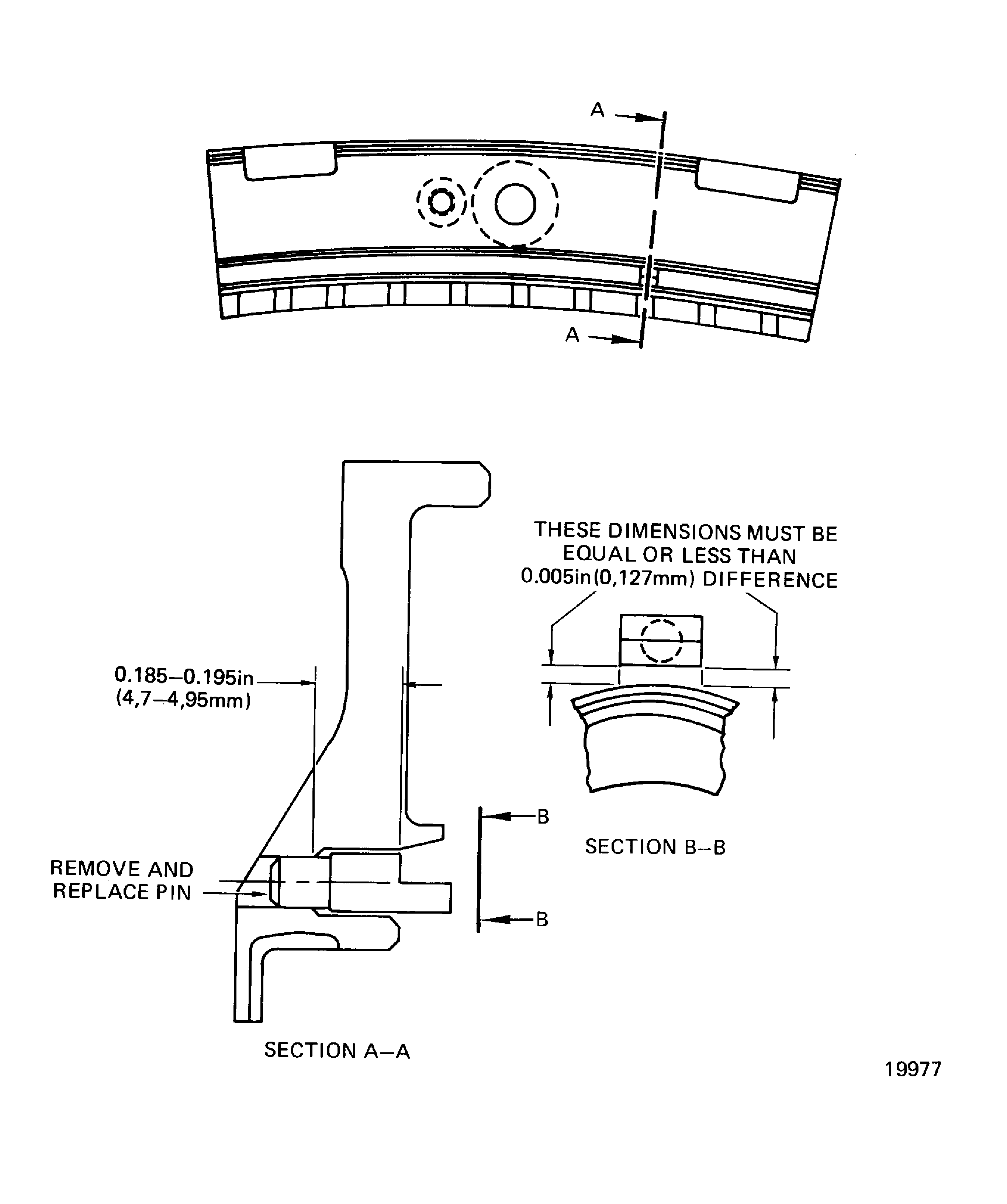

Figure: Stage 1 HPT duct support set shoulder pin repair area
Stage 1 HPT duct support set shoulder pin repair area
