TASK 72-45-23-300-015 HPT Stage 1 Duct Segment - Cold Work The Seal Slot Tabs, Repair-015 (VRS3640)

DMC:V2500-A0-72-45-2301-00A-271A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-23-300-015 HPT Stage 1 Duct Segment - Cold Work The Seal Slot Tabs, Repair-015 (VRS3640)

Effectivity

FIG/ITEM

PART NO.

01-060

2A2063-01

01-060

2A3061-01

01-060

2A3295-01

01-060

2A3515-01

01-060

2A3579-01

01-060

2A3886-01

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 1 HPT Duct Segment

Cobalt-based alloy

General

Price and availability - refer to IAE

The practices and processes referred to in this procedure by TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-23-220-083 Cold Work the Seal Slot Tabs of the Stage 1 HPT Duct Segment

      CAUTION

      THE TAB CAN BE BENT IN EITHER DIRECTION UP TO 0.031 IN. (0.787 MM), BUT THE PART MUST BE COLD WORKED IN ONE DIRECTION ONLY (INBOARD OR OUTBOARD) BEFORE THE STRESS-RELIEF CYCLE.

    1. Refer to: Figure

    2. Cold work the seal slot tab to make the slot width 0.025 - 0.031in. (0.635 - 0.787 mm).

    2. SUBTASK 72-45-23-230-060 Fluorescent Penetrant Inspect the Stage 1 HPT Duct Segment After Cold Work

      1. Do a fluorescent penetrant inspection of the duct segment for cracks.

      1. Refer to the SPM TASK 70-23-02-230-501.

        No cracks are permitted.

    3. SUBTASK 72-45-23-370-001 Stress-Relieve the Stage 1 HPT Duct Segment

      1. Stress-relieve the duct segment.

      1. Refer to the SPM TASK 70-37-10-370-501. You can do the stress-relief procedure at the same time as a Coat Diffusion Cycle at 1975 deg F (1079.4 deg C) or Thermal Cycle at 1975 deg F (1079.4 deg C) for four hours.

    4. SUBTASK 72-45-23-230-061 Fluorescent Penetrant Inspect the Stage 1 HPT Duct Segment After Stress-Relief

      1. Do a fluorescent penetrant inspecton of the duct segment for cracks.

      1. Refer to the SPM TASK 70-23-02-230-501.

        No cracks permitted.

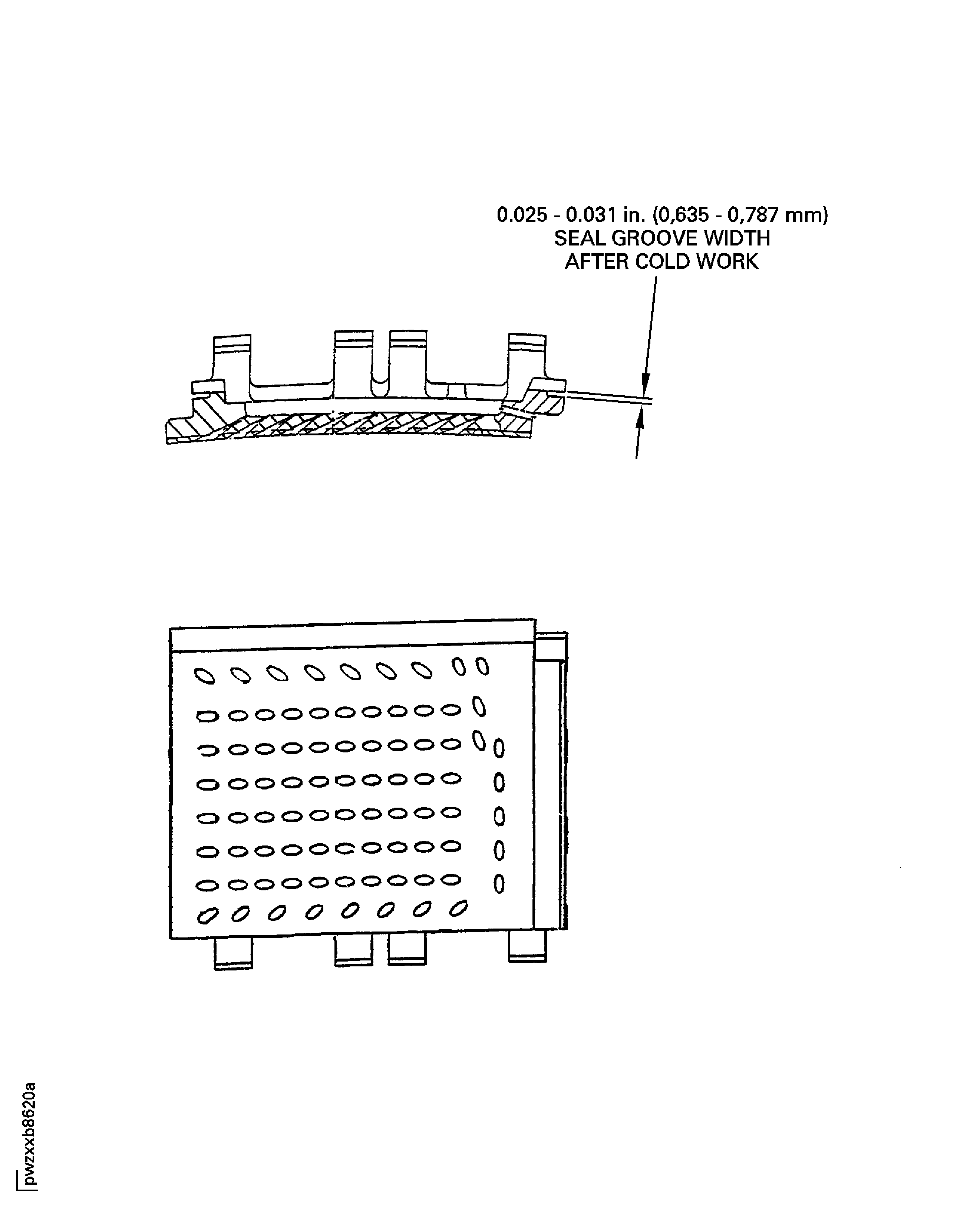

    5. Figure: Cold Work the Tabs of the Stage 1 HPT Duct Segment

    Cold Work the Tabs of the Stage 1 HPT Duct Segment

Requirements After Job Completion

Follow-On Conditions

NONE
