TASK 72-45-23-300-009 HPT Stage 1 Duct Segment - Replace The Anti-Rotation Pin, Repair-009 (VRS3161)

DMC:V2500-A0-72-45-2301-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-23-300-009 HPT Stage 1 Duct Segment - Replace The Anti-Rotation Pin, Repair-009 (VRS3161)

Effectivity

FIG/ITEM

PART NO.

01-060

2A3061-01

01-060

2A2063-01

01-060

2A2063-001

01-060

2A3295-01

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 1 HPT duct segment

-

Cobalt-based alloy

General

Price and availability - refer to IAE.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Pin, straight headless2A3062CL1-
Pin, straight headless2A3062CL2-
Pin, straight headless2A3062CL3-
Pin, straight headless2A3062CL4-
Pin, straight headless2A3062P3-
Pin, straight headless2A3062P5-

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-23-350-058 Replace the Damaged, Worn or Bent Pin of the Stage 1 HPT Duct Segment

    1. Refer to: Figure

      NOTE

      Cast to size segments have a cast-in or integral anti-rotation feature (no pressed-in pin) and are not eligible for this repair.

      2. Drill out and remove damaged, worn or bent pin(s).

      1. Refer to Figure.

        Be careful not to damage the pin hole.

    3. Choose replacement pin that provides a 0.0001 to 0.0015 in. (0.00254 to 0.0381 mm) interference fit with existing hole.

      4. Install replacement pin.

      1. Refer to Figure.

        Make sure the pin is flush or below adjacent material.

    2. SUBTASK 72-45-23-230-063 Fluorescent Penetrant Inspect the Stage 1 HPT Duct Segment after Pin Installation

      1. Do a fluorescent penetrant inspection of the repair area for cracks.

      1. Refer to the SPM TASK 70-23-02-230-501.

        No cracks permitted.

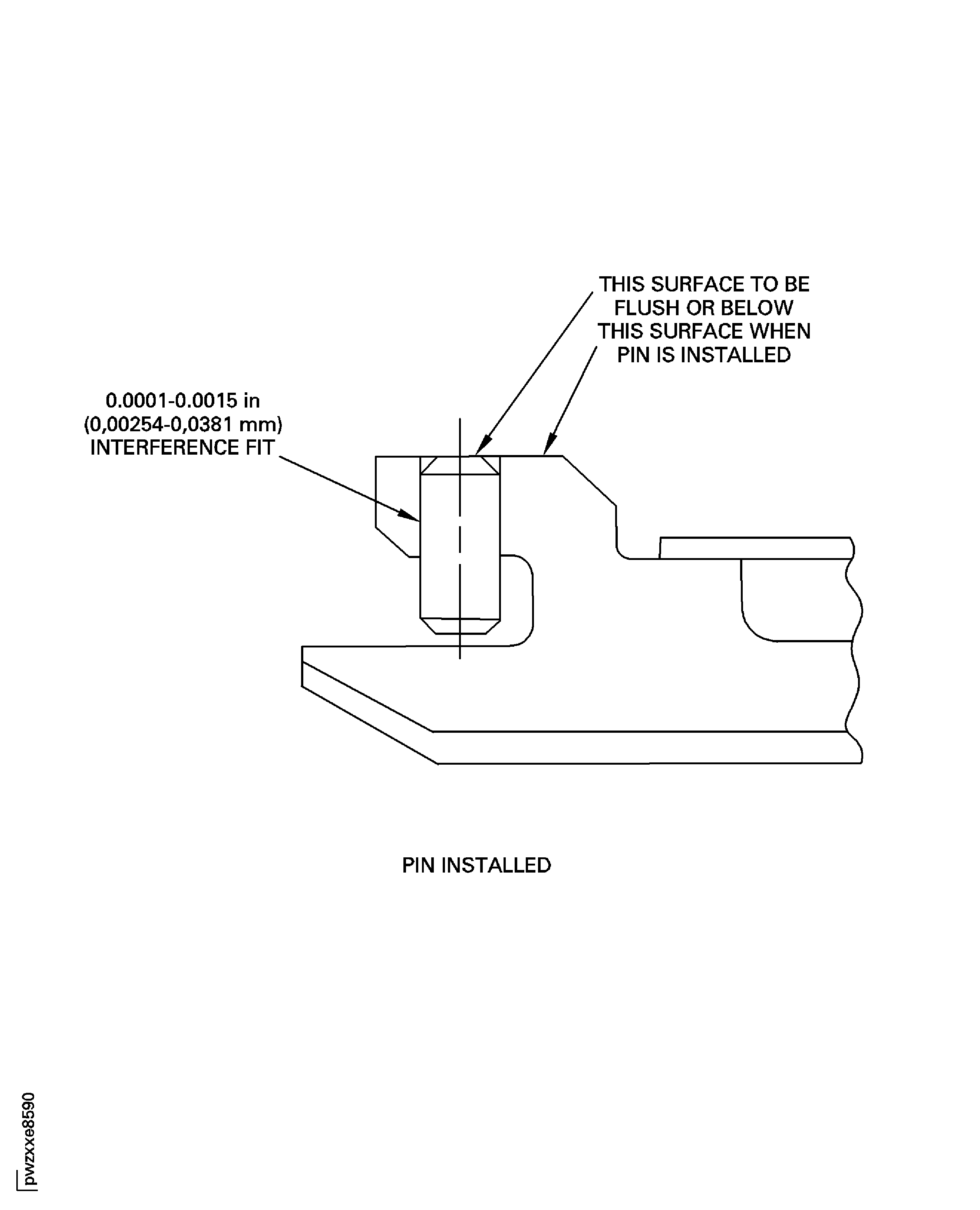

    3. Figure: Stage 1 HPT duct segment, pin installed

    Stage 1 HPT duct segment, pin installed
