TASK 72-45-25-300-005 HPT Stage 2 Duct Segment - Repair, Repair-005 (VRS3465)
General
This repair can only be used to repair the duct segment base metal surface damage.
Surface damage of 0.005 in. (0.127 mm) or less is permitted without a repair and is also permitted in the no blend areas.
The practices and procedures referred to in the procedure by the TASK number are in the SPM.
Price and availability - not applicable
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Grinding equipment | LOCAL | Grinding equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-071 ADHESIVE PRECOAT FOR GREASELESSCOMPOUND | 75554 | CoMat 05-071 | ||
| CoMat 05-072 POLISHING COMPOUND | 75554 | CoMat 05-072 | ||
| CoMat 05-145 WHEEL, CLOTH BUFF | IAE65 | CoMat 05-145 |
Spares
NONESafety Requirements
NONEProcedure
All surface imperfections may be blended if the serviceable limits are maintained after blending.
Blend by the SPM TASK 70-35-21-350-501. Use width-to-depth blend ratio of 2:1 on surface other than the OD pocket use 10:1.
Blend repair only the base metal.
No high material is permitted.
Use the CoMat 05-071 ADHESIVE PRECOAT FOR GREASELESSCOMPOUND, CoMat 05-072 POLISHING COMPOUND and CoMat 05-145 WHEEL, CLOTH BUFF.
Examine the repaired parts by an applicable fluorescent penetrant inspection.
Blend the surface damage such as dents, nicks, erosion, corrosion and pitting on the duct segment.
SUBTASK 72-45-25-350-051 Blend the Stage 2 HPT Duct Segment

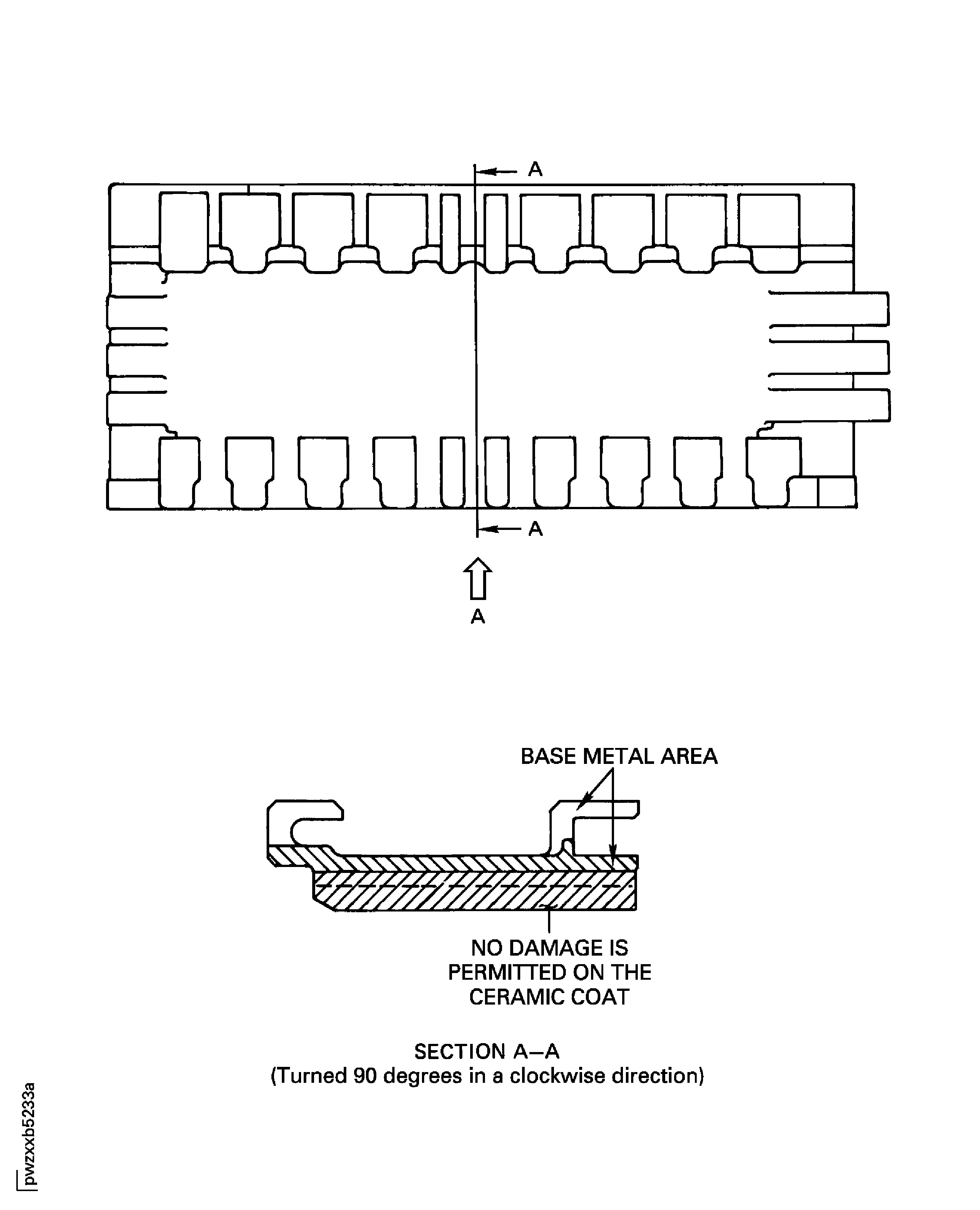

Figure: Stage 2 HPT Duct Segment Repair Areas
Sheet 1
Figure: Stage 2 HPT Duct Segment Repair Areas
Sheet 2
