TASK 72-45-25-300-002 HPT Stage 2 Duct Segment - Remove The Metal Transfer From Ceramic Rubstrip, Repair-002 (VRS3543)

DMC:V2500-A0-72-45-2501-00A-655A-C|Issue No:002.00|Issue Date:2019-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-25-300-002 HPT Stage 2 Duct Segment - Remove The Metal Transfer From Ceramic Rubstrip, Repair-002 (VRS3543)

Effectivity

FIG/ITEM

PART NO.

01-060

2A0108

01-060

2A1606

01-060

2A1944

01-060

2A3362

01-060

2A3363

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Stage 2 HPT Duct Segment

-

Nickel base alloy

General

Price and Availability - refer to IAE

The practices and processes referred to in this procedure by TASK numbers are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Deburr toolLOCALDeburr tool
Vacuum cleanerLOCALVacuum cleaner

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-145 WHEEL, CLOTH BUFFIAE65CoMat 05-145
CoMat 05-146 WHEEL, SILICON CARBIDE ABRASIVE COAT DELETED0AM53CoMat 05-146
CoMat 05-150 SILICON CARBIDE GRITIE531CoMat 05-150
DELETEDLOCALDELETED

CoMat 05-154

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-25-350-052 Remove the Metal Transfer from the Ceramic Rubstrip

      1. CAUTION

        DO THIS PROCEDURE UNTIL SIGNS OF METAL TRANSFER ARE GONE. DO NOT REMOVE TOO MUCH CERAMIC MATERIAL OR THE COLD GAP RUB/EROSION REQUIREMENT AT ASSEMBLY MAY NOT BE MET.

        Remove all metal transfer from the ceramic rubstrip.

      1. Refer to Figure.

        Use CoMat 05-145 WHEEL, CLOTH BUFF with CoMat 05-150 SILICON CARBIDE GRIT or CoMat 05-146 WHEEL, SILICON CARBIDE ABRASIVE COAT DELETED.

        Lightly grind affected areas. Be careful not to cause damage to other areas of ceramic coating or other surfaces.

    2. SUBTASK 72-45-25-350-053 Remove Loose Dust from surfaces that Show

      1. Remove loose dust from surfaces that show on the duct segment.

      1. Use a vacuum cleaner to remove dust. Be sure to vacuum all slots and cooling holes.

    3. SUBTASK 72-45-25-220-079 Inspect the Stage 2 HPT Duct Segment after Repair

      1. Examine the duct segment after repair.

      1. Refer to Figure.

        Damage to other areas of ceramic coating and other surfaces is not permitted.

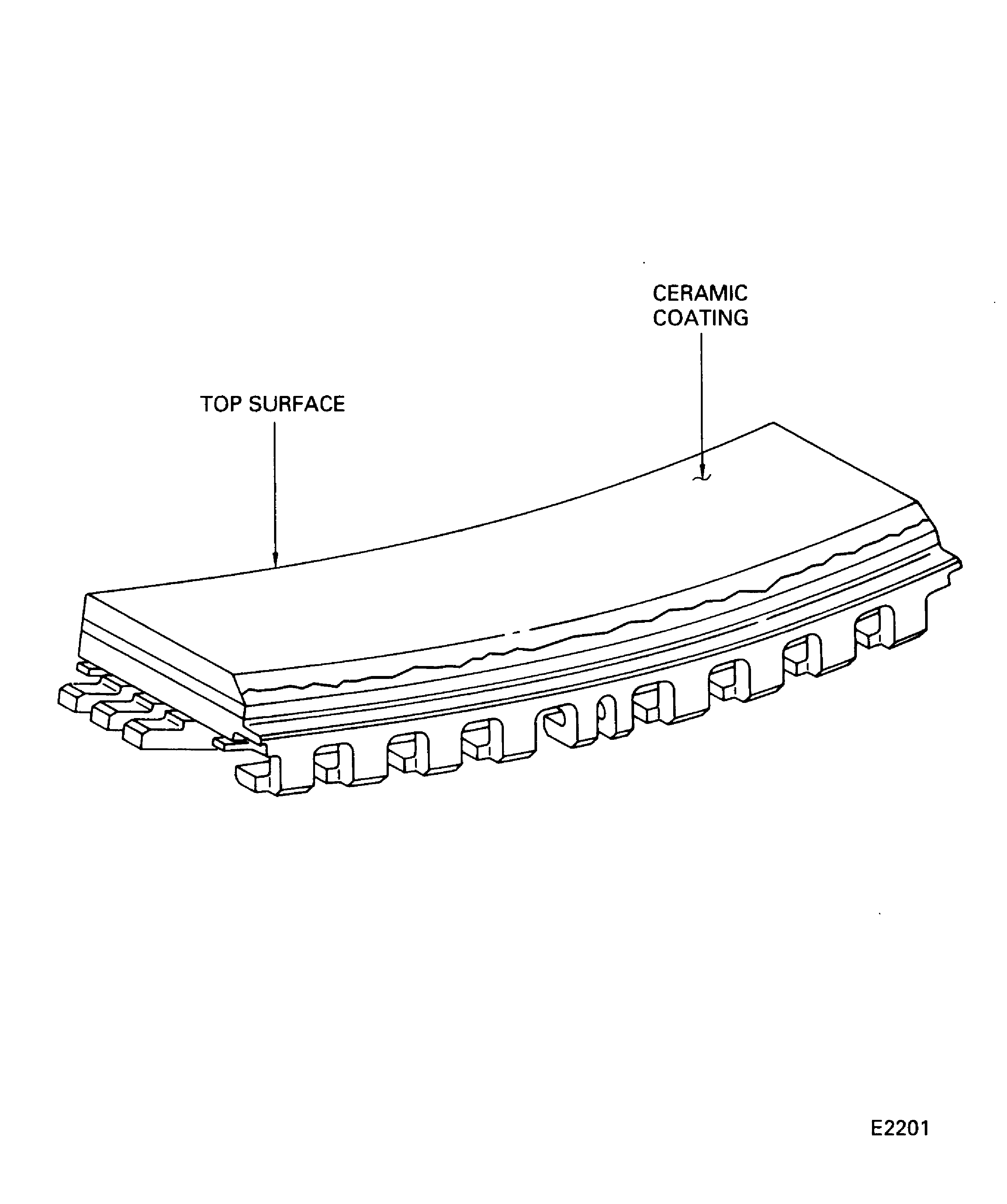

    4. Figure: Stage 2 HPT Duct Segment Repair

    Stage 2 HPT Duct Segment Repair
