TASK 72-45-32-300-013 HPT Stage 2 Blade - Blend Repair And Restore The Protective Coating, Repair-013 (VRS3440)

DMC:V2500-A0-72-45-3201-03A-649A-C|Issue No:003.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-32-300-013 HPT Stage 2 Blade - Blend Repair And Restore The Protective Coating, Repair-013 (VRS3440)

Effectivity

FIG/ITEM PART NO.

01-010

2A2202-002

01-010

2A2202-003

01-010

2A2702

01-010

2A2702-001

01-010

2A4422

01-010

2A9002

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 2 HPT blade assembly

-

Wrought non-hardening nickel base alloy

General

Refer to Figurefor the areas that are to be repaired.

Repair Facilities

The Proprietary nature of this repair requires that any facility not authorized to accomplish this repair either utilize the Authorized Repair Vendors listed below or contact the IAE Manager Maintenance Operations to determine if a qualification program can be initiated at their facility.

IAE International Aero Engines AG

400 Main Street, Mail Stop 121-10

East Hartford CT 06118

USA

Email: gpiaerepaircouncil@iaev2500.com

ATTN: IAE Repair Council

Authorized repair vendors for Repair VRS3440 are listed below:

Turbine Overhaul Services Pte, Ltd. (TOS)

5 Tuas Drive Two - Mail Stop 107-58

Singapore 638639

Tel: 65-6860-2260

Fax: 65-6862-1068

The designation by IAE of an authorized repair vendor indicates that the repair vendor has demonstrated the necessary capability to enable it to carry out the listed repair work. However, IAE makes no warranties or representations concerning the qualifications or quality standards of the repair vendors to carry out the repair work, and accepts no responsibility whatsoever for any work that may be carried out by a repair vendor, other than when IAE is listed as the repair vendor. Authorized repair vendors do not act as agents or representatives of IAE.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-32-220-082 Post Repair Inspection

    1. Refer to: Figure

      2. Visually inspect the repair.

      1. Refer to TASK 72-45-32-200-000 (INSPECTION/CHECK-000).

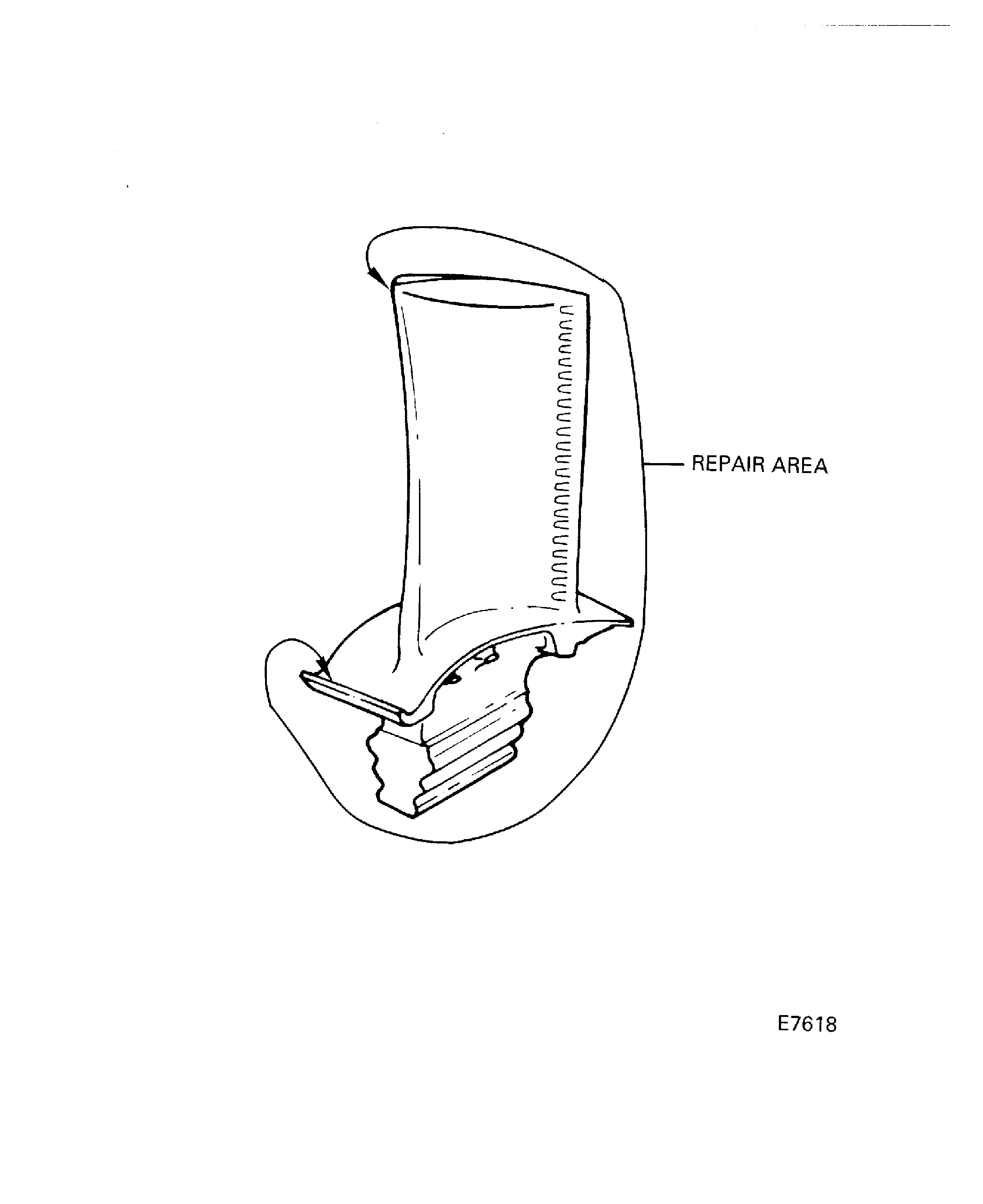

    2. Figure: Stage 2 HPT blade assembly repair areas

    Stage 2 HPT blade assembly repair areas

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added PN 2A2702-001 and 2A9002 in the effectivity table and revised IAE address. (PSAF15VC003)

Change Type:

Added PN 2A4422 in the effectivity table. (14VC232)
