TASK 72-50-00-530-003 LP Turbine (LPT) And Turbine Exhaust Case (TEC) Unit - Pack The LPT Module (With Shaft), Storage-003

DMC:V2500-A0-72-50-0000-01A-830A-B|Issue No:005.00|Issue Date:2020-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-00-530-003 LP Turbine (LPT) And Turbine Exhaust Case (TEC) Unit - Pack The LPT Module (With Shaft), Storage-003

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1F10019 Mechanical wrench0AM53IAE 1F100191
IAE 1R19787 Sling0AM53IAE 1R197871
IAE 1F10052 Two cables sling0AM53IAE 1F100521
IAE 1F10074 Guide pogo stick0AM53IAE 1F100741
IAE 1F10075 Support pedestal0AM53IAE 1F100751
IAE 1F10080 Horizontal stand0AM53IAE 1F100801
IAE 5F10149 Shipping frame0AM53IAE 5F101491
IAE 5F10167 Shipping equipment0AM53IAE 5F101671
IAE 1M14000 Lifting fixture0AM53IAE 1M140001
IAE 1M14002 Support fixture0AM53IAE 1M140021
IAE 1M14003 Support arm0AM53IAE 1M140032
IAE 1M14005 Torque wrench0AM53IAE 1M140051
IAE 1M14006 Immobilizing fixture0AM53IAE 1M140061
IAE 1M14086 Supporting fixture0AM53IAE 1M140861
IAE 1M14127 Support plate0AM53IAE 1M141272
IAE 1M14139 Immobilizing fixture0AM53IAE 1M141391
IAE 1M14143 Support fixture0AM53IAE 1M141431
IAE 1M14461 Supporting fixture0AM53IAE 1M144611
IAE 1M14146 Support plate0AM53IAE 1M141462
IAE 1P16377 Guide support0AM53IAE 1P163771

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 12-004 P.V.C. SHEETLOCALCoMat 12-004
CoMat 12-022 DESICCANT SELF INDICATINGLOCALCoMat 12-022

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-00-530-064 Open the Shipping Equipment

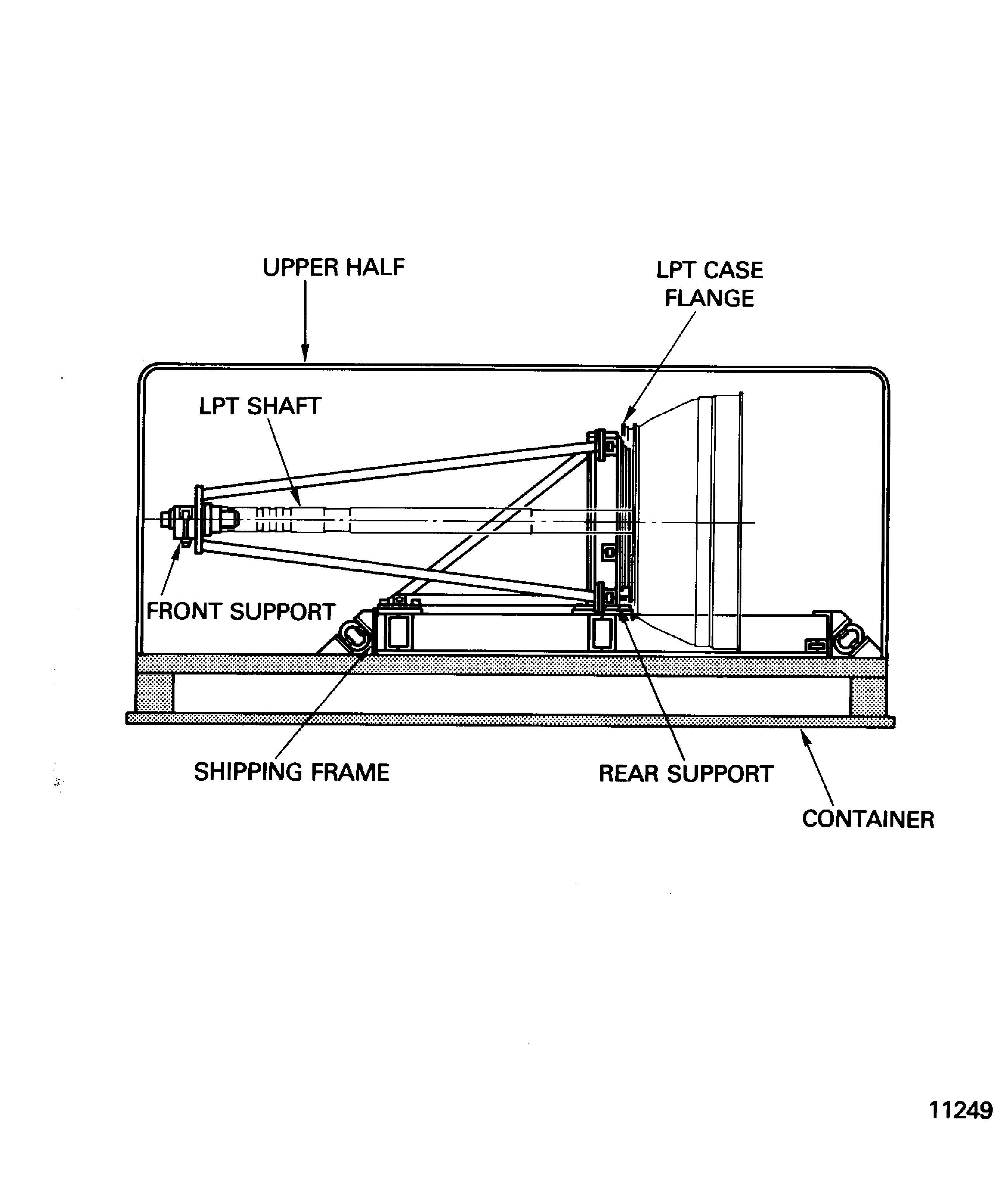

    1. Refer to Figure

    2. Loosen and remove the safety parts of the IAE 5F10167 Shipping equipment 1 off.

    3. Install hoist equipment to the upper half of the shipping equipment.

    4. Lift the upper half of the shipping equipment and remove it.

    2. SUBTASK 72-50-00-530-065-A00 V2500-A1: Install the Guide Pogo Stick to the LP Turbine Shaft

      NOTE

      Safety the IAE 1F10080 Horizontal stand 1 off with the three arms.

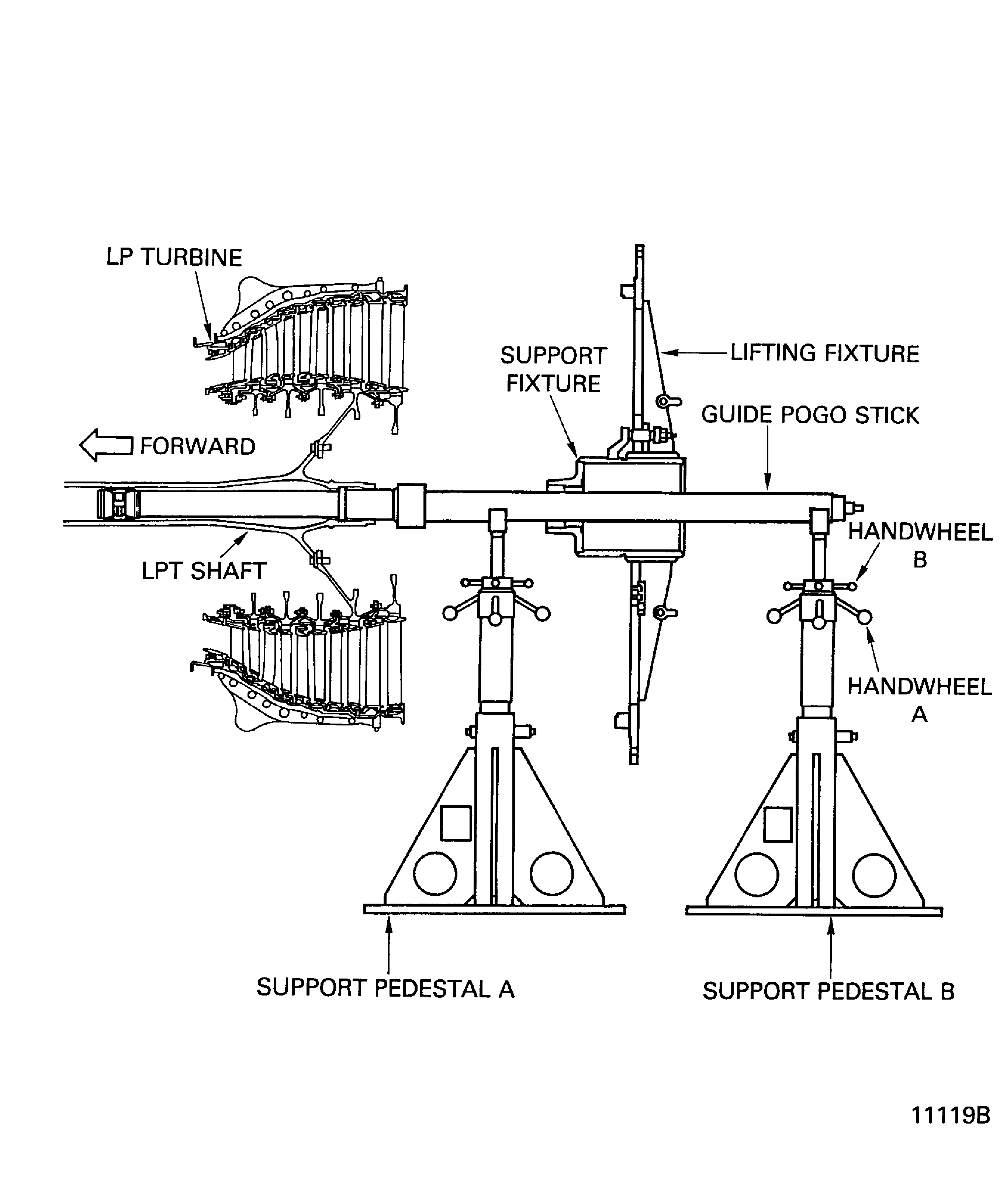

    1. Refer to Figure

    2. Install the IAE 1F10074 Guide pogo stick 1 off through the inner diameter of the LP turbine shaft. Use an applicable webbing sling.

    3. Make sure that the centering diameter of the guide pogo stick is installed correctly to the LP turbine shaft. Turn the screw clockwise at the rear end of the guide pogo stick to lock the guide pogo stick to the LP turbine shaft.

    4. Put the IAE 1F10075 Support pedestal 1 off A below the guide pogo stick. Move the support pedestal A near the rear flange of the LP turbine case. Turn the handwheel A until the end of the pedestal-screw touches the guide pogo stick. Lock the pedestal-screw in that position with the handwheel B.

    3. SUBTASK 72-50-00-530-065-B00 V2500-A5: Install the Guide Support to the LP Turbine Shaft

      NOTE

      Safety the IAE 1F10080 Horizontal stand 1 off with the three arms.

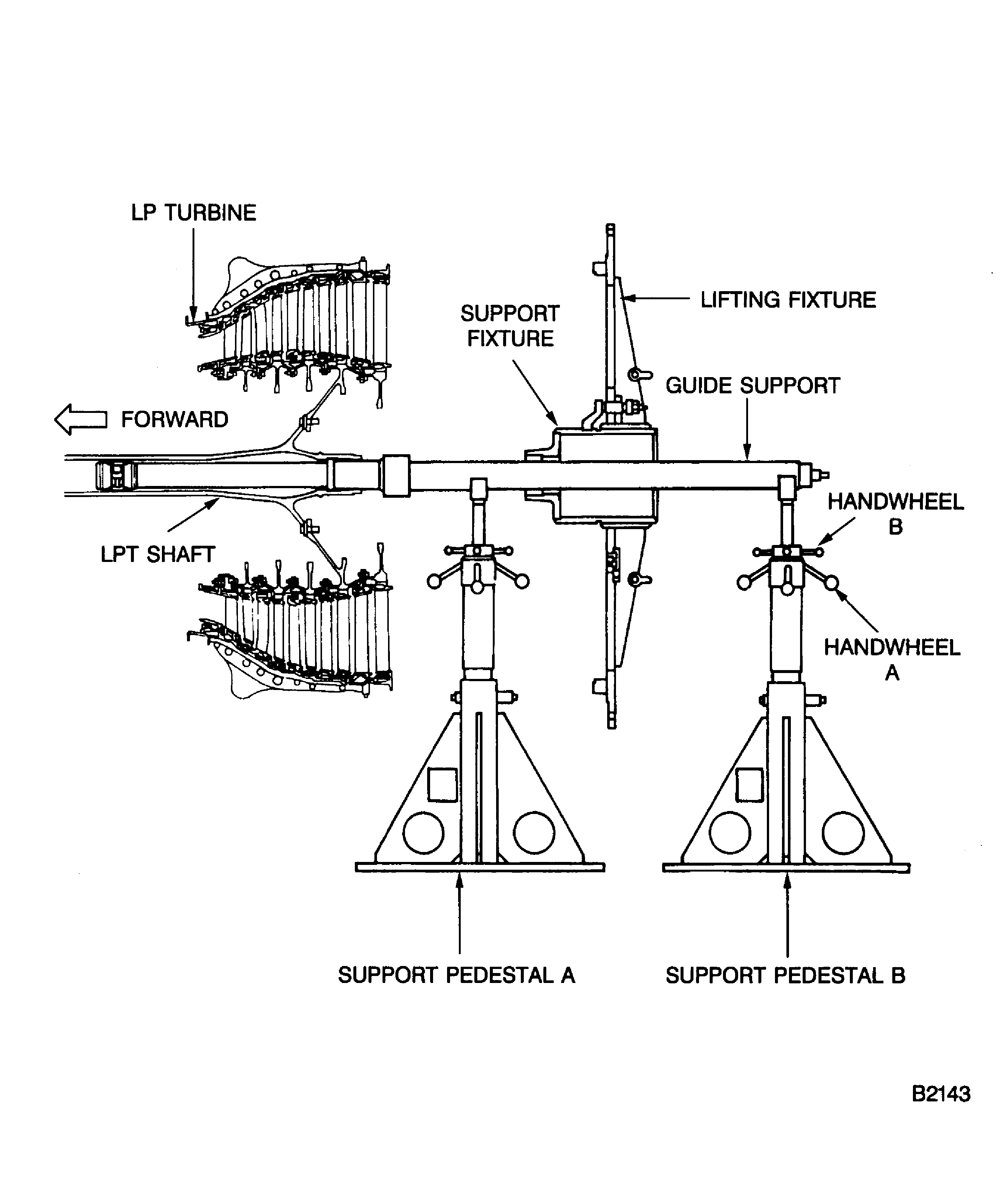

    1. Refer to Figure

    2. Install the IAE 1P16377 Guide support 1 off through the inner diameter of the LP turbine shaft. Use an applicable webbing sling.

    3. Make sure that the centering diameter of the guide support is installed correctly to the LP turbine shaft. Turn the screw clockwise at the rear end of the guide support to lock the guide support to the LP turbine shaft.

    4. Put the IAE 1F10075 Support pedestal 1 off A below the guide support. Move the support pedestal A near the rear flange of the LP turbine case. Turn the handwheel A until the end of the pedestal-screw touches the guide support. Lock the pedestal-screw in that position with the handwheel B.

    4. SUBTASK 72-50-00-530-066-A00 V2500-A1: Install the Transportation Blanks to the LP Turbine Case and Rotor

    1. Refer to Figure

    2. Loosen and remove the seven bolts from each of the IAE 1M14127 Support plate 2 off. Remove the support plates from the front flange of the LP turbine case and from the LP turbine shaft.

    3. Install the transportation blanks (parts of the IAE 5F10167 Shipping equipment) to the LP turbine module case and rotor assembly.

    5. SUBTASK 72-50-00-530-066-B00 V2500-A5: Install the Transportation Blanks to the LP Turbine Case and Rotor

    1. Refer to Figure

    2. Loosen and remove the seven bolts from each of the IAE 1M14146 Support plate 2 off. Remove the support plates from the front flange of the LP turbine case and from the LP turbine shaft.

    3. Install the transportation blanks (parts of the IAE 5F10167 Shipping equipment) to the LP turbine module case and rotor assembly.

    6. SUBTASK 72-50-00-530-067-A00 V2500-A1: Remove the Supporting Fixture

    1. Refer to Figure and Figure

    2. Release the two hand knobs that attach the two clamps (part of IAE 1M14086 Supporting fixture or of the IAE 1M14461 Supporting fixture) 1 off to the stage 7 turbine disk.

    3. Release the four screws that attach the supporting fixture to the LP turbine case. Remove the supporting fixture from the rear flange of the LP turbine case.

    7. SUBTASK 72-50-00-530-067-B00 V2500-A5: Remove the Supporting Fixture

    1. Refer to Figure and Figure

    2. Release the two hand knobs that attach the two clamps (part of IAE 1M14143 Support fixture or of the IAE 1M14461 Supporting fixture) 1 off to the stage 7 turbine disk.

    3. Release the four screws that attach the supporting fixture to the LP turbine case. Remove the supporting fixture from the rear flange of the LP turbine case.

    8. SUBTASK 72-50-00-530-068 Install the Support Fixture in to the Lifting Fixture

    1. Refer to Figure

    2. Use hoist equipment.

    3. Engage the IAE 1M14000 Lifting fixture 1 off on to the IAE 1M14002 Support fixture 1 off. Turn back the three guide sleeves, part of the lifting fixture, until the support fixture touches the lifting fixture.

    4. Attach the tool assembly with the three nuts on the guide sleeves.

    5. Install the IAE 1M14003 Support arm 2 off to the lifting fixture. Attach each support arm with eight washers and screws.

    6. Use hoist equipment, install the IAE 1F10052 Two cables sling 1 off to the rear spools of the support arms.

    9. SUBTASK 72-50-00-530-069-A00 V2500-A1: Install the Assembled Lifting Fixture and Remove the Guide Pogo Stick

    1. Refer to Figure

    2. Engage the assembled lifting fixture on to the IAE 1F10074 Guide pogo stick. Use hoist equipment.

    3. Put the IAE 1F10075 Support pedestal 1 off B below the rear end of the guide pogo stick. Turn the handwheel A until the end of the pedestal-screw touches the guide pogo stick. Lock the pedestal-screw in that position with the handwheel B.

    5. Move the lifting fixture against the rear flange of the LP turbine case. Align the holes. Attach the lifting fixture with 19 screws. Tighten the screws.

    6. Attach the IAE 1F10052 Two cables sling 1 off to the front spools of the support arms.

    7. Loosen the three nuts that safety the guide sleeves (part of IAE 1M14000 Lifting fixture 1 off). Turn the guide sleeves clockwise until the support fixture is correctly installed to the LP turbine shaft. Tighten the three nuts, refer to Figure.

    8. CAUTION

      MAKE SURE THAT THE SUPPORT FIXTURE IS CORRECTLY INSTALLED ON THE LP TURBINE SHAFT AND LOCKED TO THE LIFTING FIXTURE. IF NOT CORRECTLY INSTALLED, THE LP TURBINE CASE AND ROTOR PARTS CAN BE DAMAGED DURING HANDLING OF THE LP TURBINE MODULE.

      Remove the IAE 1F10075 Support pedestal B. Remove the guide pogo stick through the support fixture.

    10. SUBTASK 72-50-00-530-069-B00 V2500-A5: Install the Assembled Lifting Fixture and Remove the Guide Pogo Stick

    1. Refer to Figure

    2. Engage the assembled lifting fixture on to the IAE 1P16377 Guide support 1 off. Use hoist equipment.

    3. Put the IAE 1F10075 Support pedestal 1 off B below the rear end of the guide support. Turn the handwheel A until the end of the pedestal-screw touches the guide support. Lock the pedestal-screw in that position with the handwheel B.

    5. Move the lifting fixture against the rear flange of the LP turbine case. Align the holes. Attach the lifting fixture with 19 screws. Tighten the screws.

    6. Attach the IAE 1F10052 Two cables sling 1 off to the front spools of the support arms.

    7. Loosen the three nuts that safety the guide sleeves (part of IAE 1M14000 Lifting fixture 1 off). Turn the guide sleeves clockwise until the support fixture is correctly installed to the LP turbine shaft. Tighten the three nuts, refer to Figure.

    8. CAUTION

      MAKE SURE THAT THE SUPPORT FIXTURE IS CORRECTLY INSTALLED ON THE LP TURBINE SHAFT AND LOCKED TO THE LIFTING FIXTURE. IF NOT CORRECTLY INSTALLED, THE LP TURBINE CASE AND ROTOR PARTS CAN BE DAMAGED DURING HANDLING OF THE LP TURBINE MODULE.

      Remove the IAE 1F10075 Support pedestal B. Remove the guide support through the support fixture.

    11. SUBTASK 72-50-00-530-070-A00 V2500-A1: Attach the Assembled Fixture to the LP Turbine Module without Turbine Exhaust Case

    1. Refer to Figure.

    2. Install the ring nut (part of IAE 1M14002 Support fixture) on to the rear end of the LP turbine shaft.

    3. Install the IAE 1M14005 Torque wrench 1 off to the ring nut.

    4. Assemble the IAE 1F10019 Mechanical wrench 1 off with the IAE 1R19787 Sling 1 off the torque wrench.

    5. Install the IAE 1M14006 Immobilizing fixture 1 off on to the rear end of the LP turbine shaft. Safety the immobilizing fixture to the mechanical wrench with the immobilizer plate.

    6. Operate the mechanical wrench to torque the ring nut to 147.5 lbfft (200 Nm).

    7. Remove the immobilizing fixture, the mechanical wrench with the sling and the torque wrench from the lifting fixture.

    12. SUBTASK 72-50-00-530-070-B00 V2500-A5: Attach the Assembled Fixture to the LP Turbine Module without Turbine Exhaust Case

    1. Refer to Figure.

    2. Install the ring nut (part of IAE 1M14002 Support fixture) on to the rear end of the LP turbine shaft.

    3. Install the IAE 1M14005 Torque wrench 1 off to the ring nut.

    4. Assemble the IAE 1F10019 Mechanical wrench 1 off with the IAE 1R19787 Sling 1 off to the torque wrench.

    5. Install the IAE 1M14139 Immobilizing fixture 1 off on to the rear end of the LP turbine shaft. Safety the immobilizing fixture to the mechanical wrench with the immobilizer plate.

    6. Operate the mechanical wrench to torque the ring nut to 147.5 lbfft (200 Nm).

    7. Remove the immobilizing fixture, the mechanical wrench with the sling and the torque wrench from the lifting fixture.

    13. SUBTASK 72-50-00-530-071 Remove the LP Turbine Module without Turbine Exhaust Case from the Horizontal Stand

    1. Refer to Figure and Figure

    2. Loosen the nut of the eyebolt.

    3. Loosen the ringnut A. Turn the ringnut A to the end position.

    4. Loosen the ringnut B from the rear end of the support.

    5. Disengage the eyebolt. Turn the block in open position.

    6. Loosen and remove the 12 capscrews which attach the LP turbine case to the IAE 1F10080 Horizontal stand.

    7. Move the LP turbine module without turbine exhaust case carefully to get it free from the horizontal stand. Lift the LP turbine module without turbine exhaust case from the horizontal stand.

    8. Loosen the ringnut C and remove the shaft, part of the horizontal stand, from the LP turbine shaft.

    9. Install the shaft to the front support of the horizontal stand. Turn the opened block down. Safety it with the eyebolt and the nut.

    14. SUBTASK 72-50-00-530-072 Install the LP Turbine Module without Turbine Exhaust Case to the Shipping Equipment

    1. Refer to Figure and Figure

    2. Open the block of the front support, (part of the IAE 5F10149 Shipping frame 1 off). Remove the shaft from the front support.

    3. Install the shaft into the front end of the LP turbine shaft. Lock the shaft to the LP turbine shaft with the ringnut C.

    4. Lower the LP turbine module without turbine exhaust case carefully to the front support of the shipping frame.

    5. Move the LP turbine module without turbine exhaust case slowly down and align the shaft in the front support of the shipping frame.

    6. Make sure that the shaft is correctly aligned to the front support. Align the bolt holes of the LP turbine case front flange with the bolt holes of the shipping frame.

    7. Attach the LP turbine case front flange with 28 capscrews to the shipping frame. Tighten the screws.

    8. Turn the ringnuts A and B to the support to safety the LP turbine case to the front support of the shipping frame. Tighten the ringnuts A and B.

    9. Turn the opened block down and safety the support. Engage the eye bolt. Tighten the nut of the eye bolt.

    15. SUBTASK 72-50-00-530-073-A00 V2500-A1: Release the Assembled Fixture from the LP Turbine Module without Turbine Exhaust Case

    1. Refer to Figure.

    2. Install the IAE 1M14005 Torque wrench 1 off to the ring nut (part of the IAE 1M14002 Support fixture).

    3. Assemble the IAE 1F10019 Mechanical wrench 1 off with the IAE 1R19787 Sling 1 off to the torque wrench.

    4. Install the IAE 1M14006 Immobilizing fixture 1 off on to the rear end of the LP turbine shaft. Safety the immobilizing fixture to the mechanical wrench with the immobilizer plate.

    5. Operate the mechanical wrench to release the ring nut.

    6. Remove the immobilizing fixture, the mechanical wrench with the sling and the torque wrench from the lifting fixture.

    7. Remove the ring nut from the rear end of the LP turbine shaft.

    16. SUBTASK 72-50-00-530-073-B00 V2500-A5: Release the Assembled Fixture from the LP Turbine Module without Turbine Exhaust Case

    1. Refer to Figure.

    2. Install the IAE 1M14005 Torque wrench 1 off to the ring nut (part of the IAE 1M14002 Support fixture).

    3. Assemble the IAE 1F10019 Mechanical wrench 1 off with the IAE 1R19787 Sling 1 off to the torque wrench.

    4. Install the IAE 1M14139 Immobilizing fixture 1 off on to the rear end of the LP turbine shaft. Safety the immobilizing fixture to the mechanical wrench with the immobilizer plate.

    5. Operate the mechanical wrench to release the ring nut.

    6. Remove the immobilizing fixture, the mechanical wrench with the sling and the torque wrench from the lifting fixture.

    7. Remove the ring nut from the rear end of the LP turbine shaft.

    17. SUBTASK 72-50-00-530-074-A00 V2500-A1: Install the Guide Pogo Stick and Remove the Lifting Fixture

    1. Refer to Figure and Figure

    2. Install the IAE 1F10074 Guide pogo stick 1 off to the inner diameter of the LP turbine shaft. Use an applicable webbing sling.

    3. Make sure that the centering diameter of the guide pogo stick is installed correctly to the LP turbine shaft. Turn the screw clockwise at the rear end of the guide pogo stick to safety the guide pogo stick to the LP turbine shaft.

    4. Put the IAE 1F10075 Support pedestal B 1:ej262. off below the guide pogo stick. Move the support pedestal B near to the rear end of the guide pogo stick.

    5. Turn the handwheel A until the end of the pedestal-screw touches the guide pogo stick. Lock the pedestal-screw with the handwheel B.

    6. Attach the IAE 1F10052 Two cables sling 1 off to the rear spools of the support arms.

    7. Release the 19 screws that attach the assembled fixture to the rear flange of the LP turbine case.

    8. Move the assembled fixture rearwards, near to the pedestal B.

    9. Install the IAE 1F10075 Support pedestal A 1 off between the rear flange of the LP turbine case and the support fixture.

    10. Remove the support pedestal B.

    11. Remove the assembled fixture from the guide pogo stick.

    18. SUBTASK 72-50-00-530-074-B00 V2500-A5: Install the Guide Support and Remove the Lifting Fixture

    1. Refer to Figure and Figure

    2. Install the IAE 1P16377 Guide support 1 off to the inner diameter of the LP turbine shaft. Use an applicable webbing sling.

    3. Make sure that the centering diameter of the guide support is installed correctly to the LP turbine shaft. Turn the screw clockwise at the rear end of the guide support to safety the guide support to the LP turbine shaft.

    4. Put the IAE 1F10075 Support pedestal B 1:ej262. off below the guide support. Move the support pedestal B near to the rear end of the guide support.

    5. Turn the handwheel A until the end of the pedestal-screw touches the guide support. Lock the pedestal-screw with the handwheel B.

    6. Attach the IAE 1F10052 Two cables sling 1 off to the rear spools of the support arms.

    7. Release the 19 screws that attach the assembled fixture to the rear flange of the LP turbine case.

    8. Move the assembled fixture rearwards, near to the pedestal B.

    9. Install the IAE 1F10075 Support pedestal A 1 off between the rear flange of the LP turbine case and the support fixture.

    10. Remove the support pedestal B.

    11. Remove the assembled fixture from the guide support.

    19. SUBTASK 72-50-00-530-075–A00 V2500–A1: Install the Supporting Fixture

      NOTE

      Measure the inner hub diameter of Stage 7 Disk before you install the supporting fixture.

      NOTE

      If the inner hub diameter is 12.595 in. (319.9 mm) use IAE 1M14086 Supporting fixture
      If the inner hub diameter is 12.441 in. (316 mm) use IAE 1M14461 Supporting fixture

    1. Refer to Figure and Figure

    2. Install the IAE 1M14086 Supporting fixture or the IAE 1M14461 Supporting fixture 1 off at the 12 o'clock position to LP turbine case. Attach the supporting fixture with the four screws.

    3. Attach the two clamps with the hand knobs to the stage 7 turbine disk.

    20. SUBTASK 72-50-00-530-075–B00 V2500–A5: Install the Supporting Fixture

      NOTE

      Measure the inner hub diameter of Stage 7 Disk before you install the supporting fixture.

      NOTE

      If the inner hub diameter is 12.595 in. (319.9 mm) use IAE 1M14143 Support fixture
      If the inner hub diameter is 12.441 in. (316 mm) use IAE 1M14461 Supporting fixture

    1. Refer to Figure and Figure

    2. Install the IAE 1M14143 Support fixture or the IAE 1M14461 Supporting fixture 1 off at the 12 o'clock position to LP turbine case. Attach the supporting fixture with the four screws.

    21. SUBTASK 72-50-00-530-076 Disassemble the Lifting Fixture and the Support Fixture

    1. Refer to Figure

    2. Remove the IAE 1M14003 Support arm 2 off from the IAE 1M14000 Lifting fixture 1 off.

    3. Remove the three nuts on the guide sleeves (part of the lifting fixture).

    4. Use hoist equipment. Disengage the lifting fixture from the support fixture.

    22. SUBTASK 72-50-00-530-077-A00 V2500-A1: Remove the Guide Pogo Stick from the LP Turbine Case and Rotor Assembly

    1. Refer to Figure

    3. Release and remove the IAE 1F10074 Guide pogo stick 1 off from the LP turbine shaft. Use an applicable webbing sling.

    23. SUBTASK 72-50-00-530-077-B00 V2500-A5: Remove the Guide Support from the LP Turbine Case and Rotor Assembly

    1. Refer to Figure

    3. Release and remove the IAE 1P16377 Guide support 1 off from the LP turbine shaft. Use an applicable webbing sling.

    24. SUBTASK 72-50-00-530-078 Put the Desiccant in to the MVP Bag

    1. CAUTION

      MAKE SURE THAT THE DESICCANT BAGS WILL NOT BE DAMAGED OR RUPTURED. IF PARTICLES OF DESICCANT ENTER THE LP TURBINE MODULE, REMOVE THE LP TURBINE MODULE FROM THE SHIPPING FRAME. DISASSEMBLE THE LP TURBINE MODULE AS FAR AS NECESSARY TO REMOVE ALL DESICCANT PARTICLES COMPLETELY (REFER TO TASK 72-50-00-030-000 AND TASK 72-50-10-030-000).

      Put the necessary quantity of CoMat 12-022 DESICCANT SELF INDICATING in to the MVP bag of the shipping equipment.

    25. SUBTASK 72-50-00-530-079 Put the Engine Documentation in to the Shipping Equipment

    1. Put the engine documentation in to a CoMat 12-004 P.V.C. SHEET.

    2. Put the PVC sheet in to the MVP bag of the shipping equipment.

    26. SUBTASK 72-50-00-530-080 Close the Shipping Equipment

    1. Refer to Figure

    2. Seal the MVP bag.

    3. Install hoist equipment to the upper half of the shipping equipment.

    4. Install the upper half of the shipping equipment to the lower half.

    5. Safety the two halves of the shipping equipment with the attaching parts.

    27. Figure: Open the shipping equipment

    Open the shipping equipment

    Figure: V2500-A1: Install the guide pogo stick to the LP turbine module without turbine exhaust case

    V2500-A1: Install the guide pogo stick to the LP turbine module without turbine exhaust case

    Figure: V2500-A5: Install the guide support to the LP turbine module without exhaust case

    V2500-A5: Install the guide support to the LP turbine module without exhaust case

    Figure: Install the lifting fixture and remove the guide pogo stick

    Install the lifting fixture and remove the guide pogo stick

    Figure: V2500-A5: Install the lifting fixture and remove the guide pogo stick

    V2500-A5: Install the lifting fixture and remove the guide pogo stick

    Figure: Install the lifting fixture on to the LP turbine module without turbine exhaust case

    Install the lifting fixture on to the LP turbine module without turbine exhaust case

    Figure: Install the shaft and the support

    Install the shaft and the support

    Figure: Install/remove the supporting fixture to/from the LP turbine module without turbine exhaust case

    Install/remove the supporting fixture to/from the LP turbine module without turbine exhaust case

    Figure: Removal of the LP turbine module without turbine exhaust case from the horizontal stand

    Removal of the LP turbine module without turbine exhaust case from the horizontal stand

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Corrected typo error in number of screws. (Editorial)

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:C4689
Supply Number:CoMat 12-004
Type:sp01
Supply Short Name:CoMat 12-004 P.V.C. SHEET
Supply Name:CoMat 12-004 P.V.C. SHEET
Specification Groups:
Doc NumberType
RENOLIT 5102411 or RENOLIT SKY MATT
Suppliers:
ManufacturerRemarks
C4689
V572V
Manufacturer Code:K6835
Supply Number:CoMat 12-022
Type:sp01
Supply Short Name:CoMat 12-022 DESICCANT SELF INDICATING
Supply Name:CoMat 12-022 DESICCANT SELF INDICATING
Specification Groups:
Doc NumberType
SILICA GEL B.S.3523 COBALT CHLORIDE TYPE
Suppliers:
ManufacturerRemarks
K6835
22627
LOCAL
K8888
KD685
Manufacturer Code:0AM53
Tool Number:IAE 1F10019
Tool Name:IAE 1F10019 Mechanical wrench
Manufacturer Code:0AM53
Tool Number:IAE 1F10052
Tool Name:IAE 1F10052 Two cables sling
Manufacturer Code:0AM53
Tool Number:IAE 1F10074
Tool Name:IAE 1F10074 Guide pogo stick
Manufacturer Code:0AM53
Tool Number:IAE 1F10075
Tool Name:IAE 1F10075 Support pedestal
Manufacturer Code:0AM53
Tool Number:IAE 1F10080
Tool Name:IAE 1F10080 Horizontal stand
Manufacturer Code:0AM53
Tool Number:IAE 1M14000
Tool Name:IAE 1M14000 Lifting fixture
Manufacturer Code:0AM53
Tool Number:IAE 1M14002
Tool Name:IAE 1M14002 Support fixture
Manufacturer Code:0AM53
Tool Number:IAE 1M14003
Tool Name:IAE 1M14003 Support arm
Manufacturer Code:0AM53
Tool Number:IAE 1M14005
Tool Name:IAE 1M14005 Torque wrench
Manufacturer Code:0AM53
Tool Number:IAE 1M14006
Tool Name:IAE 1M14006 Immobilizing fixture
Manufacturer Code:0AM53
Tool Number:IAE 1M14086
Tool Name:IAE 1M14086 Supporting fixture
Manufacturer Code:0AM53
Tool Number:IAE 1M14127
Tool Name:IAE 1M14127 Support plate
Manufacturer Code:0AM53
Tool Number:IAE 1M14139
Tool Name:IAE 1M14139 Immobilizing fixture
Manufacturer Code:0AM53
Tool Number:IAE 1M14143
Tool Name:IAE 1M14143 Support fixture
Manufacturer Code:0AM53
Tool Number:IAE 1M14146
Tool Name:IAE 1M14146 Support plate
Manufacturer Code:0AM53
Tool Number:IAE 1M14461
Tool Name:IAE 1M14461 Supporting fixture
Manufacturer Code:0AM53
Tool Number:IAE 1P16377
Tool Name:IAE 1P16377 Guide support
Manufacturer Code:0AM53
Tool Number:IAE 1R19787
Tool Name:IAE 1R19787 Sling
Manufacturer Code:0AM53
Tool Number:IAE 5F10149
Tool Name:IAE 5F10149 Shipping frame
Manufacturer Code:0AM53
Tool Number:IAE 5F10167
Tool Name:IAE 5F10167 Shipping equipment
