TASK 72-50-22-300-097 LPT Stage 6 Vane - Blend Repair Of Surface Damage, Repair-097 (VRS4433)

DMC:V2500-A0-72-50-2206-01A-649A-C|Issue No:003.00|Issue Date:2014-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-22-300-097 LPT Stage 6 Vane - Blend Repair Of Surface Damage, Repair-097 (VRS4433)

Effectivity

FIG/ITEM

PART NO.

01-175

3A2486

01-175

3A3127

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 6 turbine vane

Inconel 713 C

General

Price and availability - none

The practices and processes referred to in the procedure by TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to the SPM TASK 70-23-05-230-501 and TASK 70-35-21-350-501.
Equivalent equipment may be used.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-22-350-078 Blend Repair the Stage 6 Turbine Vane

    1. Refer to Figure and Figure.

      NOTE

      1. Refer to SPM TASK 70-35-21-350-501 for blending surface damage.

      2. Do not blend repair dents except on leading edge and trailing edge.

      3. For local blending use a length to depth ratio of 5:1 minimum, refer to Figure.

      4. The minimum distance between the blends at leading and trailing edge is 0.500 in. (12.7 mm).

      5. Nicks within acceptable limits do not require blend repair. If present remove raised material only.

      6. Repeated blending in one place is acceptable to the specified maximum depth, measured from the initial unblended surface.

      2. Blend the surface in area A1.

      1. Maximum permitted blend depth from initial surface is 0.010 in. (0.25 mm).

      2. The blended area must not be more than 10 percent of area A1.

      3. Blend the surface in area A2.

      1. No blends permitted.

      4. Blend the surface in area A3.1.

      1. Maximum permitted blend depth from initial surface is 0.020 in. (0.51 mm).

      2. The maximum permitted total depth of opposite blends on leading and trailing edge is 0.020 in. (0.51 mm).

      3. The total length of all blends on leading edge must not be more than 0.700 in. (17.78 mm).

      5. Blend the surface in area A3.2.

      1. Maximum permitted blend depth from initial surface is 0.040 in. (1.00 mm).

      2. The maximum permitted total depth of opposite blends on leading and trailing edge is 0.100 in. (2.54 mm).

      3. The total length of all blends on leading edge must not be more than 0.700 in. (17.78 mm).

      6. Blend the surface in area A4.1.

      1. Maximum permitted blend depth from initial surface is 0.020 in. (0.51 mm).

      2. The maximum permitted total depth of opposite blends on leading and trailing edge is 0.020 in. (0.51 mm).

      3. The total length of all blends on the trailing edge must not be more than 0.700 in. (17.78 mm).

      7. Blend the surface in area A4.2.

      1. Maximum permitted blend depth from initial surface is 0.100 in. (2.54 mm).

      2. The maximum permitted total depth of opposite blends on leading and trailing edge is 0.100 in. (2.54 mm).

      3. The total length of all blends on trailing edge must not be more than 0.700 in. (17.78 mm).

      8. Blend the surface in area A5.

      1. Maximum permitted blend depth from initial surface is 0.010 in. (0.25 mm).

      2. The blended area must not be more than 10 percent of area A5.

      9. Blend the surface in area A6.

      1. Maximum permitted blend depth from initial surface is 0.010 in. (0.25 mm).

      2. The blended area must not be more than 10 percent of area A6.

      10. Blend the surface in area A7.

      1. No blends permitted.

      11. Blend the surface in area A8.

      1. Maximum permitted blend depth from initial surface is 0.010 in. (0.25 mm).

      2. The blended area must not be more than 10 percent of area A8.

      12. Blend the surface in area A9.

      1. Maximum permitted blend depth from initial surface is 0.010 in. (0.25 mm).

      2. Blend cracks only. Blending of nicks, dents and pits is not permitted.

      3. Remove the raised material.

    2. SUBTASK 72-50-22-230-125 Examine the Blended Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

      2. Use high sensitivity level.

      3. No cracks are permitted.

    3. SUBTASK 72-50-22-220-299 Do the Post Repair Inspection

    1. Refer to Figure

      2. Examine the surface of the blended areas visually.

      1. The blended surface must be as smooth as the initial surface.

      2. Edges and corners are not permitted.

      3. Examine the blended areas dimensionally.

      1. The blend ratio must be in the limits.

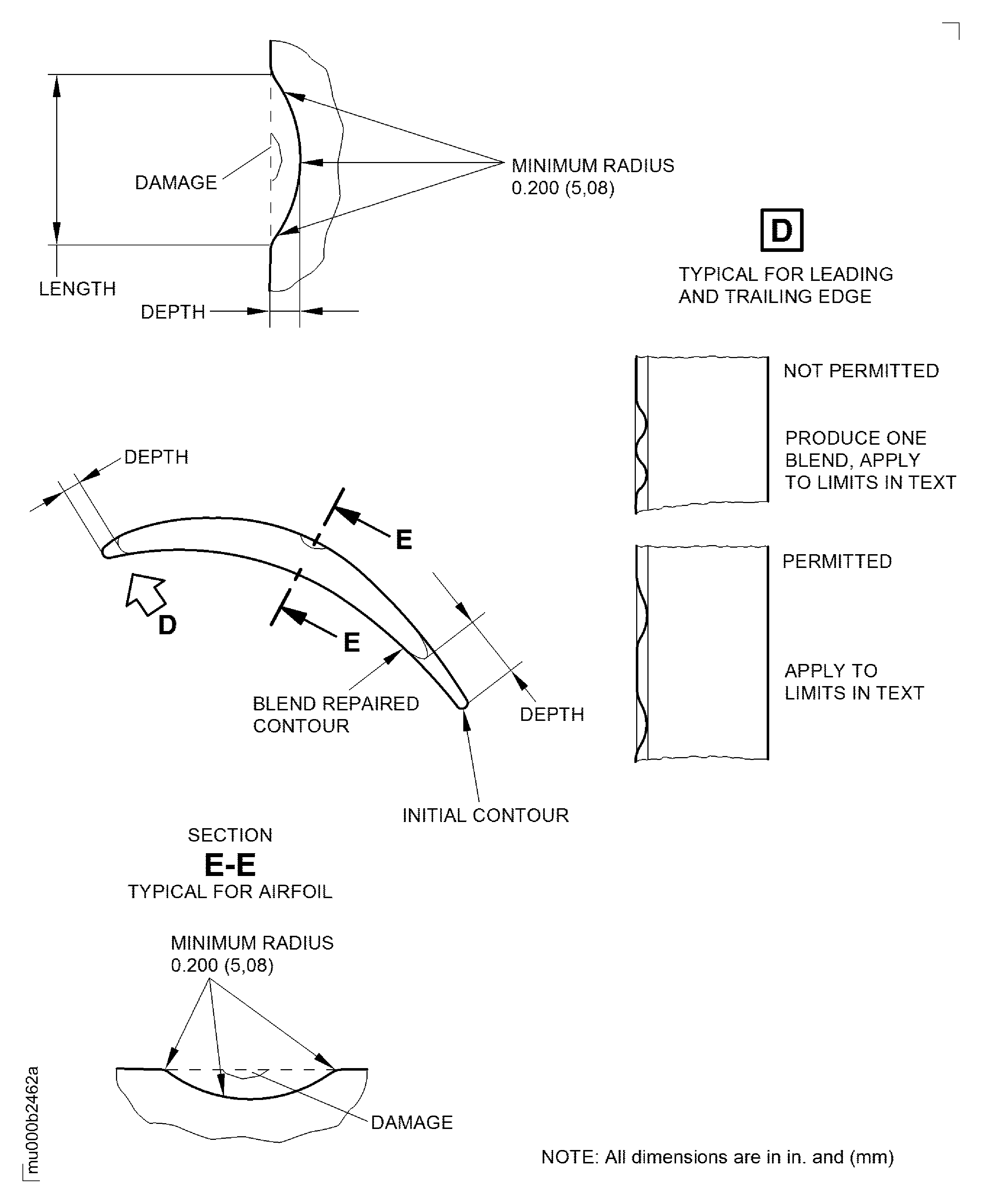

    4. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised figures. (00VM515A)
