TASK 72-50-23-300-014 LPT Stage 4 Outer Shroud Seal Segment - Blend Repair, Repair-014 (VRS4091)

DMC:V2500-A0-72-50-2304-00A-649A-C|Issue No:003.00|Issue Date:2017-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-23-300-014 LPT Stage 4 Outer Shroud Seal Segment - Blend Repair, Repair-014 (VRS4091)

Effectivity

FIG/ITEM

PART NO.

01-250

3A0723

01-250

3A3090

Material of component

PART IDENT

IAE SYMBOL

MATERIAL

Stage 4 shroud seal segment

-

Hastelloy X

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Gage setLOCALGage set
Action swivel viseLOCALAction swivel vise
Dial caliperLOCALDial caliper
Illuminated comparator magnifierLOCALIlluminated comparator magnifier

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-23-350-057 General Instructions for the Blend Repair of the Stage 4 Shroud Seal Segment (01-250)

      NOTE

      1. Keep material removal to the minimum to remove damage.

      2. Cracks may not be blended with this repair.

      1. Blend the nicks, dents and burrs.

      1. Use files, stones and action swivel vise to blend the shroud seal segments.

      2. Polish the blended areas.

      1. Use fine stones to make the blended surface as smooth as the initial surface.

        Edges and corners are not permitted.

    2. SUBTASK 72-50-23-350-058 Blend Repair the Stage 4 Shroud Seal Segments (01-250)

    1. Refer to: Figure

      2. Blend in area A1.

      1. For local blend repair use a length to depth ratio of 5:1 minimum, refer to Figure.

        The number of blends is not restricted, if there is a number of damage marks together, blend the whole area to the depth of 0.010in. (0.25 mm).

        Minimum distance between blends 0.500in. (12.7 mm).

        The surface texture of blended surfaces must be equal or better than, that of the surrounding area.

      3. Blend in area A2.

      1. Dress to remove raised material only.

    3. SUBTASK 72-50-23-230-059 Examine the Stage 4 Shroud Seal Segment (01-250) after Blend Repair for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        No cracks are permitted.

    4. SUBTASK 72-50-23-220-074 Examine the Stage 4 Shroud Seal Segment (01-250) after Blend Repair

      1. Examine the blended areas dimensionally.

      1. Refer to Figure.

        Measure the dimensions of the blended areas.

        The blend ratio must be in the limits given in Step.

        Use dial caliper, gage set and illuminated comparator magnifier.

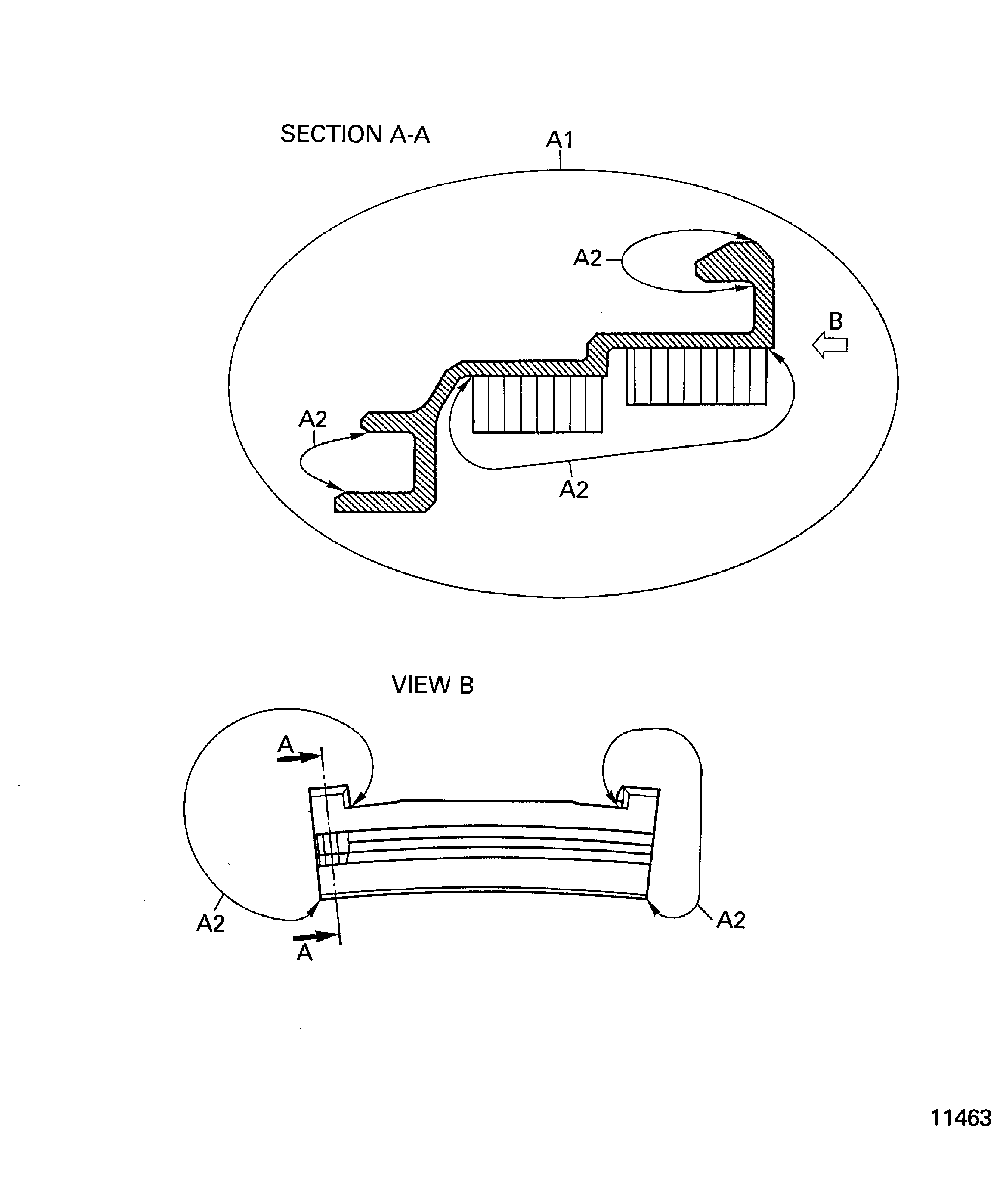

    5. Figure: Blend repair of the stage 4 shroud seal segment

    Blend repair of the stage 4 shroud seal segment

    Figure: Blend ratio for local blend repair

    Blend ratio for local blend repair

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Incorporate VRS 4091/A2. (EC 88VM505B)
