TASK 72-50-24-840-001 LPT Inner Diffuser Duct Segment - Replace The Sheetmetal Fin, Rework-001 - SBE 72-0294

DMC:V2500-A0-72-50-2401-03A-920A-C|Issue No:002.00|Issue Date:2017-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-24-840-001 LPT Inner Diffuser Duct Segment - Replace The Sheetmetal Fin, Rework-001 - SBE 72-0294

Effectivity

FIG/ITEM

PART NO.

01-010

3A0771

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Refer to the indicated Service Bulletin for specfic application requirements.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-24-320-059 Remove the Sheetmetal Fin from the Inner Duct Segment

      1. Machine off the metal rim seal.

      1. Use pneumatic hand held grinder and rotary file or equivalent.

        Refer to Figure.

    2. Break sharp edges.

    2. SUBTASK 72-50-24-850-051 Reidentify the Inner Duct Segment with the New Part Number

      1. Reidentify with new part number.

      1. PART NUMBER BEFORE - 3A0771.

        NEW PART NUMBER - 3A2493.

        Depending on the level of disassembly (module level or piece part) reidentify each reworked part at one of the marking positions.

        Refer to Figure.

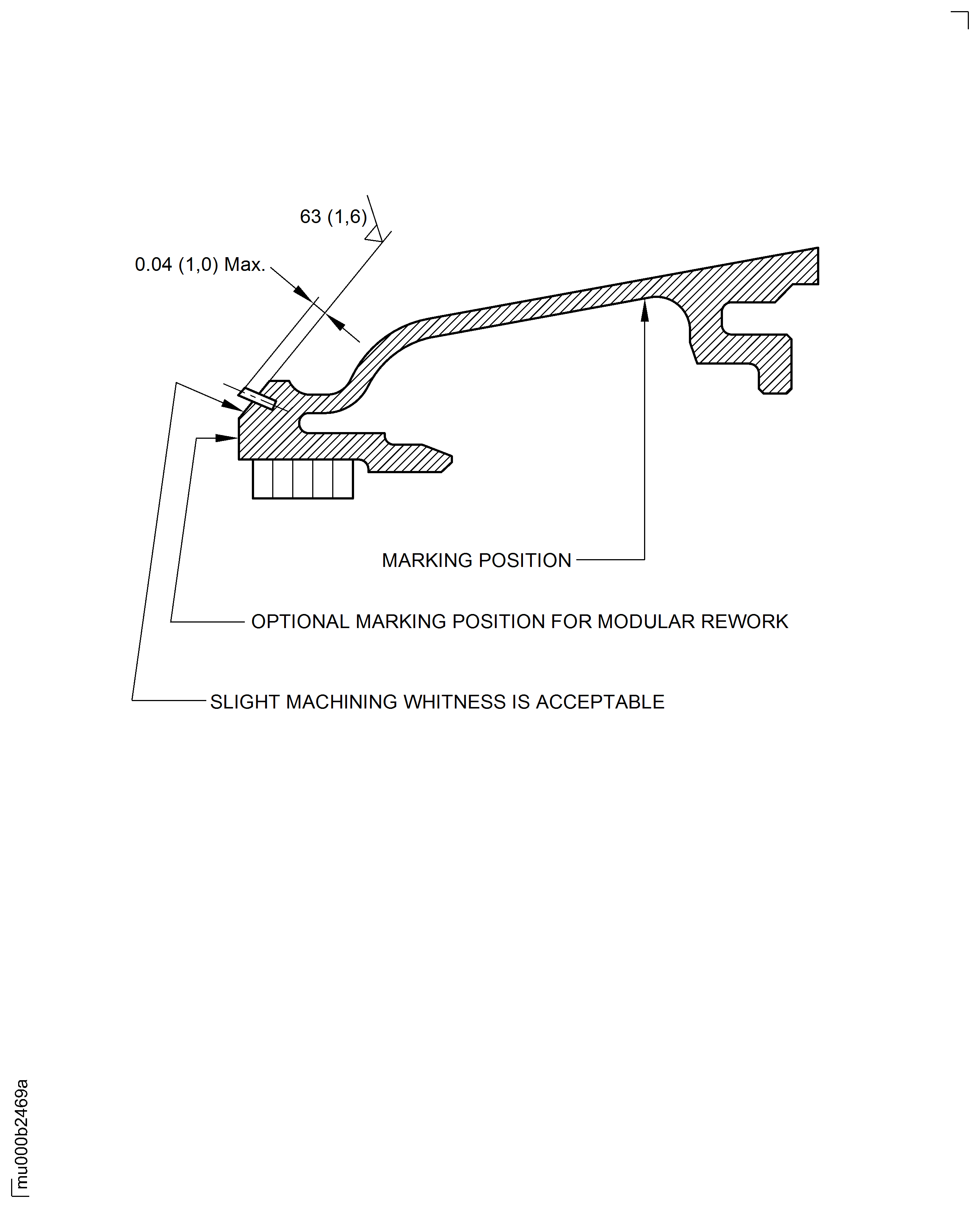

    3. Figure: Removal fo sheetmetal fin from the inner duct segment

    Removal fo sheetmetal fin from the inner duct segment

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised procedure. (SB 72-0294)
