TASK 72-50-24-300-036 LPT Inner Diffuser Duct Support - Replace The Headless Shoulder Pin, Repair-036 (VRS4319)

DMC:V2500-A0-72-50-2402-02A-920A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-24-300-036 LPT Inner Diffuser Duct Support - Replace The Headless Shoulder Pin, Repair-036 (VRS4319)

Effectivity

FIG/ITEM

PART NO.

01-100

3A2201

01-100

3A2202

01-100

3A2525

01-100

3A2529

Material of component

PART IDENT

SYMBOL

MATERIAL

Inner diffuser support assembly

C263

Headless shoulder pin

C263

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

  1. For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-23-05-230-501.

  2. Equivalent equipment may be used.

NOTE

To identify the consumable materials refer to the OPCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-149 DRY ICELOCALCoMat 02-149
CoMat 03-026 LIQUID NITROGENLOCALCoMat 03-026

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Headless shoulder pin3A01211

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-24-320-056 Remove the Worn Headless Shoulder Pin

    1. Refer to Figure.

      2. Hit out lightly the headless shoulder pin.

      1. Use minimum of force to prevent damage of the flange.

    2. SUBTASK 72-50-24-230-097 Examine the Inner Diffuser Support Assembly for Cracks

      1. Do the test for cracks at the adjacent flange area of the hole.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use medium sensitivity level.

        No cracks are permitted.

    3. SUBTASK 72-50-24-220-161 Examine the Inner Diffuser Support Assembly for Damage

    1. Refer to Figure.

      2. Examine the inner diameter of the pin hole.

      1. Fine scratches are permitted.

        Use needle files and stones to remove raised material.

    4. SUBTASK 72-50-24-450-052 Install the New Headless Shoulder Pin

    1. Refer to Figure.

      2. Freeze the headless shoulder pin.

      3. Install the headless shoulder pin into the hole.

      1. Use minimum of force to prevent damage of the flange.

        The shoulder of the headless shoulder pin must touch the flange face.

        Use a hammer.

    5. SUBTASK 72-50-24-220-162 Do the Post Repair Inspection

      1. Examine the installed headless shoulder pin for correct installation.

      1. Make sure that the headless shoulder pin is installed tightly in position.

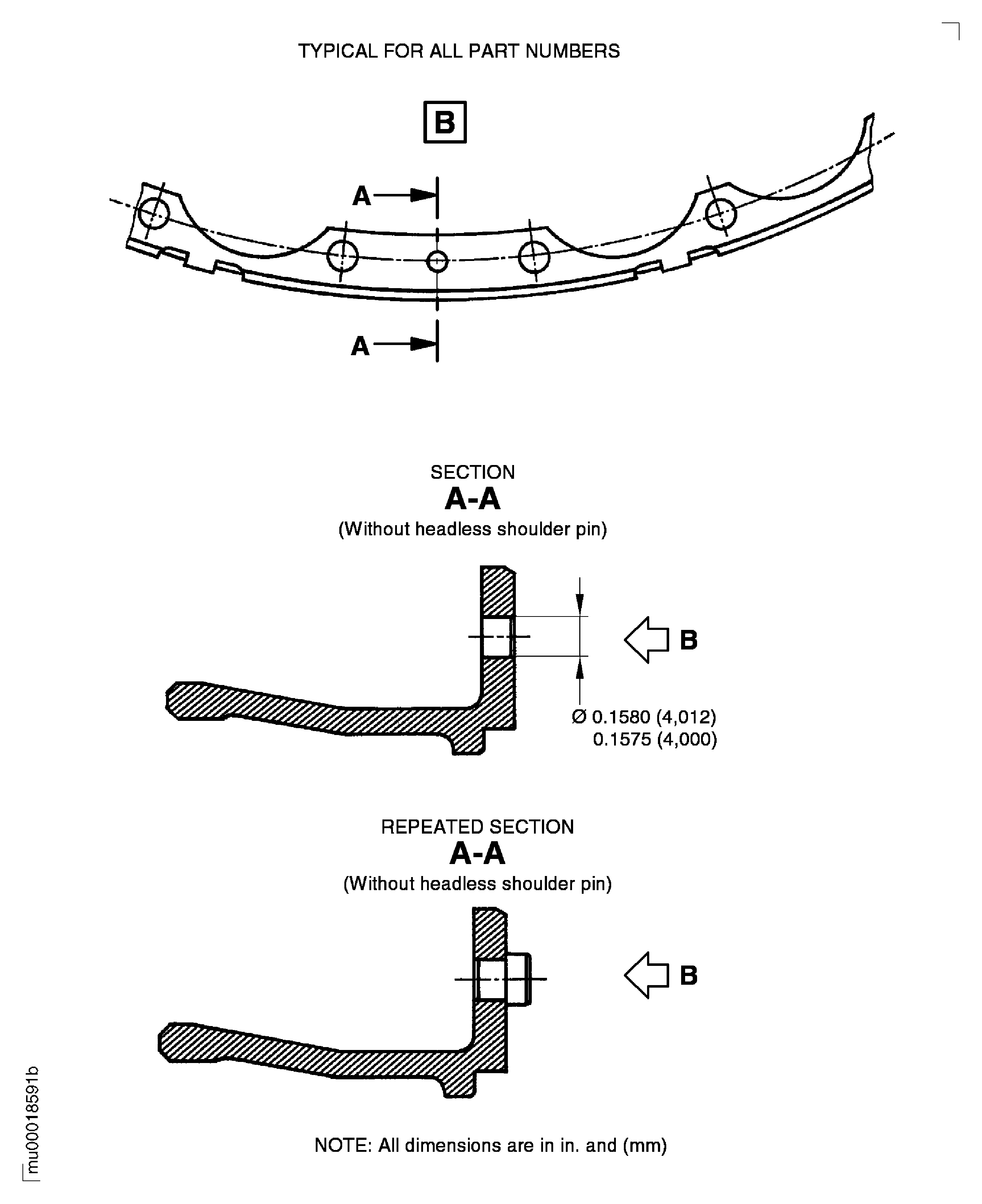

    6. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
