TASK 72-50-25-300-027 LPT Outer Diffuser Segment - Blend Repair, Repair-027 (VRS4414)

DMC:V2500-A0-72-50-2501-02A-649A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-25-300-027 LPT Outer Diffuser Segment - Blend Repair, Repair-027 (VRS4414)

Effectivity

FIG/ITEM

PART NO.

01-200

3A2482

Material of component

PART IDENT

IAE

SYMBOL

MATERIAL

Outer diffuser assembly segment

MTS1348B/

INCONEL 939B

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-23-05-230-501.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Dial caliperLOCALDial caliper
Illuminated comparator magnifierLOCALIlluminated comparator magnifier
Radius gage setLOCALRadius gage set
External dial caliperLOCALExternal dial caliper

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-25-350-001 General Instructions for the Blend Repair of the Outer Diffuser Assembly Segment

      1. Blend nicks, dents and pits of outer diffuser assembly segment.

      1. Use files and stones to remove nicks, dents and pits.

      2. Polish blended areas.

      1. Use fine stones to make blended surface as smooth as initial surface.

        Edges and corners are not permitted.

    2. SUBTASK 72-50-25-350-002 Blend Repair the Outer Diffuser Assembly Segment

      NOTE

      1. Keep the removal of material to the minimum necessary to remove the damage.

      2. For the local blending use a length to depth ratio of 5:1 minimum. Refer to Figure.

      3. Unless specified differently, there is no limit for the number of blends. If there is a number of damage marks together, blend the whole area to the specified depth. The minimum distance between the blends is 0.500 in. (12.7 mm).

      1. Blend repair in area A1.

      1. Maximum permitted depth of blend repair is 0.008 in. (0.20 mm).

      2. Blend repair in area A2.

      1. Remove lifted material only.

      3. Blend repair holes and locating pins.

      1. Remove lifted material only.

    3. SUBTASK 72-50-25-230-001 Examine the Outer Diffuser Assembly Segment for Cracks

      1. Do test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use medium sensitivity level.

        No cracks are permitted.

    4. SUBTASK 72-50-25-220-001 Do the Post Repair Inspection

      1. Examine the surface finish.

      1. Surface finish of all repairs must be as good as the adjacent areas.

      2. Examine blend repaired areas dimensionally.

      1. Refer to Figure.

        Use dial caliper and external dial caliper to measure the dimensions of the blended areas.

        Blend ratio must be in limits given in Step.

        Use radius gage set to measure radii of blended areas.

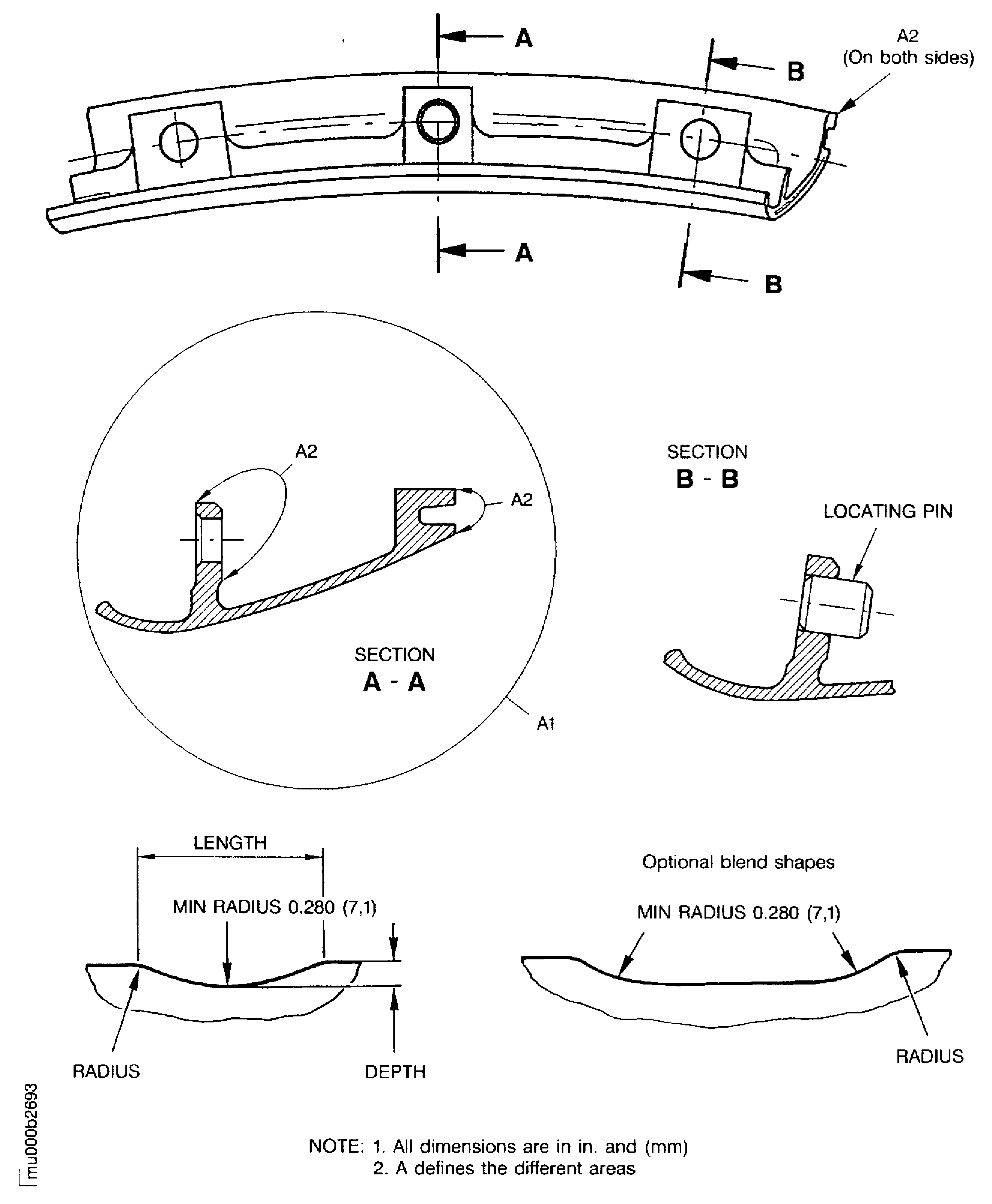

    5. Figure: Blend repair of the outer diffuser segment assembly

    Blend repair of the outer diffuser segment assembly

Requirements After Job Completion

Follow-On Conditions

NONE
