TASK 72-50-32-300-028 LPT Stage 3 Blade - Blend Repair Cracks In The Shroud Notch Radius, Repair-028 (VRS4206)

DMC:V2500-A0-72-50-3203-02A-649A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-32-300-028 LPT Stage 3 Blade - Blend Repair Cracks In The Shroud Notch Radius, Repair-028 (VRS4206)

Effectivity

FIG/ITEM

PART NO.

01-200

3A0883

01-200

3A2053

01-200

3A2055

01-200

3A2373

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Stage 3 turbine blade

Inconel 100

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to the SPM TASK 70-23-05-230-501 and SPM TASK 70-35-21-350-501.
Equivalent equipment may be used.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-32-350-080 Blend Repair the Shroud Notch Radius Cracks of the Stage 3 Turbine Blade

    1. Refer to Figure or Figure.

      NOTE

      1. Refer to the SPM TASK 70-35-21-350-501 for blending surface damage.

      2. Do not change the shroud angles or other shroud dimension by blend repair.

      3. Only one option can be applied to one notch radius.

      4. Do not use rotating handtools.

    2. Blend repair the shroud notches.

    2. SUBTASK 72-50-32-230-070 Examine the Blended Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use high sensitivity level.

        No cracks are permitted.

    3. SUBTASK 72-50-32-220-102 Do the Post Repair Inspection

    1. Refer to Figure or Figure.

      2. Examine the surface of the blended areas visually.

      1. The blended surface must be as smooth as the initial surface. Edges and corners are not permitted.

    3. Examine the blended areas dimensionally.

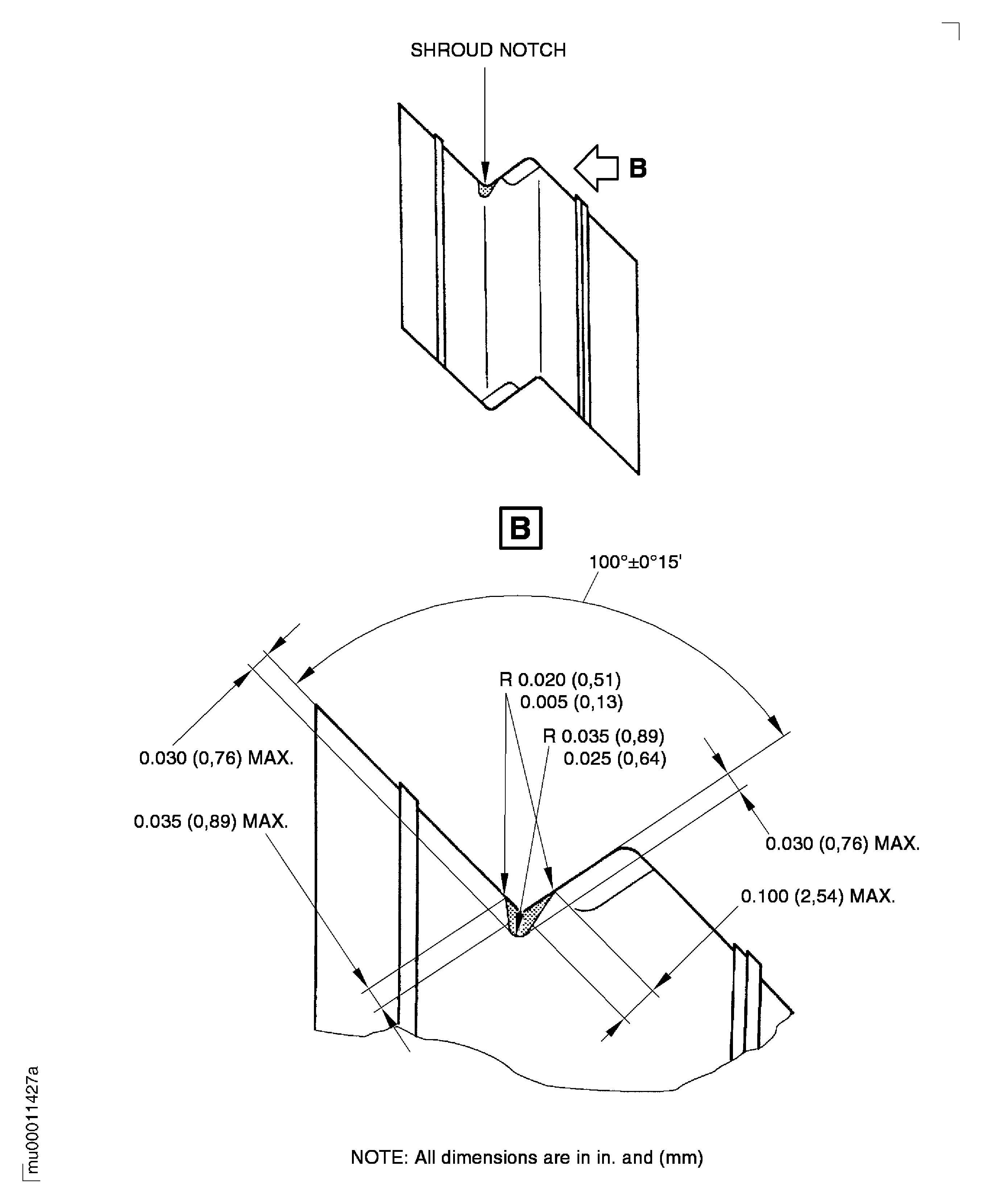

    4. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

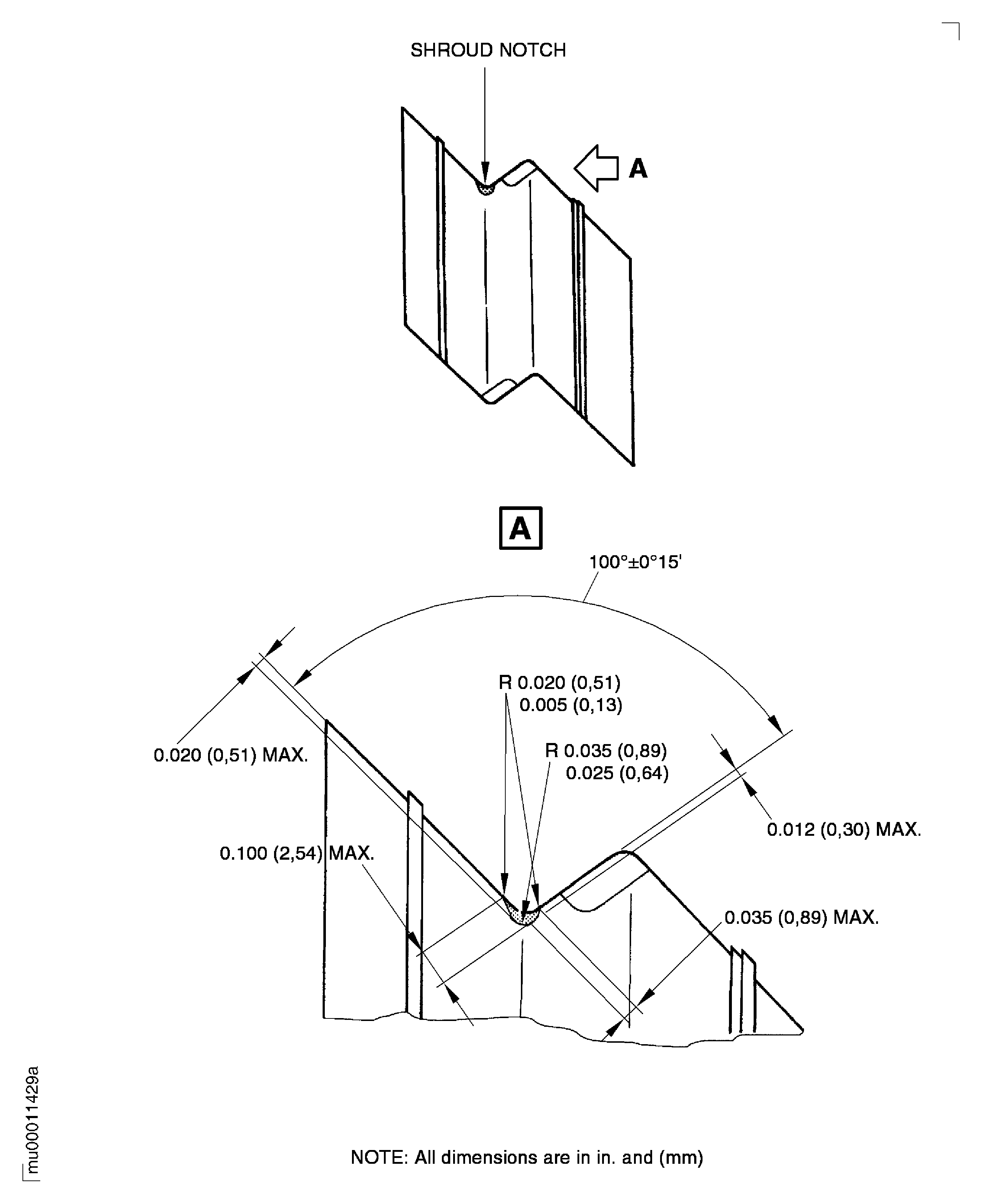

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Editorial correction due to conversion
