TASK 72-50-32-300-002 LPT Stage 7 Blade - Blend Repair On The Knife Edges, Repair-002 (VRS4180)

DMC:V2500-A0-72-50-3207-01A-649A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-32-300-002 LPT Stage 7 Blade - Blend Repair On The Knife Edges, Repair-002 (VRS4180)

Effectivity

FIG/ITEM

PART NO.

01-010

3A0887

01-010

3A1807

01-010

3A2477

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Stage 7 turbine blades

Inconel 713C

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Dial caliperLOCALDial caliper
Illuminated comparator magnifierLOCALIlluminated comparator magnifier
Radius gage setLOCALRadius gage set

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-32-350-053 General Instructions for the Blend Repair of the Knife Edge Seals of the Stage 7 Turbine Blades

      1. Blend the nicks, dents or cracks on the knife edge seals of the stage 7 turbine blades.

      1. Use files and stones to remove the nicks, dents or cracks.

      2. Polish the blended areas.

      1. Use fine stones to make the blended surface as smooth as the initial surface. Edges and corners are not permitted.

    2. SUBTASK 72-50-32-350-054 Blend Repair the Knife Edge Seals of the Stage 7 Turbine Blades

      NOTE

      1. Keep the removal of material to the minimum necessary to remove the damage.

      2. The blend shapes are shown in Figure.

      3. Do not try to make straight bent knife edges.

      4. The total area of blends on each knife edge and on the set of blades must not be more than 0.124 sqin (80 sqmm). The repaired blades must be symmetrically distributed around the circumference.

      1. Blend repair the knife edges.

      1. The maximum permitted depth of the blend repair is 0.040 in. (1.0 mm).

        For the blend ratios, refer to Figure.

    3. SUBTASK 72-50-32-230-057 Examine the Knife Edge Seals of the Stage 7 Turbine Blades for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        No cracks are permitted.

    4. SUBTASK 72-50-32-220-087 Do the Post Repair Inspection

      1. Examine the surface finish.

      1. Use illuminated comparator magnifier.

        The surface finish of all blended areas must be as good as the adjacent areas.

      2. Examine the blended areas dimensionally.

      1. Measure the dimensions of the blended areas with dial caliper.

        The limits are given in Step.

        Use radius gage set to examine the radius at each blend repaired area.

        Refer to Figure.

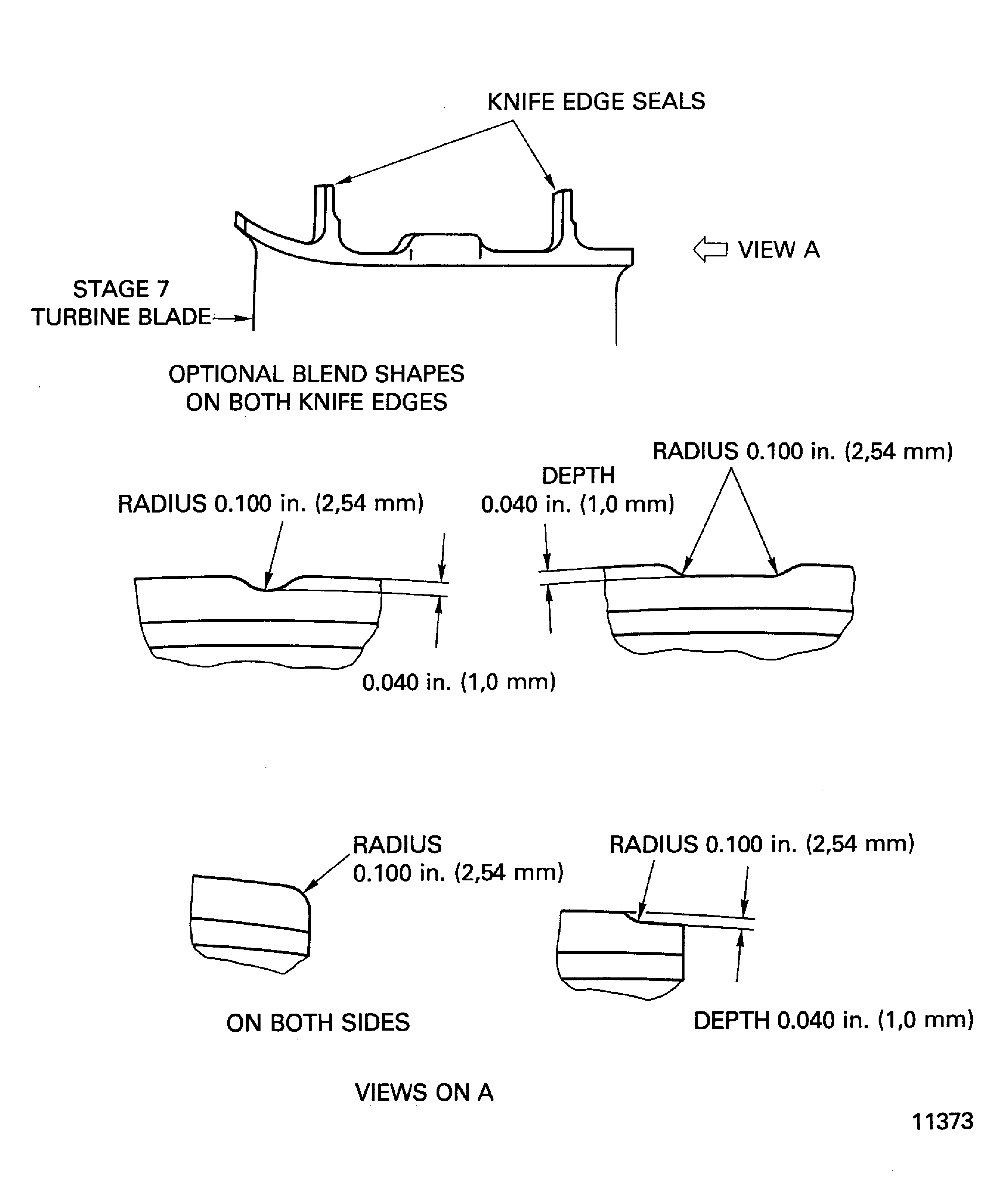

    5. Figure: Blend repair the knife edge seals of the stage 7 turbine blades

    Blend repair the knife edge seals of the stage 7 turbine blades

Requirements After Job Completion

Follow-On Conditions

NONE
