TASK 72-50-33-300-026 LPT Stage 4 Rotating Airseal - Rebalance, Repair-026 (VRS4237)

DMC:V2500-A0-72-50-3304-00A-709A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-33-300-026 LPT Stage 4 Rotating Airseal - Rebalance, Repair-026 (VRS4237)

Effectivity

FIG/ITEM

PART NO.

01-150

3A0792

01-150

3A1983

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Stage 4 turbine air seal

Waspaloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

Equivalent materials and equipment may be used.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Vertical balancing machineLOCALVertical balancing machine
Grinding machineLOCALGrinding machine
Horizontal rotating tableLOCALHorizontal rotating table
Radius gage setLOCALRadius gage set
Roughness microtesterLOCALRoughness microtester
Vernier caliperLOCALVernier caliper
IAE 1M14234 Balancing fixture0AM53IAE 1M142341

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-33-350-069 General Instructions for the Rebalancing of the Turbine Air Seal after Repair

      1. Remove material to get balance within limits.

      1. Machine grind the turbine air seal in circumferential direction.

        For small quantities of material, use files.

      2. Polish the grinded areas.

      1. Use fine stones to make the worked surface as smooth as the adjacent surface.

    2. SUBTASK 72-50-33-350-097 Prepare the Turbine Air Seal for Rebalancing Procedure

      1. Install the balancing fixture on to the vertical balancing machine.

      1. Align TOP marks.

      2. Install the turbine air seal on to the balancing fixture and safety.

      1. Align TOP marks.

    3. SUBTASK 72-50-33-350-070 Rebalance the Turbine Air Seal

      NOTE

      1. Keep material removal to the minimum to get balance within limits.

      2. Do not remove material from a small number of areas. Remove material over a larger number, with less removal, to permit more rebalancing procedures.

    1. Refer to: Figure

      2. Do the first check for static unbalance of the turbine air seal at 900 rpm minimum.

      1. The direction of turn on the vertical balancing machine can be set in two directions, clockwise or counterclockwise. The unbalance value includes the unbalance of the tools.

    3. Remove the turbine air seal from the balancing tool assembly.

      4. Install the turbine air seal again on to the balancing tool assembly and safety.

      1. Installation of the turbine air seal must be in a 180 degree position opposite to the first rebalance position.

      5. Do the check for actual static unbalance of the turbine air seal at 900 rpm minimum.

      1. Initial unbalance must not be more than maximum 5 ozin (3600 gmm) when attached on diameter B and plane A. Remaining unbalance must not be more than maximum 0.50 ozin (360 gmm). The direction of turn on the vertical balancing machine can be set in two directions, clockwise or counterclockwise.

      6. Correct the unbalance.

      1. Install the air seal on grinding machine. Remove material to bring the unbalance in the limits, refer to step D. Remove material as shown in Figure and in Figure. Edges must be rounded 0.004 to 0.020in. (0.10 to 0.50 mm).

    4. SUBTASK 72-50-33-220-097 Do the Post Repair Inspection of the Turbine Air Seal

      1. Examine the surface finish.

      1. The surface finish of all grinded areas must be as good as adjacent areas.

        Use horizontal rotating table and roughness microtester.

      2. Dimensionally examine the areas that have been ground.

      1. Make sure that dimensions are not more than maximum, refer to Figure.

        Use the horizontal rotating table, vernier caliper and radius gage set.

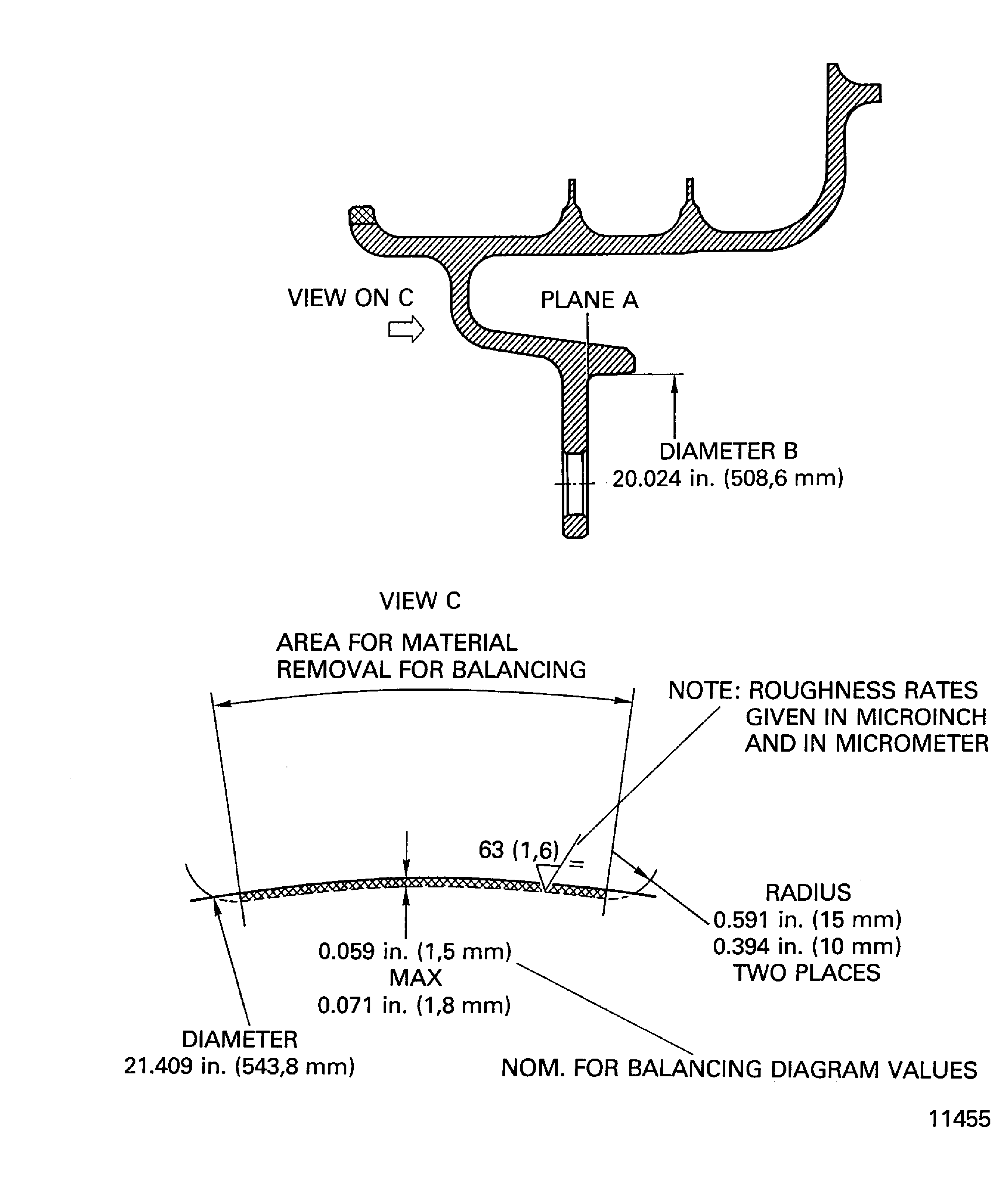

    5. Figure: Rebalance the turbine air seal

    Rebalance the turbine air seal

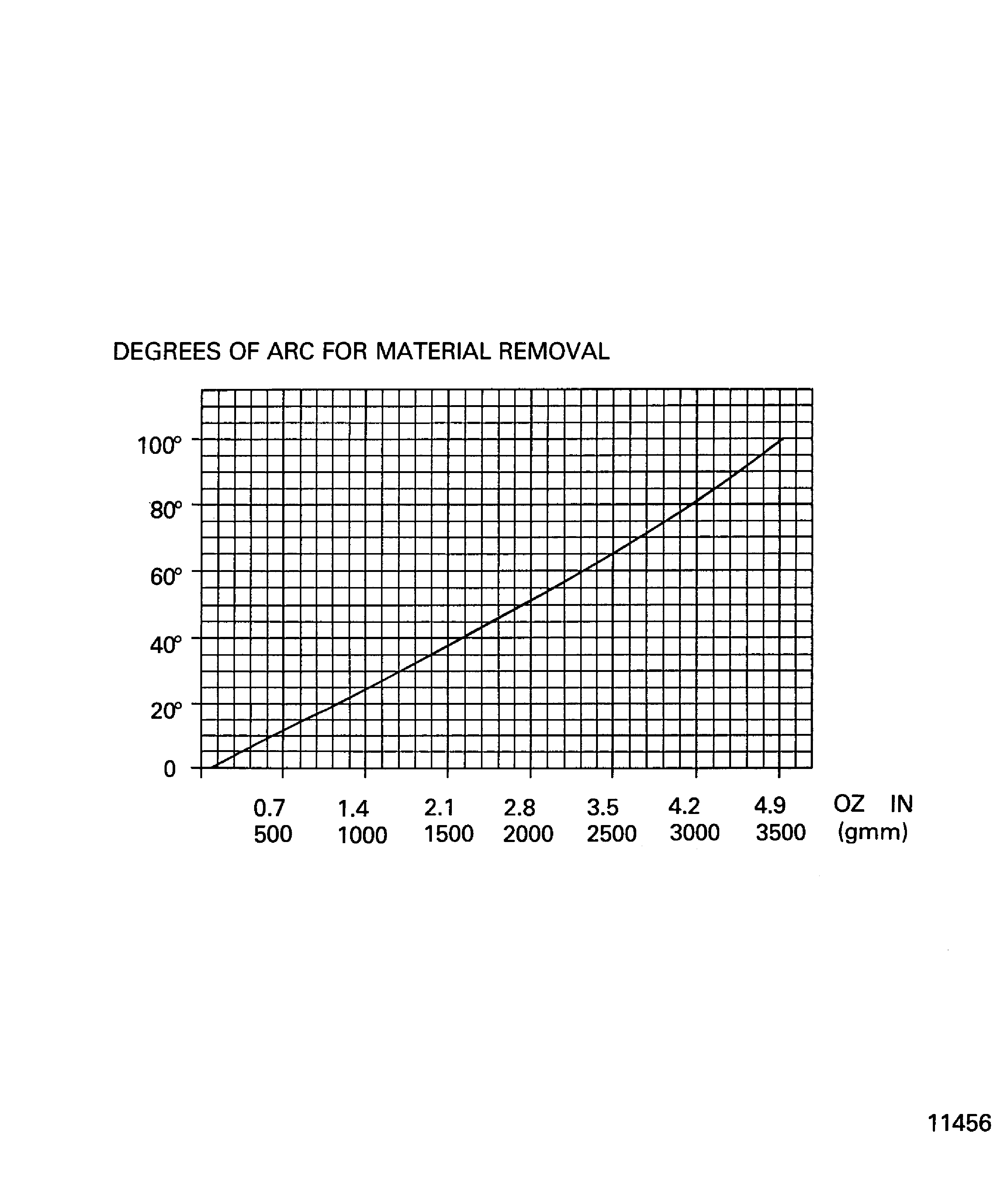

    Figure: Balancing diagram of the turbine air seal

    Balancing diagram of the turbine air seal

Requirements After Job Completion

Follow-On Conditions

NONE
