TASK 72-50-42-300-014 No. 5 Bearing Seal Front Spacer - Blend Repair, Repair-014 (VRS3244)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
No.5 bearing seal spacer | - | AMS6322 or AMS6323 |
steel alloy |
General
Price and availability - refer to IAE.
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Preliminary Requirements
Pre-Conditions
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure and SPM TASK 70-35-21-350-501.
Blend high metal on the seal spacer.
Refer to Figure and SPM TASK 70-35-21-350-501.
Blend to a maximum of 0.005 in. (0.127 mm) deep.
Blend surface damage only on the outside diameter and inside diameter of the seal spacer.
SUBTASK 72-50-42-350-052 Blend High Metal and Surface Damage on the No. 5 Bearing Seal Spacer
Refer to TASK 72-50-42-200-003-B00 and Figure.
Examine the seal spacer after repair.
SUBTASK 72-50-42-220-085 Examine the Repair

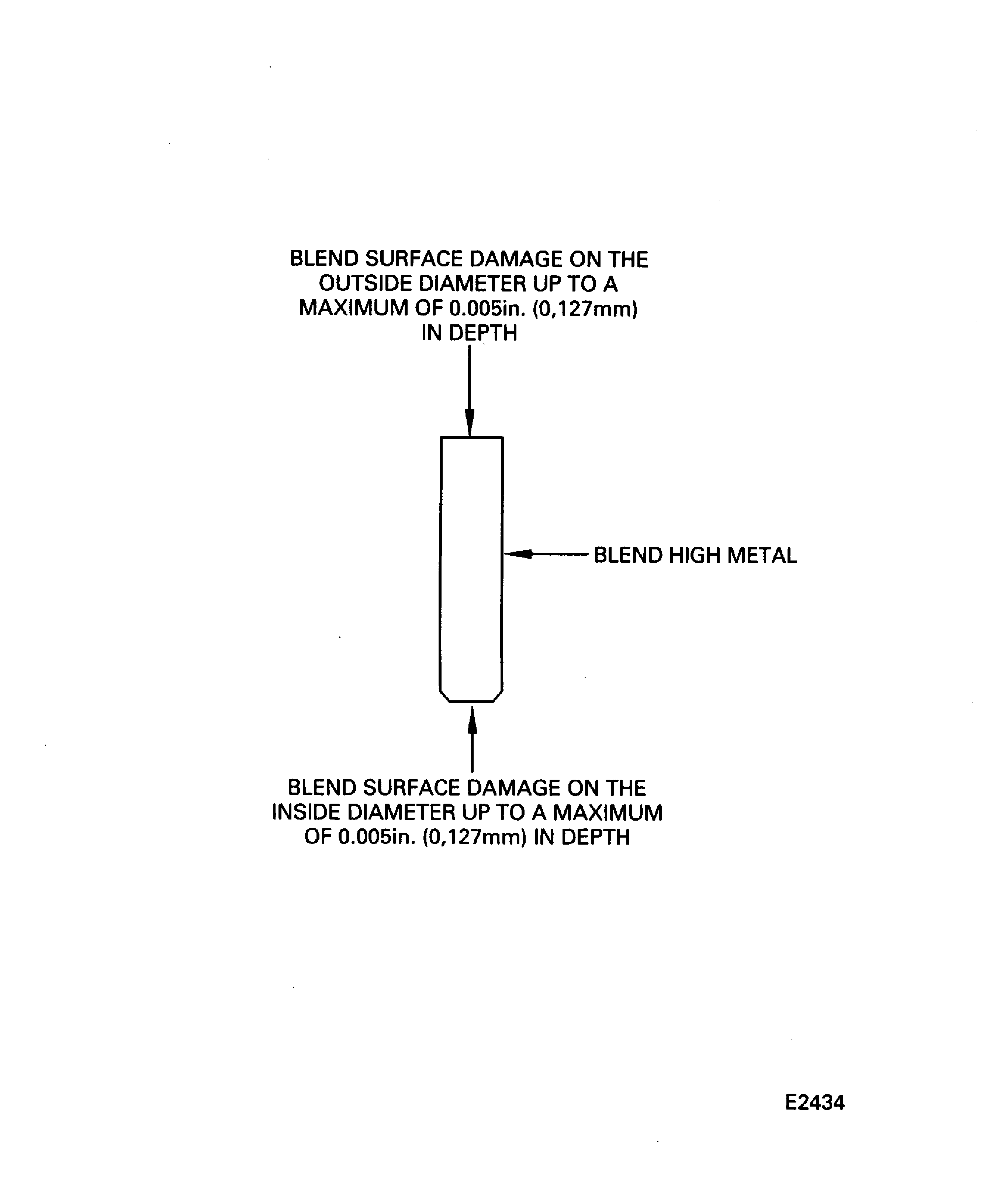

Figure: Blend high metal and surface damage on the No. 5 bearing seal spacer
Blend high metal and surface damage on the No. 5 bearing seal spacer
