TASK 72-50-52-300-004 No. 5 Bearing Retaining Plate - Blend Repair On The Mounting Face, Repair-004 (VRS5015)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to: Figure
SUBTASK 72-50-52-350-052 Repair the Mounting Face

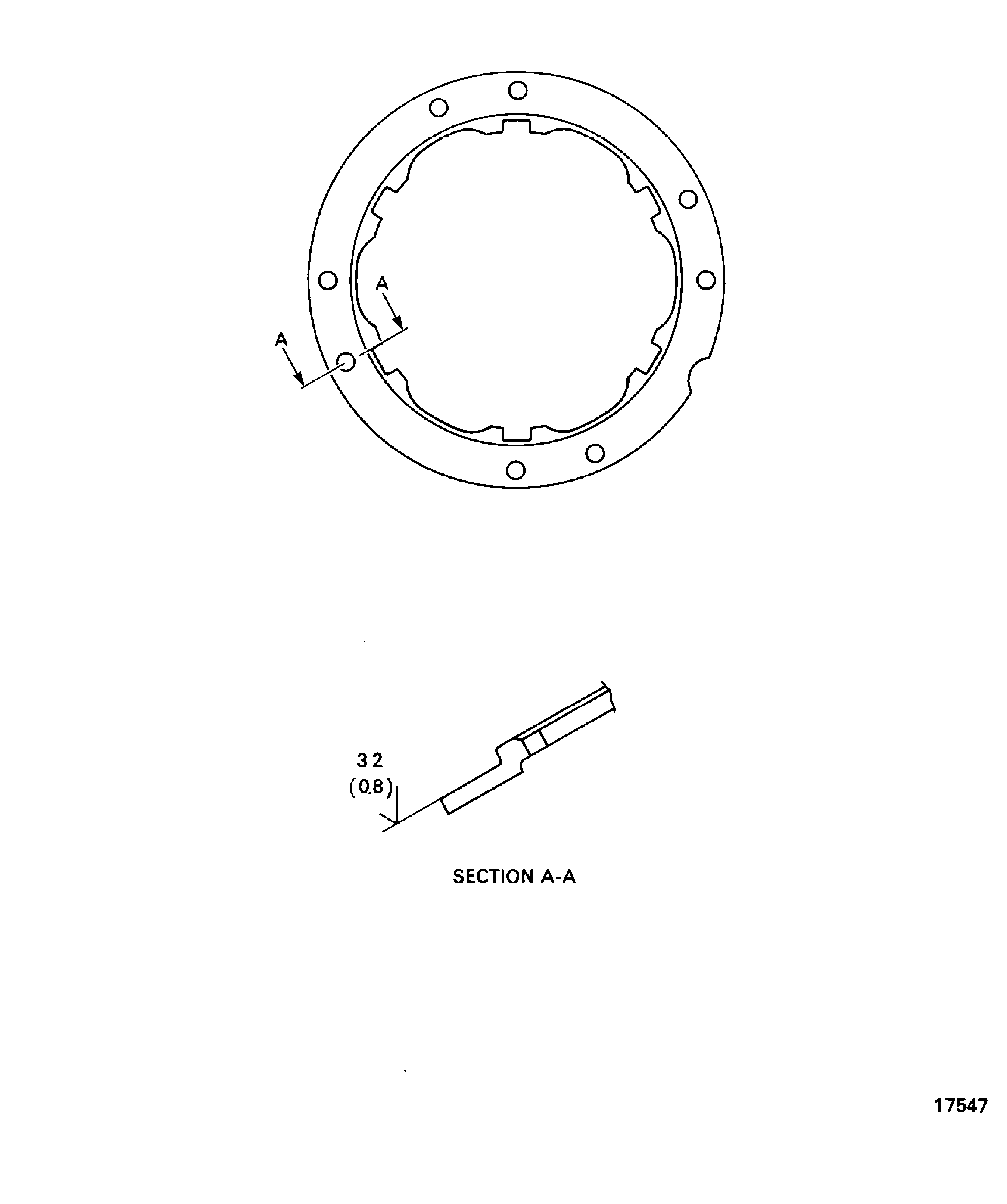

Figure: Repair details and dimensions
Repair details and dimensions
