DMC:V2500-A0-72-50-5202-02A-649A-CIssue No:002.00Issue Date:2014-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 72-50-52-300-006 No. 5 Bearing Retaining Plate - Blend Repair On The Mounting Face And The Anti-Rotation Slots, Repair-006 (VRS3088)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Fig. 72-50-52-990-009 and SPM TASK 70-35-21-350-501.
Blend damage on the face and slots of the retaining plate.
SUBTASK 72-50-52-350-055 Blend Damage on the Mounting Face and the Anti-Rotation Slots of the No. 5 Bearing Retaining Plate
Refer to Figure and TASK 72-52-50-200-000 (INSPECTION/CHECK-000).
Examine the No. 5 bearing retaining plate after blend repair.
SUBTASK 72-52-50-220-068 Examine the Repair

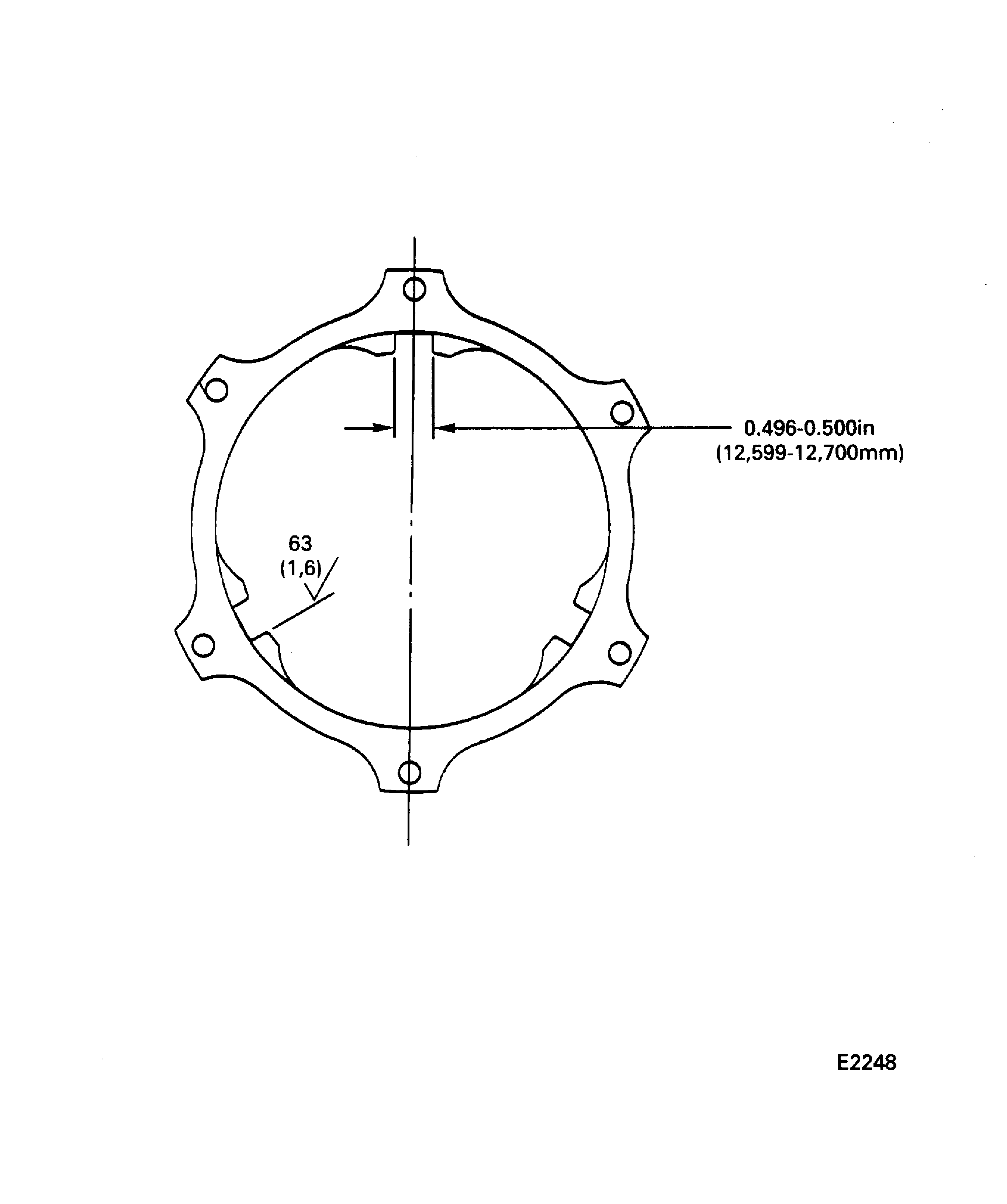

Figure: No. 5 bearing retaining plate blend repair
No. 5 bearing retaining plate blend repair
