DMC:V2500-A0-72-50-5203-00A-649A-CIssue No:003.00Issue Date:2014-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 72-50-52-300-008 No. 5 Bearing Strainer Element - Blend Repair, Repair-008 (VRS3130)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
No. 5 bearing strainer element | - | AMS 5040 or AMS 5042 steel |
General
Price and availability - refer to IAE
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure and the SPM TASK 70-35-21-350-501.
Blend high metal on the strainer element.
Refer to Figure and SPM TASK 70-35-21-350-501.
Blend surface damage up to a maximum of 0.005 in. (0.127 mm) in depth.
SUBTASK 72-50-52-350-056 Blend High Metal and Surface Damage on the No. 5 Bearing Strainer Element
Refer to TASK 72-50-52-200-000 (INSPECTION/CHECK-000).
Examine the strainer element after blend repair.
SUBTASK 72-50-52-220-070 Examine the Repair

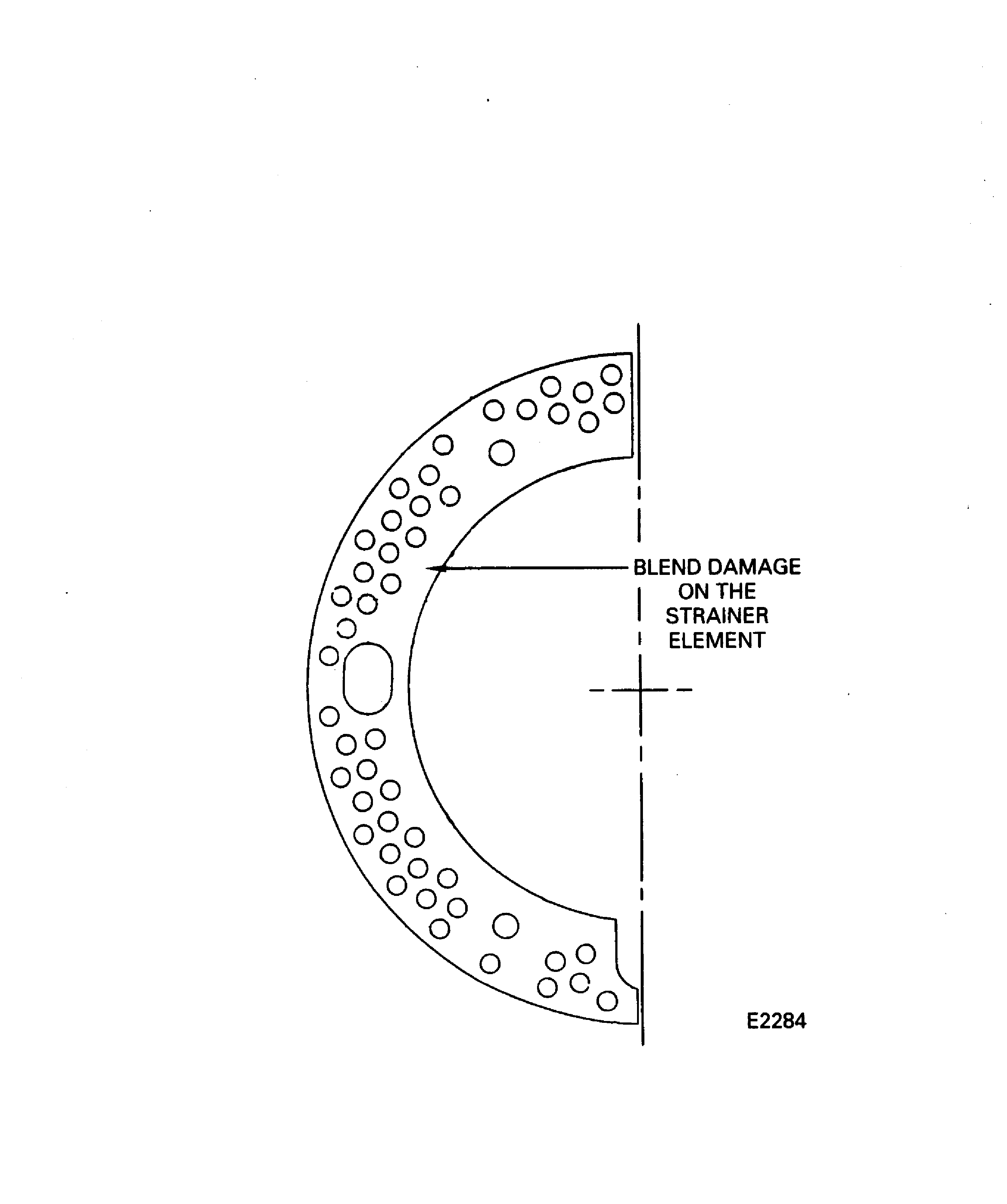

Figure: Blend repair the No. 5 bearing strainer element
Blend repair the No. 5 bearing strainer element
