TASK 72-50-53-300-010 Turbine Exhaust Case (TEC) - Replace The Damaged Ground Handling Bushings, Repair-010 (VRS5394)

DMC:V2500-A0-72-50-5301-04A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-53-300-010 Turbine Exhaust Case (TEC) - Replace The Damaged Ground Handling Bushings, Repair-010 (VRS5394)

Effectivity

FIG/ITEM PART NO.

01-001

4A8014

01-001

4A8025

Equipement and Material

Standard equipment

Grinding machine

FPI inspection station

Hot air gun

Freezer

Magnifying glass, 5X

Vibrating marking pencil

Consumable materials - none

Special tools

Slide, Hammer

1 off

Expendable parts - none

Repair parts

Refer to table at Figure or Fig. 72-50-53-990-097

Material of component

PART IDENT

SYMBOL

MATERIAL

Turbine Exhaust Case

-

Corrosion and heat resistant iron base alloy

Bushing

-

Corrosion and heat resistant iron base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1F10202 Slide, Hammer0AM53IAE 1F10202

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-350-082 Remove the Damaged Bushing in the Turbine Exhaust Case,or

    1. Refer to: Figure and Fig. 72-50-53-990-097

      2. Remove the damaged bushing.

    2. SUBTASK 72-50-53-320-081 Machine the Bushing Bore in the Turbine Exhaust Case,or

    1. Refer to: Figure and Fig. 72-50-53-990-097

      2. Machine the bushing bore.

      1. Refer to table at Figure for the dimensions after the removal of the damage keep the removal of material to the minimum necessary to remove damage. Use grinding machine.

    3. SUBTASK 72-50-53-230-077 Examine the Turbine Exhaust Case

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        No cracks permitted.

    4. SUBTASK 72-50-53-350-083 Install the Bushing

      WARNING

      DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
      HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.
      IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

      CAUTION

      INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER; OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

    1. Refer to: Figure and Fig. 72-50-53-990-097

    2. Install the bushing on the IAE 1F10202 Slide, Hammer 1 off.

    3. Increase the temperature of the case and/or decrease the temperature of the assembled bushing/slide.

    4. Use an hot air gun.

      Increase the temperature of the case to 176 deg F (80 deg C).

      Degrease the temperature of the assembled bushing/fixture -30 deg F (-20 deg C).

    5. Remove the bushing from the freezer.

    6. Use protective gloves.

    7. Install the bushing into machined bore.

    9. Allow the parts to reach ambient temperature.

    10. Remove the hammer slide.

    5. SUBTASK 72-50-53-350-084 Record the Repair

      1. Vibro engrave VRS5394 adjacent to the part number.

      1. Remove the metal lifted by marking.

        Use vibrating marking pencil.

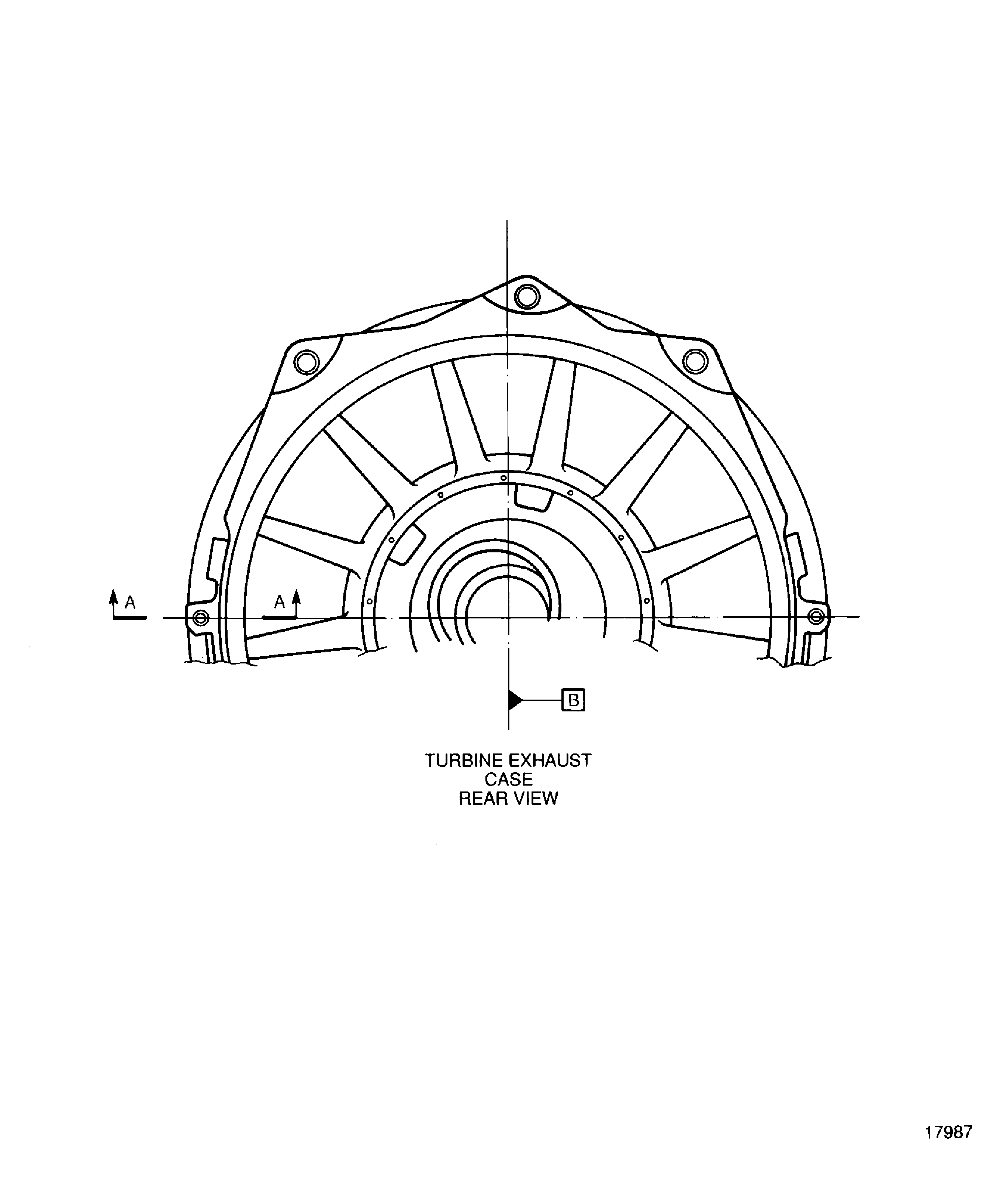

    6. Figure: Pre SBE 70-0565: Replace the damaged ground handling bushes in the turbine exhaust case

    Pre SBE 70-0565: Replace the damaged ground handling bushes in the turbine exhaust case

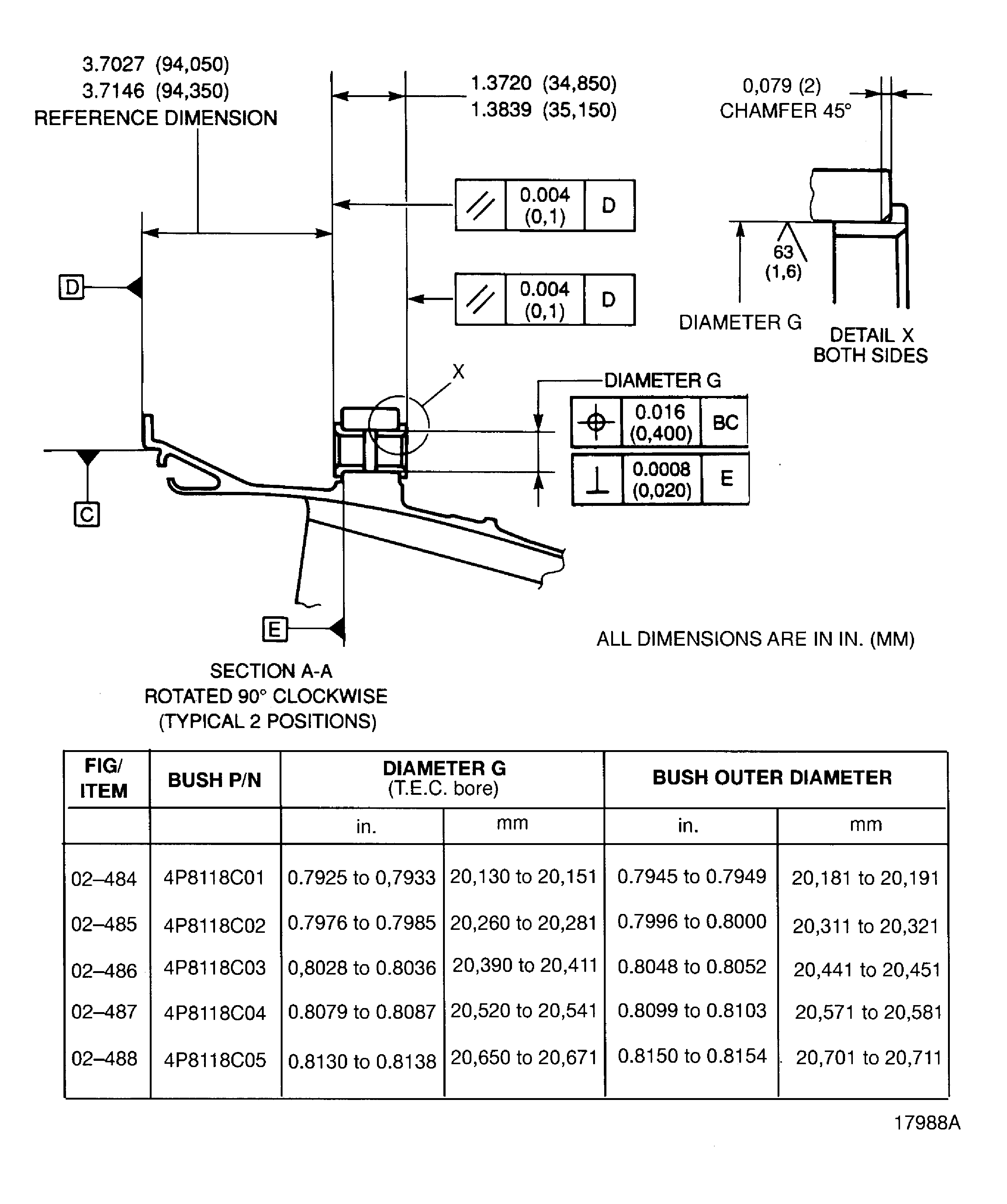

    Figure: Pre SBE 70-0565: Replace the damaged ground handling bushes in the turbine exhaust case

    Pre SBE 70-0565: Replace the damaged ground handling bushes in the turbine exhaust case

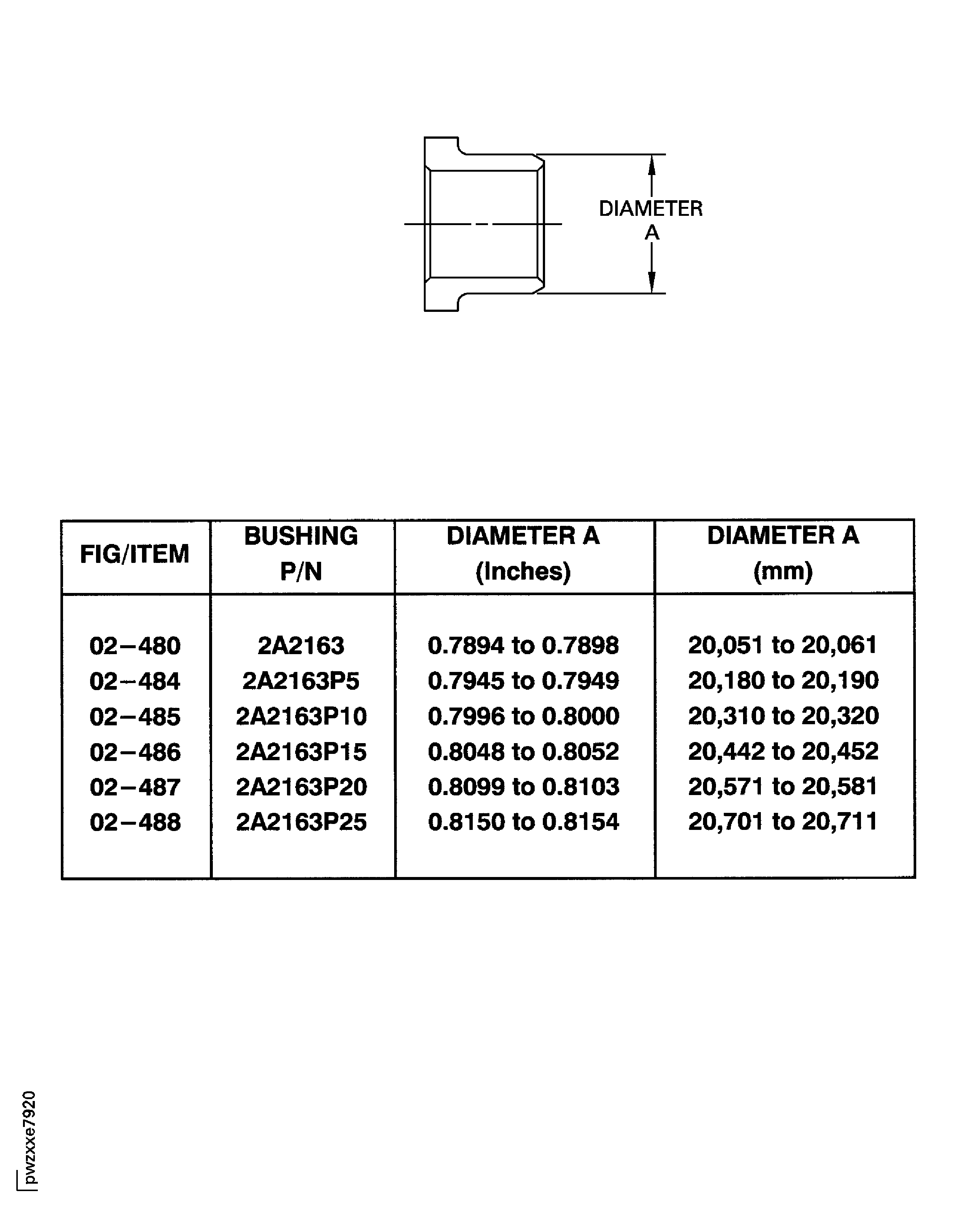

    Figure: SBE 70-0565: Replace the damaged ground handling bushes in the turbine exhaust case

    SBE 70-0565: Replace the damaged ground handling bushes in the turbine exhaust case

Requirements After Job Completion

Follow-On Conditions

NONE
