TASK 72-50-53-300-050 Turbine Exhaust Case (TEC) - Replace The Mount Bushing(s), Repair-050 (VRS3015)

DMC:V2500-A0-72-50-5301-13A-920A-C|Issue No:002.00|Issue Date:2017-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-53-300-050 Turbine Exhaust Case (TEC) - Replace The Mount Bushing(s), Repair-050 (VRS3015)

Effectivity

FIG/ITEM

PART NO.

21-300

2A1209-01

21-300

2A2620-01

21-300

2A3111-01

21-300

2A3183-01

21-300

2A3455-01

21-300

2A3183-101

21-300

2A4258-01

21-300

2A4263-01

Material of component

PART IDENT

SYMBOL

MATERIAL

Turbine exhaust assembly

-

Corrosion and heat resistant

stainless steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
DrillLOCALDrill
Jig borerLOCALJig borer
Hot air gunLOCALHot air gun
FreezerLOCALFreezer
Magnifying glass, 5XLOCALMagnifying glass, 5X
ReamersLOCALReamers
IAE 1F10261 Puller0AM53IAE 1F102611
IAE 3P16429 Reamer0AM53IAE 3P164291

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Bushing2A2161AR
Bushing2A2161P5AR
Bushing2A2161P10AR
Bushing2A2161P15AR
Bushing2A2161P20AR
Bushing2A2161P25AR

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-350-099 Remove the Damaged Bushing(s) from the Turbine Exhaust Case Assembly

      1. Remove the damaged bushing and the bushing in the adjacent flange axially in line with it.

      1. Refer to Figure and Figure.

        You can use CoMat 10-077 APPROVED ENGINE OILS to make it easier to remove bushing.

      2. Examine the bushing hole.

      1. Refer to Figure and Figure.

        If the hole is worn, machine the hole for the bushing.

        Refer to Step.

    2. SUBTASK 72-50-53-320-094 Machine the Hole for the Bushing

    1. Refer to Figure.

      2. If the hole is worn, machine the hole to the nearest oversize diameter.

      1. Use the applicable size replacement bushing to get a 0.0010 to 0.0024 in. (0.025 to 0.060 mm) tight fit.

        The minimum distance between the mount lug OD and the bushing bore OD must not be less than 0.600 in. (15.24 mm) after machining.

    3. SUBTASK 72-50-53-230-087 Fluorescent Penetrant Inspect the Turbine Exhaust Case

      1. Fluorescent penetrant inspect the case for cracks.

    4. SUBTASK 72-50-53-350-100 Install New Bushings

      1. Install new bushings.

      1. Refer to Figure and Figure.

        You can chill the bushings and heat the case flange to make it easier to install the bushings.

    5. SUBTASK 72-50-53-320-095 Machine the New Bushings

    1. Put the turbine exhaust case on the table of a jig borer or equivalent.

      2. Line drill the holes.

      1. Use a standard drill.

      3. Line ream the holes with Reamer 1 off to 1.1875 in. to 1.1885 in. (30.163 mm to 30.187 mm).

      1. Refer to Figure and Figure.

    4. Machine the faces of the bushings so the requirements of Figure and Figure are met.

    6. SUBTASK 72-50-53-220-190 Examine the Repair

      1. Examine the repair.

      1. Refer to Figure , Figure and TASK 72-50-53-200-000 (INSPECTION-000).

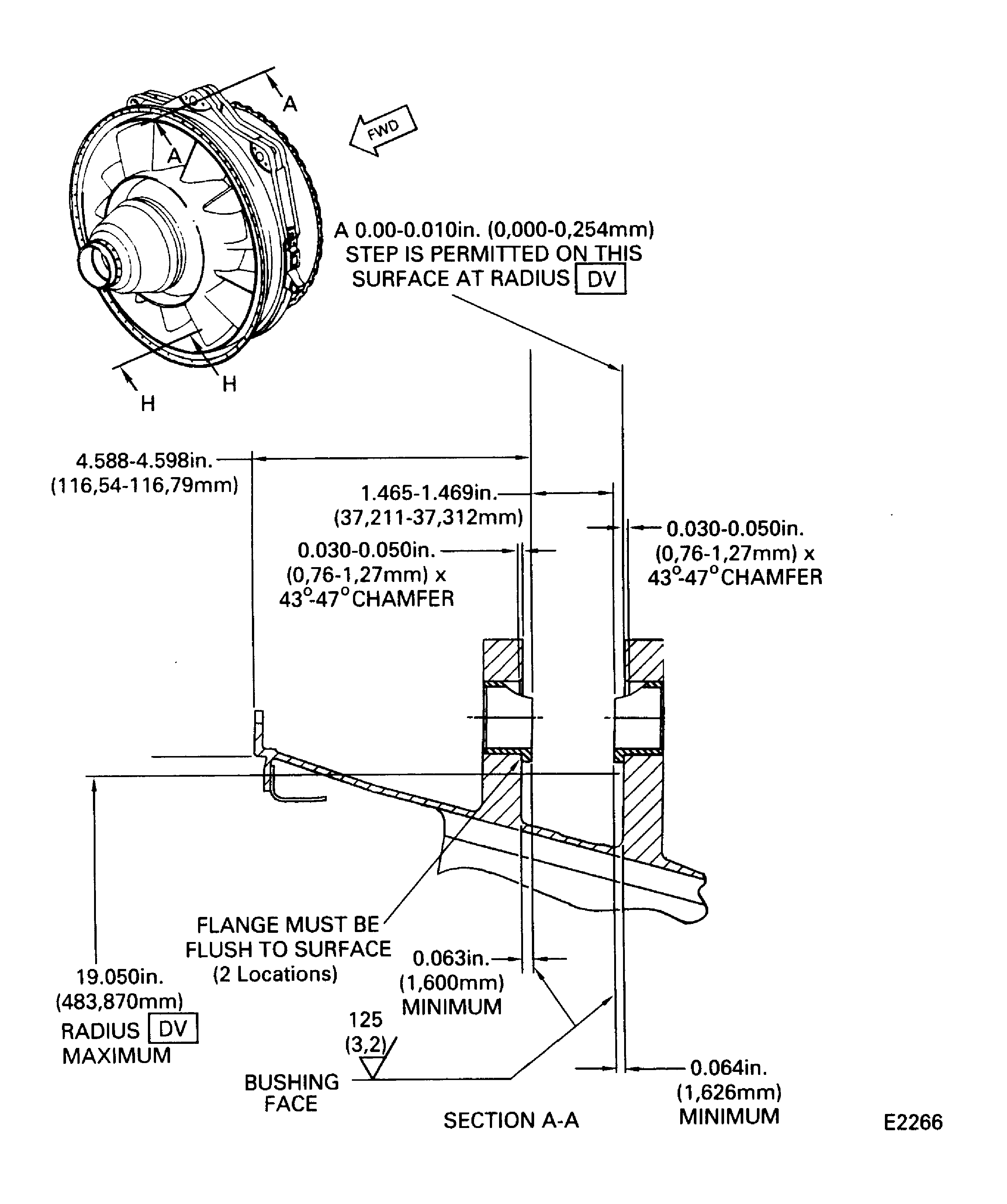

    7. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

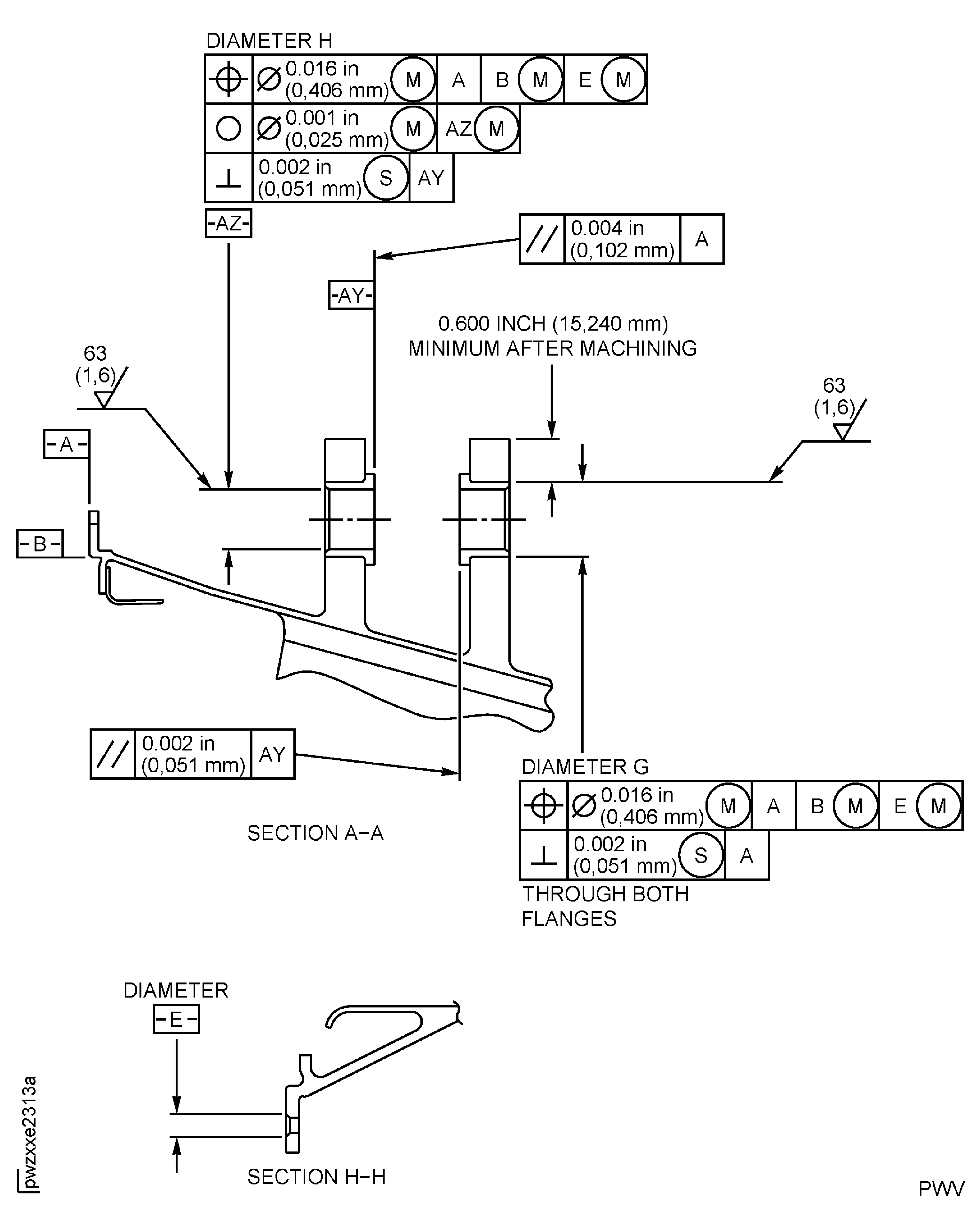

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

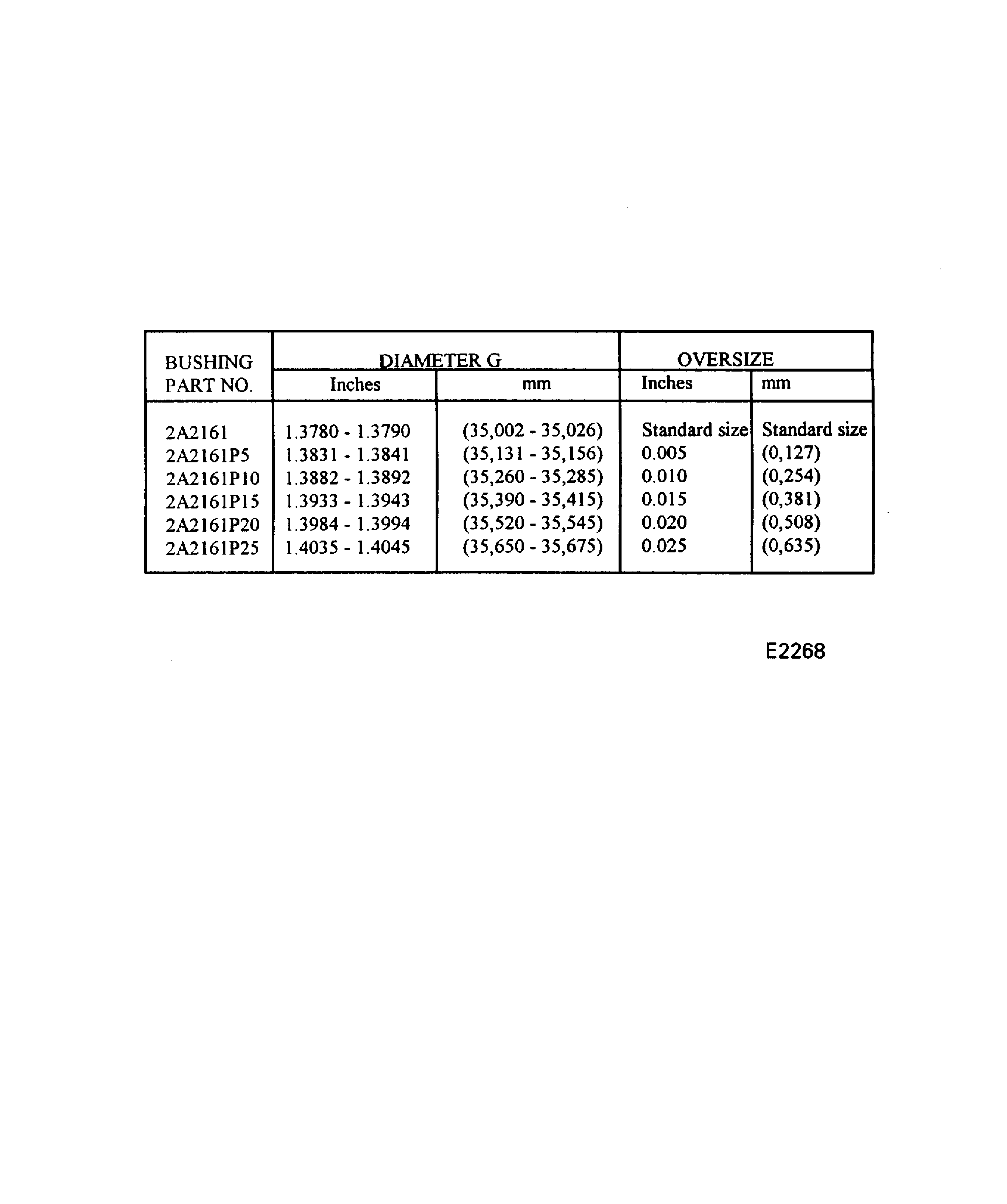

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
