TASK 72-50-53-300-042 No. 5 Bearing Scavenge Oil Tube - Blend Repair Surface Damage, Repair-042 (VRS3260)
Material of components
DESCRIPTION | RR SYMBOL | MATERIAL |
No. 5 Bearing Scavenge Tube | AMS 5570 Stainless Steel |
General
Price and availability - refer to IAE.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fine file | LOCAL | Fine file | ||
| Workshop Inspection Equipment | LOCAL | Workshop Inspection Equipment |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to Inspection - 000 TASK 72-50-53-200-100 and SPM TASK 70-35-21-350-501.
Blend high metal from the tube.
The maximum blend depth is 0.010 in. (0.254 mm).
Refer to Inspection - 000 TASK 72-50-53-200-100 and SPM TASK 70-35-21-350-501.
Blend surface damage on the tube.
SUBTASK 72-50-53-350-110 Blend High Metal and Surface Damage from the No.5 Bearing Scavenge
Refer to Inspection - 000 TASK 72-50-53-200-100 .
Examine the tube after the repair.
SUBTASK 72-50-53-220-199 Examine the Repair

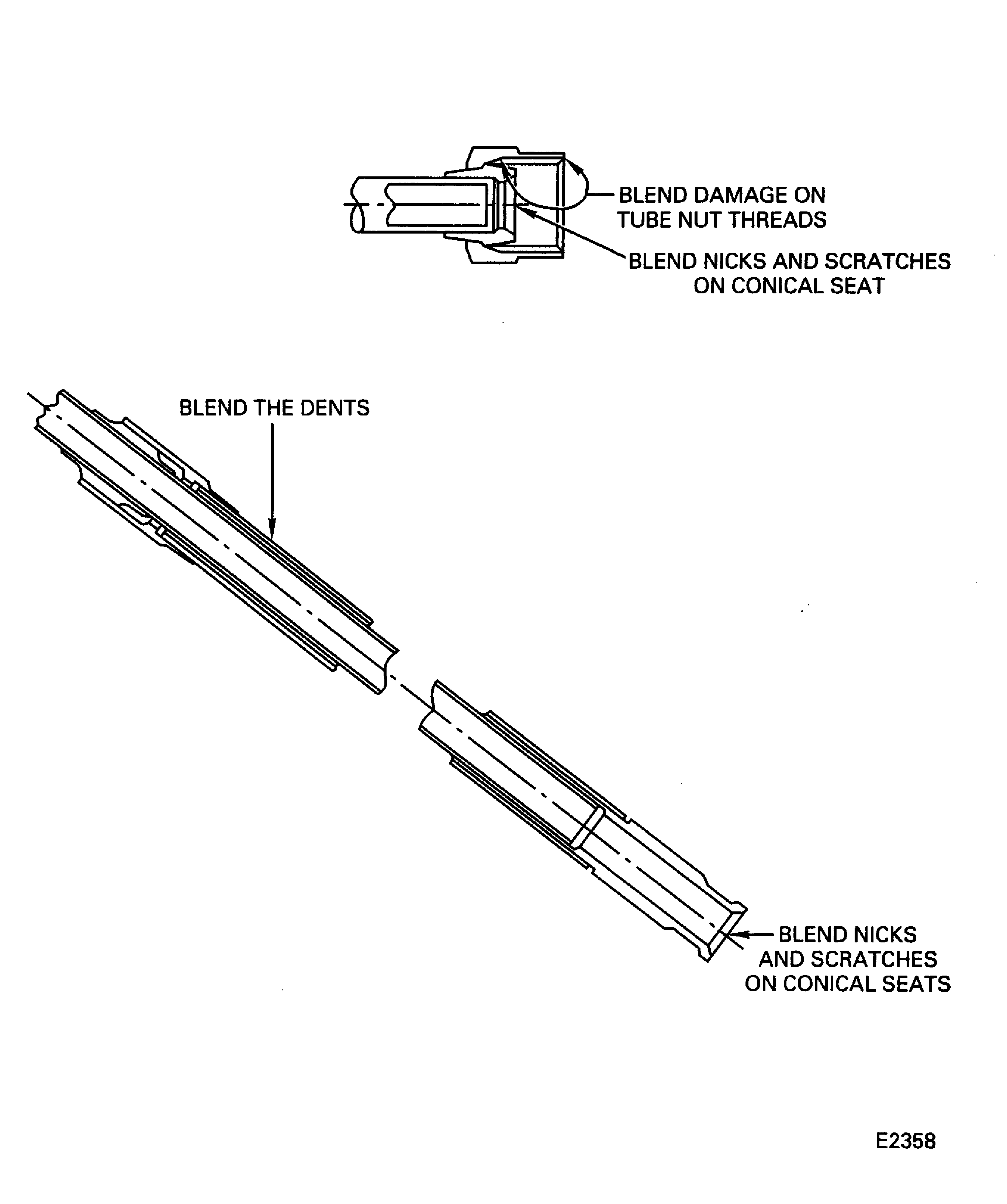

Figure: Blend Repair the No. 5 Bearing Scavenge Tube
Blend Repair the No. 5 Bearing Scavenge Tube
