TASK 72-50-53-300-043 No. 5 Bearing Scavenge Oil Tube Elbow - Blend Repair Surface Damage, Repair-043 (VRS3262)
General
Price and availability - refer to IAE.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fine file | LOCAL | Fine file | ||
| Workshop Inspection Equipment | LOCAL | Workshop Inspection Equipment |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure and SPM TASK 70-35-21-350-501.
Blend damage to a maximum of 0.010 in (0.254 mm) in depth.
Blend high metal and surface damage on the tube elbow.
SUBTASK 72-50-53-350-098 Blend High Metal and Surface Damage on the No. 5 Bearing Scavenge Tube Elbow
Refer to Figure and Refer to Inspection - 000 TASK 72-50-53-200-100.
Examine the tube elbow after blend repair.
SUBTASK 72-50-53-220-189 Examine the Repair

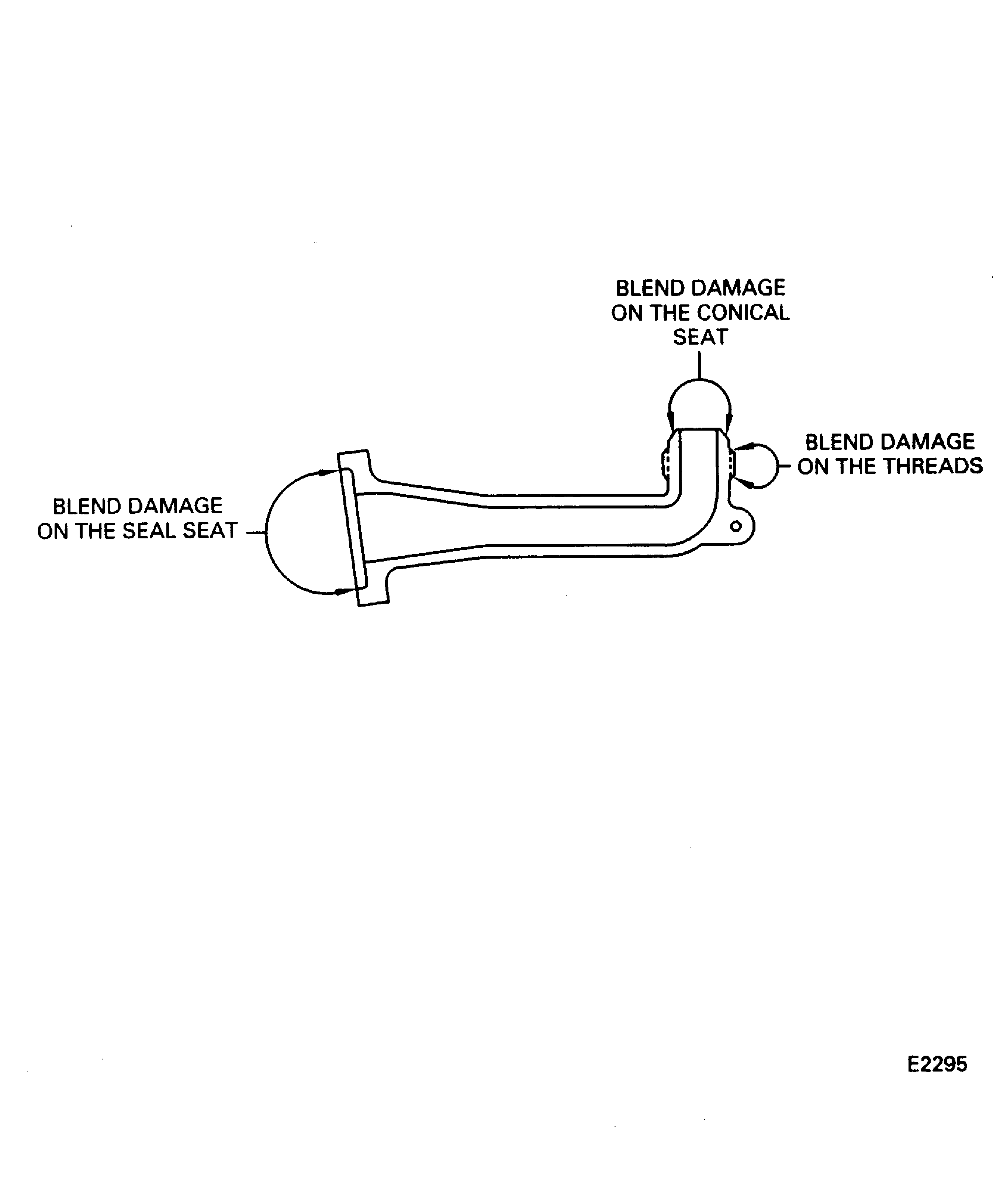

Figure: No. 5 Bearing Scavenge Tube Elbow Blend Repair
No. 5 Bearing Scavenge Tube Elbow Blend Repair
