TASK 72-58-01-300-001 No. 5 Bearing Cover - Nickel Plate The Mating Seat Diameter, Repair-001 (VRS5018)

DMC:V2500-A0-72-58-0101-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-58-01-300-001 No. 5 Bearing Cover - Nickel Plate The Mating Seat Diameter, Repair-001 (VRS5018)

Effectivity

FIG/ITEM PART NO.

01-120

4B8050

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

No. 5 Bearing Cover

-

Corrosion and heat

resistant iron

base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM

NOTE

  1. To identify the consumable materials refer to the PCI.

  2. Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Grinding machineLOCALGrinding machine
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 5xLOCALMagnifying glass, 5x
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-58-01-320-051 Machine the Mating Seat Diameter of the No. 5 Bearing Cover

    1. Refer to Figure.

      2. Machine the mating seat diameter.

      1. The mating seat diameter must be 7.1834 to 7.1775in. (182.458 to 182.308 mm) after the removal of the damage.

        Remove all damage and wear. Keep the removal of material to the minimum necessary, to remove the damage.

    2. SUBTASK 72-58-01-230-054 Examine the No. 5 Bearing Cover

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-01-230-501.

        Cracks are not permitted. Use FPI inspection station.

    3. SUBTASK 72-58-01-330-051 Nickel Plate the Mating Seat Diameter of the No. 5 Bearing Cover

    1. Refer to: Figure

      2. Mask areas of the cover not to be plated.

      3. Do the nickel plating.

      1. Plate to a sufficient thickness to permit machining to the last dimension. The plating out of the mounting face is permitted, but must be removed. Use process plating tanks.

    4. Remove the mask.

      5. Clean and dry the cover.

      1. Flush with cold water. Flush with hot water.

        Flush with air blast.

    4. SUBTASK 72-58-01-370-051 De-embrittle the Cover

      1. Put the cover into an oven at 349 to 399 deg F (176 to 204 deg C) for 4 hours.

      1. Do this procedure as soon as possible, in less than 4 hours, after the plating.

    5. SUBTASK 72-58-01-220-055 Examine the Cover

      1. Visually examine the plating for finish, cracks and adhesion.

      1. Plating must have a constant colour. Circumferential cracks are not permitted. Rough and blistered areas are not permitted.

    6. SUBTASK 72-58-01-320-052 Machine the Mating Seat Diameter of the No. 5 Bearing Cover

    1. Refer to: Figure

      2. Machine the mating seat diameter.

      1. The dimensions must be 7.192 to 7.190in. (182.668 to 182.618 mm).

        The perpendicularity of the diameter must be within 0.00197 in. (0.050 mm) in relation to surface A. Clean up the edges of groove. Chamfer where necessary. Use grinding machine.

    7. SUBTASK 72-58-01-220-056 Examine the Nickel Plated Area

    1. Refer to: Figure

      2. Visually examine the plated area for cracks and adhesion.

      1. Use a 5x magnifying glass.

        The natural network crack, emphasized by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept a thickness of less than 0.0006in. (0.015 mm), after the last machining.

    8. SUBTASK 72-58-01-350-052 Record the Repair

      1. Vibro-engrave VRS5018 adjacent to the part number.

      1. Remove the metal lifted by marking.

        Use a vibrating marking pencil.

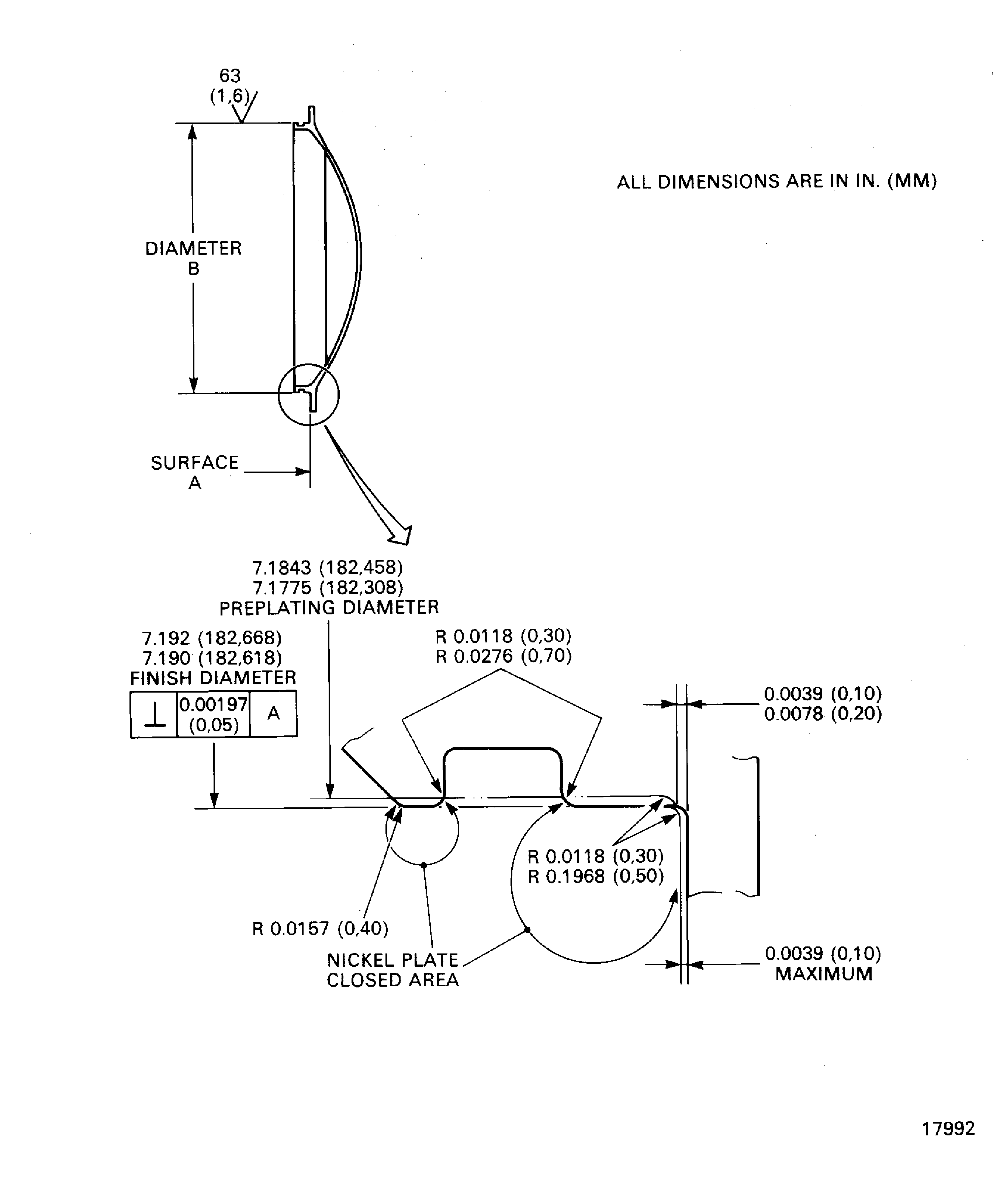

    9. Figure: Nickel plate the mating seat diameter of the No. 5 bearing cover

    Nickel plate the mating seat diameter of the No. 5 bearing cover
