TASK 72-58-01-300-002 No. 5 Bearing Cover - Blend Repair, Repair-002 (VRS5019)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 |
Spares
NONESafety Requirements
NONEProcedure
Refer to: Figure
Do not blend in area 'A'.
The maximum depth of the blending is 0.005in. (0.13 mm).
For local blend use a length to depth ratio of 5:1.
The minimum distance between blends must be 0.5in. (12.7 mm).
Put back surface texture to that of adjacent undamaged areas.
When two or more damaged areas are near together, blend all the area to specified depth.
Blend the damaged surfaces.
SUBTASK 72-58-01-350-051 Blend the Damaged Surfaces

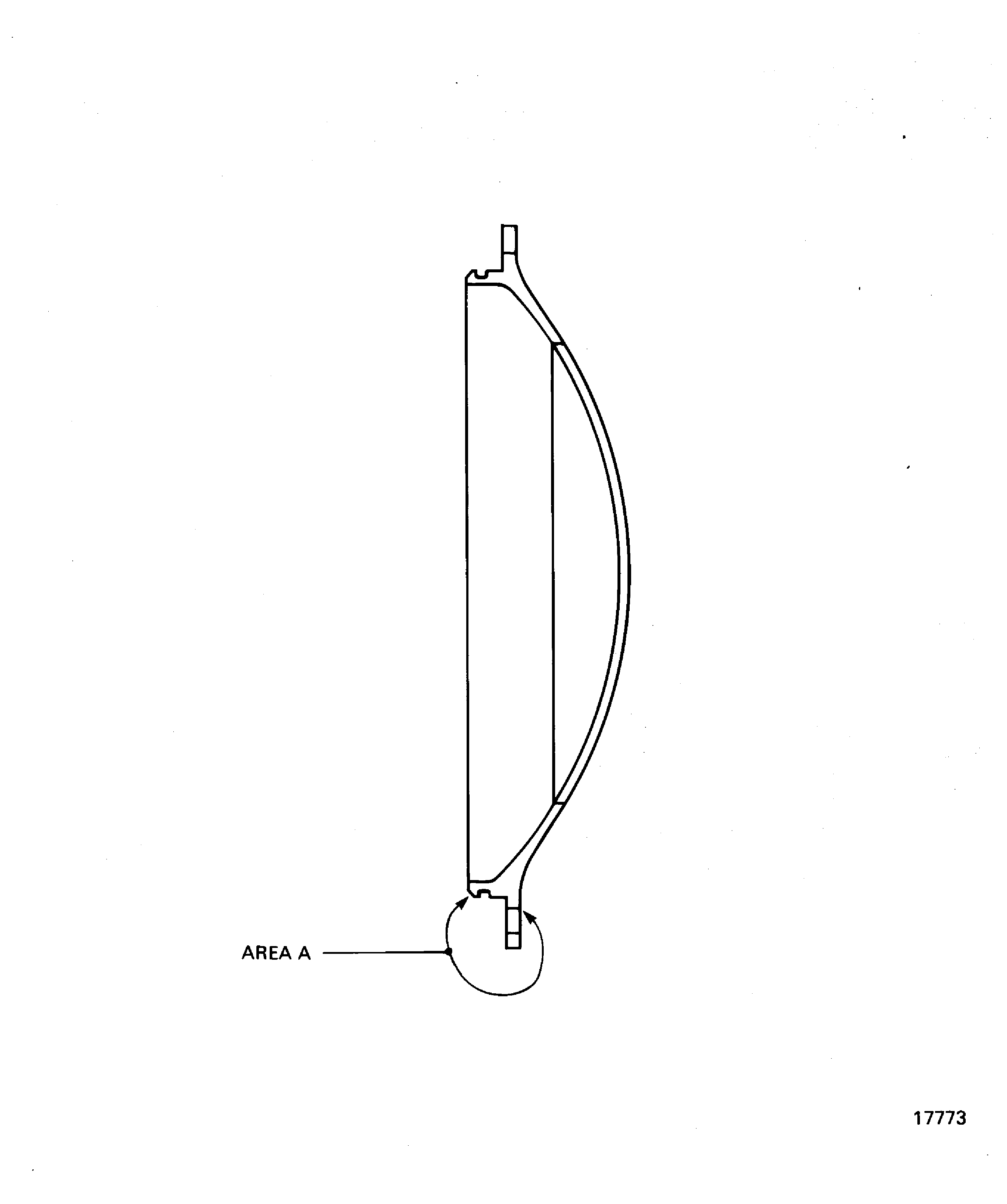

Figure: Repair details and dimension
Repair details and dimension
