TASK 72-58-01-300-007 No. 5 Bearing Thermal Shield - Weld Patch Repair And Stop Drill, Repair-003 (VRS5435)

DMC:V2500-A0-72-58-0102-01A-627A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-58-01-300-007 No. 5 Bearing Thermal Shield - Weld Patch Repair And Stop Drill, Repair-003 (VRS5435)

Effectivity

FIG/ITEM PART NO.

01-100

4T8030

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Blanket outer skin

AMS5510M

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

This repair must be done when the instruction to do is given in TASK 72-58-01-200-003-B00 (INSPECTION/CHECK-003, CONFIG-002). Use stop drill, patch weld, a spot weld procedure as specified in the inspection document.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Drilling machineLOCALDrilling machine
Capacitor - discharge resistance welderLOCALCapacitor - discharge resistance welder

(Model 1-016-03 weldmatic, Unitek Corp., Pasadena Ca.) or equivalent

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-078 WATERPROOF SILICON CARBIDEK3895CoMat 05-078

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-58-01-350-053 Stop Drill the Damaged Surfaces

      1. Drill stop holes at the ends of cracks.

      1. Use a drill of dia. 0.0059in. (1.5 mm).

    2. SUBTASK 72-58-01-350-054 Weld Patch the Damaged Surfaces (Dents and Cracks)

    1. Refer to: Figure

    2. Machine the damaged surfaces to remove rough edges or distorted areas around damage.

      3. Mechanically remove oxides within 0.25in. (6.35 mm) of hole.

      1. Use a silicon carbide abrasive or equivalent.

      4. Fabricate a patch 0.125in. (3.175 mm) larger than the area to be patched.

      1. Patches may be cut from discarded parts of the same P/N.

        Patches may be fabricated from AMS5510M sheet stock of the same thickness.

    5. Tack weld completely around the patch approximately 0.031in. (0.79 mm) from the edge, with a space of 0.031in. (0.79 mm) between tacks.

    3. SUBTASK 72-58-01-350-055 Spot Weld Detached

    1. Tack weld the detached tacks.

    4. SUBTASK 72-58-01-220-060 Inspect the Repaired Areas

      1. Inspect the repaired areas.

      1. Refer to Inspection/Check-003 TASK 72-58-01-200-003-B00 (INSPECTION/CHECK-003, CONFIG-002).

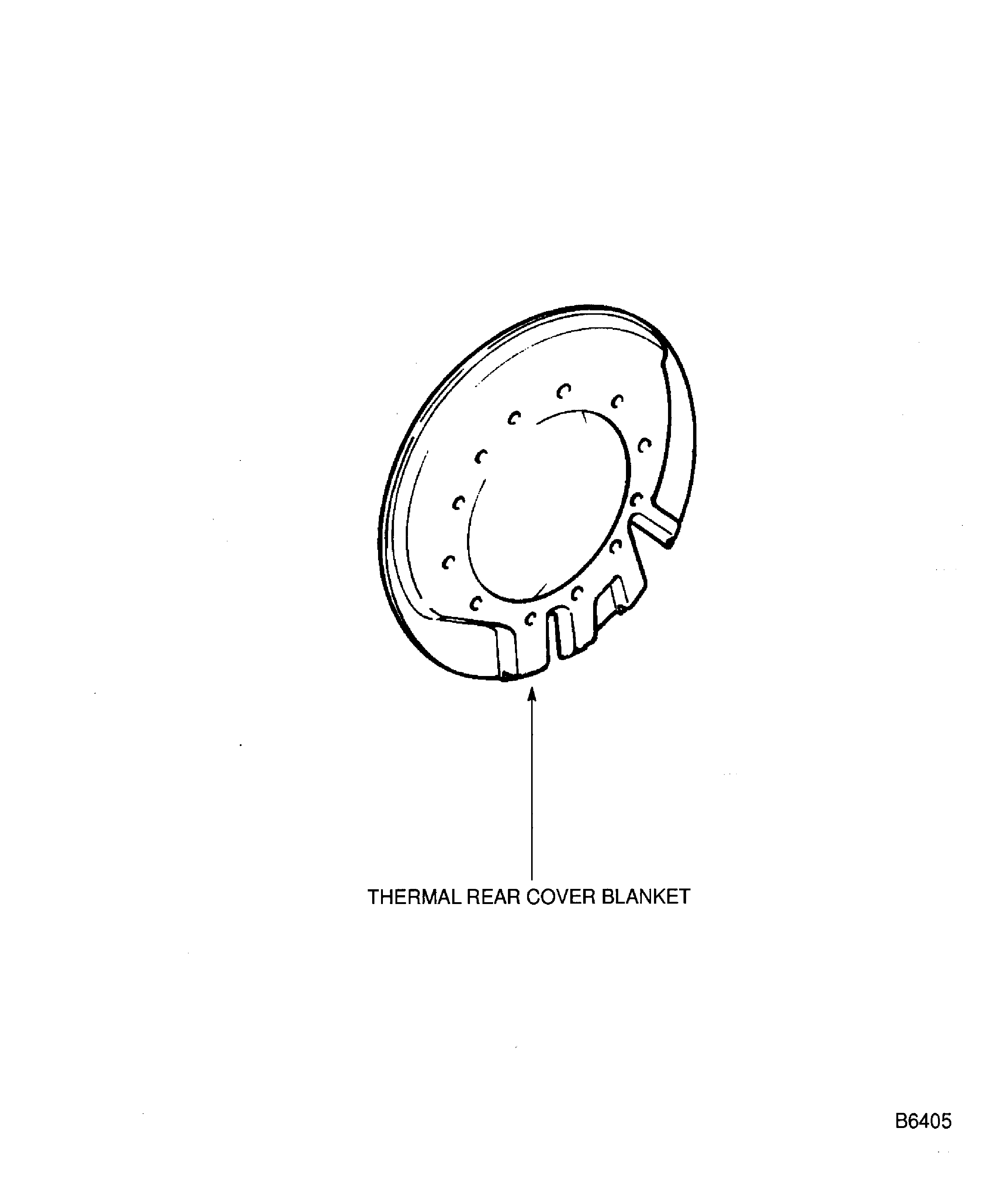

    5. Figure: Repair thermal rear cover blanket

    Repair thermal rear cover blanket

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:K3895
Enterprise Name:DELETED. REFER TO VENDOR CODE KC1D9.
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-078
Type:sp01
Supply Short Name:CoMat 05-078 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-078 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/34 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 280 (ANSI B74.18)
JCR-187 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:LOCAL
Tool Number:Capacitor - discharge resistance welder
Tool Name:Capacitor - discharge resistance welder
Manufacturer Code:LOCAL
Tool Number:Drilling machine
Tool Name:Drilling machine
