TASK 72-58-02-300-002 No. 5 Bearing Oil Nozzle - Blend Repair, Repair-002 (VRS3241)

DMC:V2500-A0-72-58-0201-00A-649A-C|Issue No:002.00|Issue Date:2014-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-58-02-300-002 No. 5 Bearing Oil Nozzle - Blend Repair, Repair-002 (VRS3241)

Effectivity

FIG/ITEM PART NO.

01-070

2A1211

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

No. 5 bearing nozzle

-

AMS 5362 stainless steel

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fine fileLOCALFine file

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-58-02-350-052 Blend High Metal and Surface Damage on the No. 5 Bearing Nozzle

      1. Blend high metal on the nozzle.

      1. Refer to Figure and SPM TASK 70-35-21-350-501.

      2. Blend surface damage up to a maximum of 0.005in. (0.127 mm) in depth.

      1. Refer to Figure and SPM TASK 70-35-21-350-501.

      3. Blend areas that are not indicated in Figure up to a maximum of 0.010in. (0.254 mm) in depth.

      1. Refer to SPM TASK 70-35-21-350-501.

    2. SUBTASK 72-58-02-220-057 Examine the Repair

      1. Examine the nozzle after blend repair.

      1. Refer to TASK 72-58-02-200-000 (INSPECTION/CHECK-000).

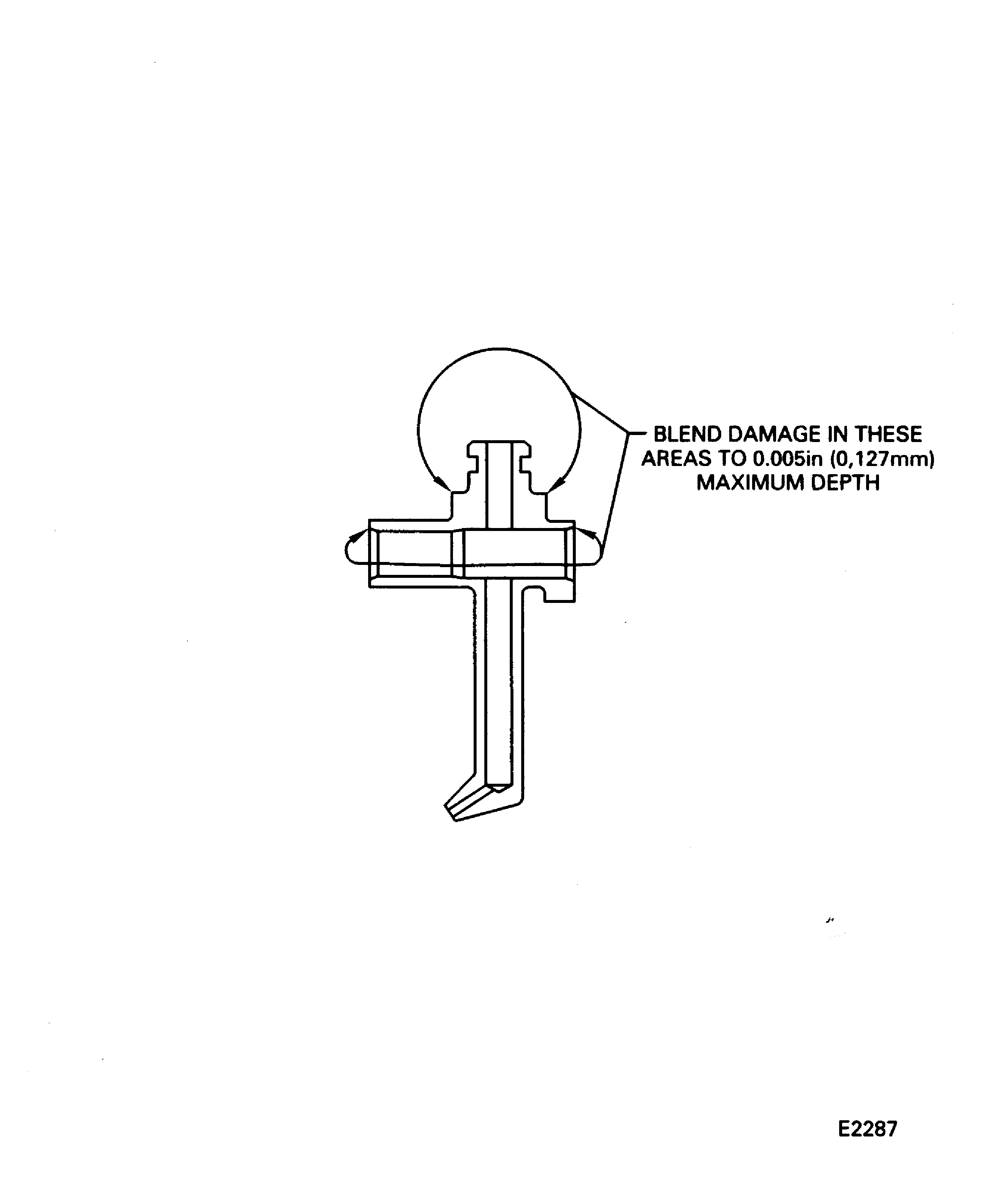

    3. Figure: Blend repair the No. 5 bearing nozzle

    Blend repair the No. 5 bearing nozzle

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted consumable materials and corrected the SPM reference. (EA13VC080)

Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
