TASK 72-60-21-040-001 Main Gearbox Casing And Fittings - Disassemble The Main Gearbox Case And Fittings, Disassembly-001

DMC:V2500-A0-72-60-2100-00A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-21-040-001 Main Gearbox Casing And Fittings - Disassemble The Main Gearbox Case And Fittings, Disassembly-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts and parts with an interference fit. Let the parts soak before removal.

Discard all rubber seal rings, cotter pins and seal washers removed in this procedure.

Remove and discard the lockwire before parts are disconnected or removed.

Transportation covers/blanks must be installed immediately after the removal of the components.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-21-040-051 Remove the Oil Drain Plugs from the Front Side of the Main Gearbox Case

    1. Refer to Figure.

      2. Remove the oil drain plug from the main gearbox case.

      1. Remove the oil drain plug from the seat below the mounting flange of the hydraulic pump. Discard the packing.

      2. Release and remove the insert. Discard the packing.

      3. Remove the oil drain plug from the oil tank.

      1. Remove the oil drain plug from the seat below the mounting flange of the oil pressure pump. Discard the packing.

      2. Remove the two nuts which attach the insert to the main gearbox case. Remove the insert and discard the packing.

    2. SUBTASK 72-60-21-040-052 Remove the Oil Input Adapters from the Rear side of the Main Gearbox Case

    1. Refer to Figure.

      2. Remove the oil input adapter from the seat on the left hand of the mounting flange of the angle gearbox support.

      1. Remove the two nuts which attach the input adapter to the gearbox casing.

      2. Remove the oil input adapter and discard the packing.

      3. Remove the oil input adapter from the seat on the right hand of the mounting flange of the angle gearbox support.

      1. Remove the two nuts which attach the oil input adapter to the gearbox casing.

      2. Remove the oil input adapter and discard the packing.

    3. SUBTASK 72-60-21-040-053 Remove the Oil Drain Plugs from the Rear Side of the Main Gearbox Case

    1. Refer to Figure.

      2. Remove the oil drain plug from the fuel pump drive pad.

      1. Remove the oil drain plug and discard the packing.

      2. Release and remove the insert from the main gearbox case. Discard the packing.

      3. Remove the oil drain plug from the seat below the mounting flange of the IDGS.

      1. Remove the oil drain plug and discard the packing.

      2. Release and remove the insert from the main gearbox case. Discard the packing.

        .

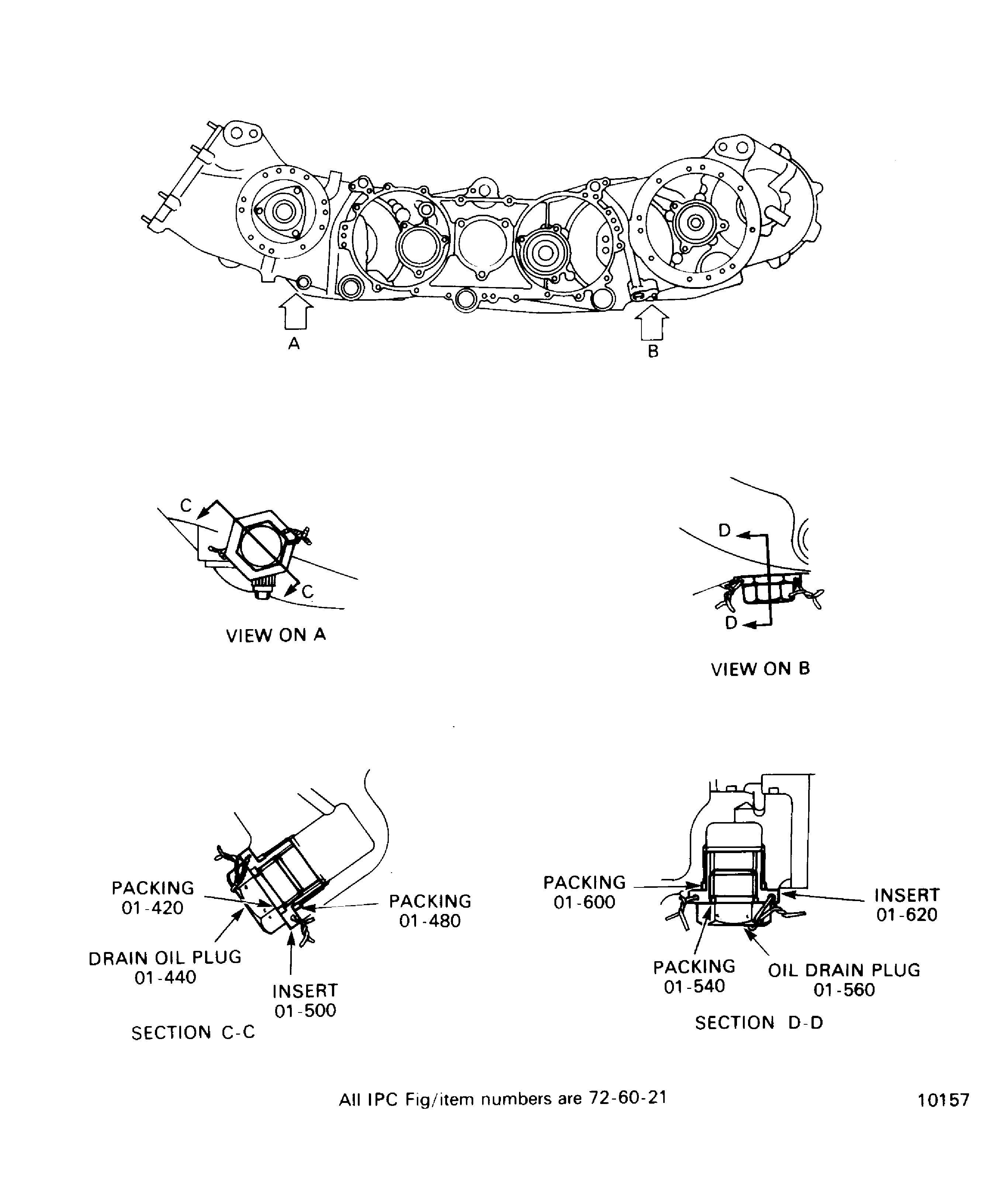

    4. Figure: Plugs on the front side of the main gearbox case

    Plugs on the front side of the main gearbox case

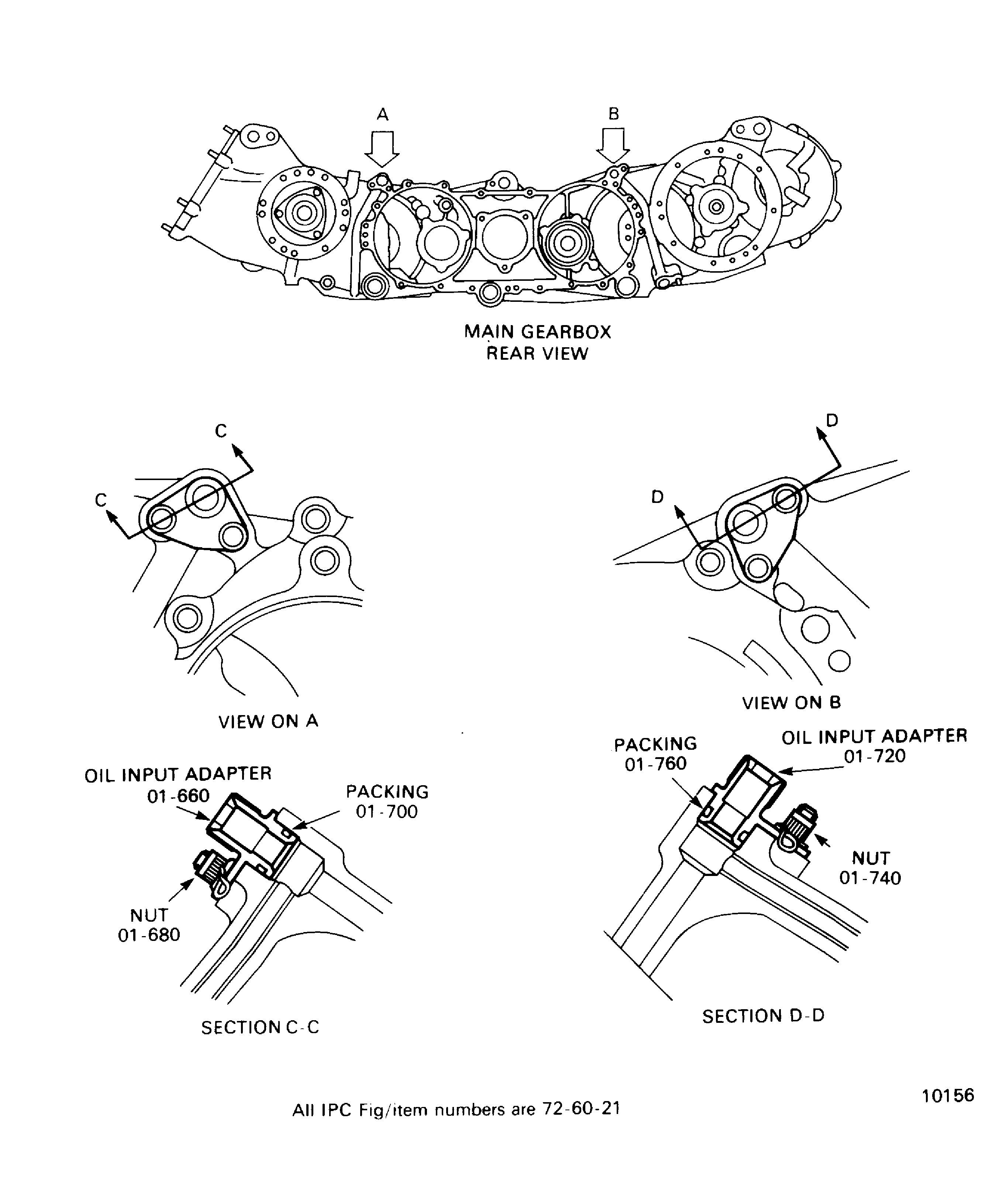

    Figure: Oil input adapters on the rear side of the main gearbox case

    Oil input adapters on the rear side of the main gearbox case

    Figure: Plugs on the rear side of the main gearbox case

    Plugs on the rear side of the main gearbox case

Requirements After Job Completion

Follow-On Conditions

NONE
