TASK 72-60-21-300-026 Main Gearbox Casing - Blend Repair On The Mating Surfaces Of The Oil Pressure Pump, Repair-026 (VRS5265)
Effectivity
FIG/ITEM | PART NO. |
|---|---|
02-050 | 4B0055 |
02-050 | 4B0053 |
02-050 | 4B0054 |
02-050 | 4B0057 |
02-050 | 4B0400 |
02-050 | 4B0402 |
02-050 | 4B0423 |
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPP.
NOTE
To identify the consumable materials, refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501. Use CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT.
Hand polish and blend. The maximum depth of the blending is 0.01 in. (0.25 mm).
SUBTASK 72-60-21-350-156 Repair the Mating Surface

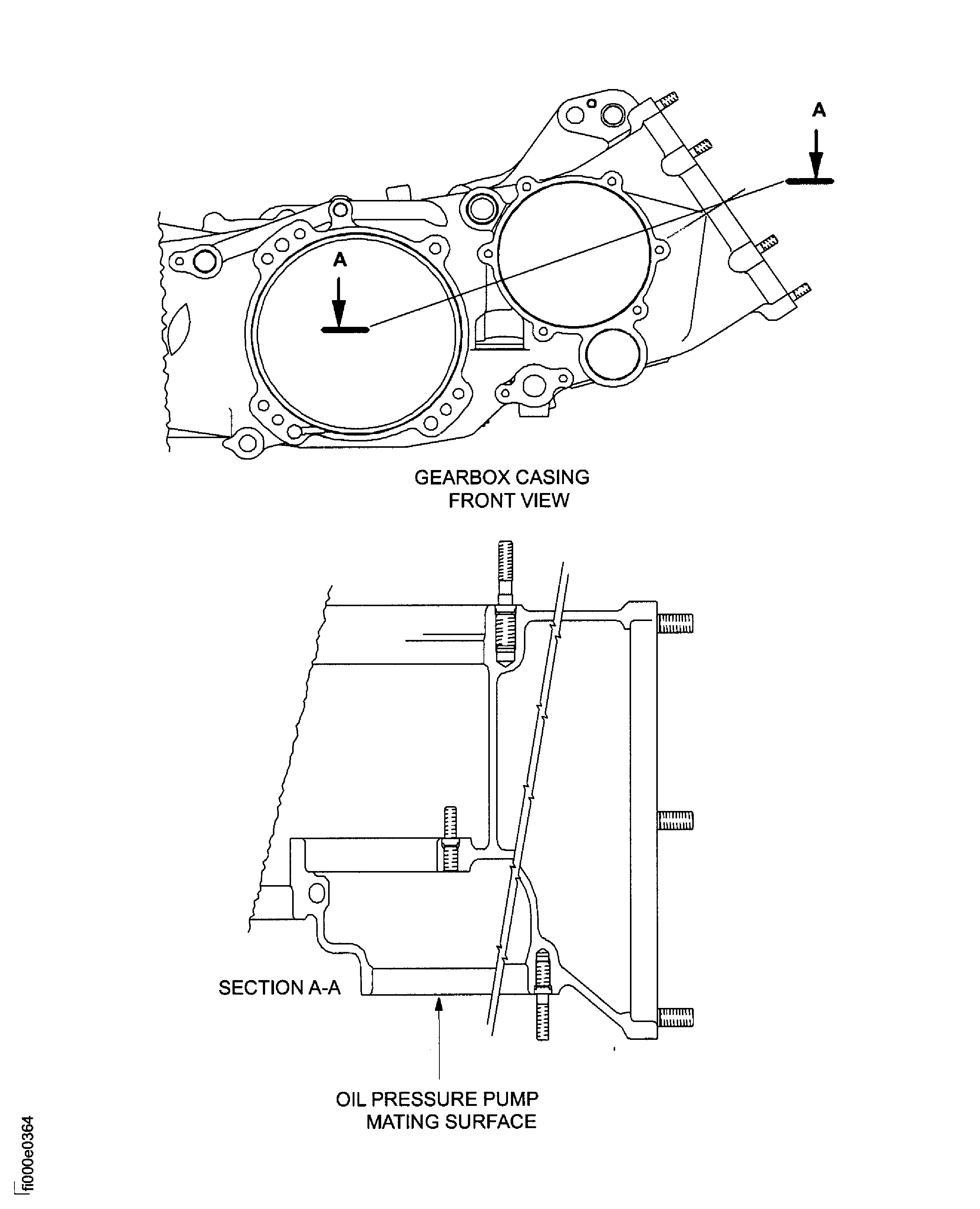

Figure: Repair detail and dimensions
Repair detail and dimensions
