TASK 72-60-21-300-001 Crank Cover - Nickel Plate Piloting Diameter Of Crank Cover, Repair-001 (VRS5016)

DMC:V2500-A0-72-60-2102-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-21-300-001 Crank Cover - Nickel Plate Piloting Diameter Of Crank Cover, Repair-001 (VRS5016)

Effectivity

FIG/ITEM

PART NO.

01-220

4P0084

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Crank drive cover

A357 T61

(AMS 4219)

General

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
FurnaceLOCALFurnace
Magnifying glassLOCALMagnifying glass
Vibrating Marking PencilLOCALVibrating Marking Pencil
BasketLOCALBasket
Magnifying Glass, 4xLOCALMagnifying Glass, 4x

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-21-320-051 Machine the Piloting Diameter of the Cover

    1. Refer to Figure.

      2. Machine the piloting diameter.

      1. Remove all damage and wear.

      2. Keep the removal of material to the minimum necessary to remove the damage.

      3. The piloting diameter must be between 1.3701 to 1.3728 in. (34.800 to 34.870 mm).

    2. SUBTASK 72-60-21-230-053 Examine the Cover

      1. Do a fluorescent penetrant inspection for cracks.

      2. No cracks are permitted.

    3. SUBTASK 72-60-21-110-053 Clean the Cover

      1. WARNING

        WHEN YOU USE CoMat 01-001 SOLVENT, DELETED YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        Do the vapor degreasing.

    4. SUBTASK 72-60-21-330-053 Nickel Plate the Piloting Diameter of the Cover

    1. Refer to Figure.

      2. Mask the areas of the cover not to be plated.

      3. Do the nickel plating.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions.

      3. Plating not in the piloting diameter area is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the cover.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    5. SUBTASK 72-60-21-370-051 De-embrittle the Cover

      1. Put the housing into a furnace at 266 to 302 deg F (130 to 150 deg C) for 12 hours.

      1. Do this procedure as soon as possible in less than 4 hours after the plating.

    6. SUBTASK 72-60-21-220-105 Examine the Cover

      1. Do a visual inspection of the plating for the finish, cracks or adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No roughness or blistering are permitted.

    7. SUBTASK 72-60-21-320-052 Machine the Piloting Diameter of the Cover

    1. Refer to Figure.

      2. Machine the piloting diameter.

      1. The piloting diameter must be between 1.3740 in. to 1.3779 (34.900 mm to 35.00).

      2. Clean the edges of the groove and chamfers, where necessary.

    8. SUBTASK 72-60-21-220-106 Examine the Nickel Plated Area

      1. Do a visual inspection of the plated areas for cracks or adhesion.

      1. Use a 4X magnifying glass.

      2. The natural network crack, emphasized by grinding is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.0006 in. (0.015 mm) after the last machining.

    9. SUBTASK 72-60-21-350-053 Record the Repair

      1. Vibro engrave VRS5016 adjacent to the part number.

      1. Remove the metal which is lifted by the vibro engraving.

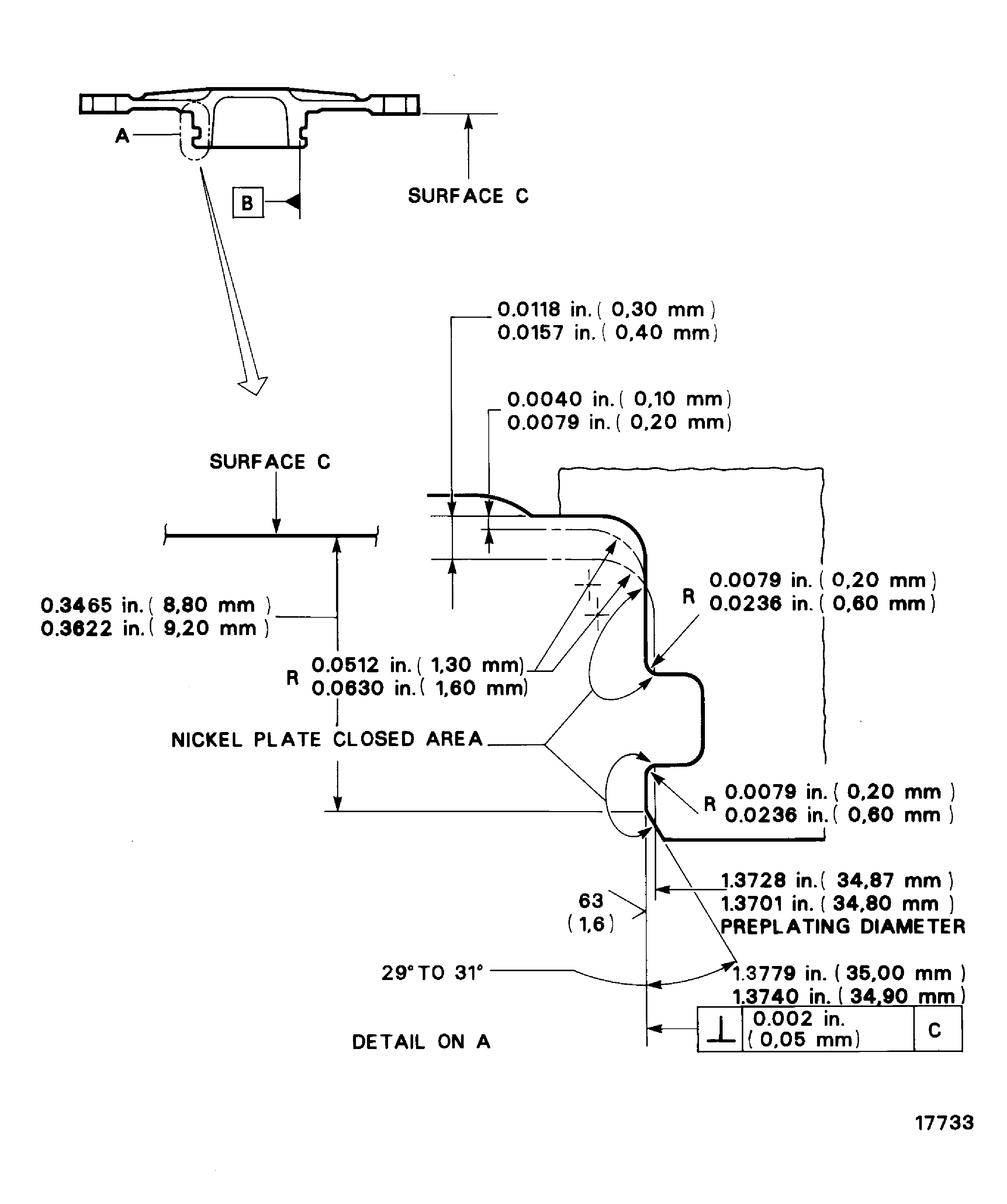

    10. Figure: Repair details and dimension

    Repair details and dimension

Requirements After Job Completion

Follow-On Conditions

NONE
