TASK 72-60-22-300-003 Starter Drive Gear Housing - Blend Repair, Repair-003 (VRS5023)
General
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to the TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.037 in. (0.94 mm).
SUBTASK 72-60-22-350-059 Repair the Starter Drive Housing (01-300) Rough Surfaces at location 1
Refer to Figure.
Refer to the TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.010 in. (0.25 mm).
Refer to the TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.005 in. (0.13 mm).
Seal surfaces at location 3.
SUBTASK 72-60-22-350-060 Repair the Starter Drive Housing (01-300) Machine Surfaces

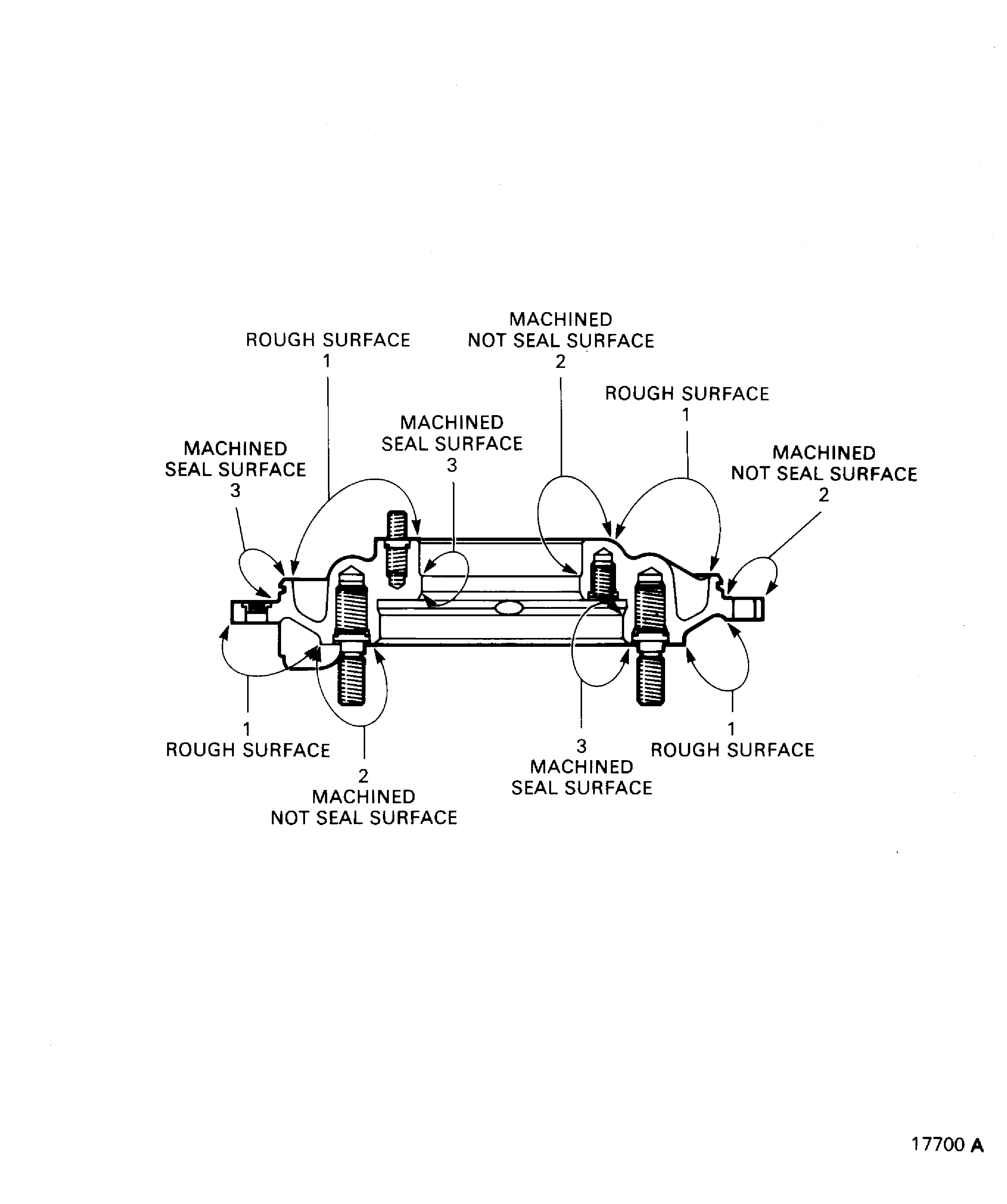

Figure: Repair details and dimensions
Repair details and dimensions
