TASK 72-60-22-300-013 Starter Drive Gear Housing - Nickel Plate The Housing Piloting Diameters, Repair-013 (VRS5033)

DMC:V2500-A0-72-60-2204-02A-647A-C|Issue No:002.00|Issue Date:2016-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-22-300-013 Starter Drive Gear Housing - Nickel Plate The Housing Piloting Diameters, Repair-013 (VRS5033)

Effectivity

FIG/ITEM

PART NO.

01-300

4B0248

01-300A

4B0349

01-300B

4B0371

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Starter drive housing

A357 T61

(AMS 4219)

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
FPI inspection stationLOCALFPI inspection station

(Refer to SPM TASK 70-23-01-230-501)

Vapor degreaserLOCALVapor degreaser(Refer to SPM TASK 70-11-01-300-503)

Process Plating TanksLOCALProcess plating tanks

(Refer to SPM TASK 70-33-08-300-503)

FurnaceLOCALFurnace
Magnifying glassLOCALMagnifying glass
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 01-027 HYDROFLUORIC ACIDLOCALCoMat 01-027
CoMat 01-058 NITRIC ACID HNO3LOCALCoMat 01-058
CoMat 01-112 ALKALINE SILICATE DEGREASER23373CoMat 01-112
CoMat 01-343 DELETED0AM53CoMat 01-343
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067
CoMat 03-230 PLATING MATERIALLOCALCoMat 03-230
CoMat 03-231 PLATING MATERIALLOCALCoMat 03-231

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-22-320-055 Machine the Piloting Diameter of the Housing

    1. Refer to Figure.

      2. Machine the piloting diameter.

      1. Remove all damage and wear.

        Keep the removal of material to the minimum necessary to remove the damage.

        The piloting diameter must be between 7.3986 to 7.3937 in. (187.924 to 187.800 mm).

    2. SUBTASK 72-60-22-230-053 Examine the Housing

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-01-230-501.

        No cracks are permitted.

    3. SUBTASK 72-60-22-110-053 Remove the Grease from the Housing

      1. Do the vapor degreasing.

    4. SUBTASK 72-60-22-330-053 Nickel Plate the Piloting Diameter of the Housing

    1. Refer to Figure.

      2. Mask the areas of the housing not to be plated.

      3. Do the nickel plating.

      1. Refer to the SPMTASK 70-33-08-330-503 .

      2. Plate to a sufficient thickness to permit the machining to the last dimensions.

      3. The plating out of the plating area is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the housing.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    5. SUBTASK 72-60-22-370-053 De-embrittle the Housing

      1. Put the housing into a furnace at 266 to 302 deg F (130 to 150 deg C) for 12 hours.

      1. Do this procedure as soon as possible in 4 hours after the plating.

    6. SUBTASK 72-60-22-220-073 Examine the Housing

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No rough and blistering are permitted.

    7. SUBTASK 72-60-22-320-056 Machine the Piloting Diameter of the Housing

    1. Refer to Figure.

      2. Machine the piloting diameter.

      1. The piloting diameter must be between 7.4016 to 7.3998 in. (188.00 to 187.954 mm).

      2. Clean up the edges of groove and chamfers, where necessary.

    8. SUBTASK 72-60-22-220-074 Examine the Nickel Plated Areas

      1. Do the visual inspection of the plated areas for cracks and adhesion.

      1. Use a 4X magnifying glass.

      2. The natural network crack, emphasized by grinding is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.0006 in. (0.015 mm) after the last machining.

    9. SUBTASK 72-60-22-350-053 Record the Repair

      1. Vibro engrave VRS5033 adjacent to the part number.

      1. Remove the metal lifted by marking.

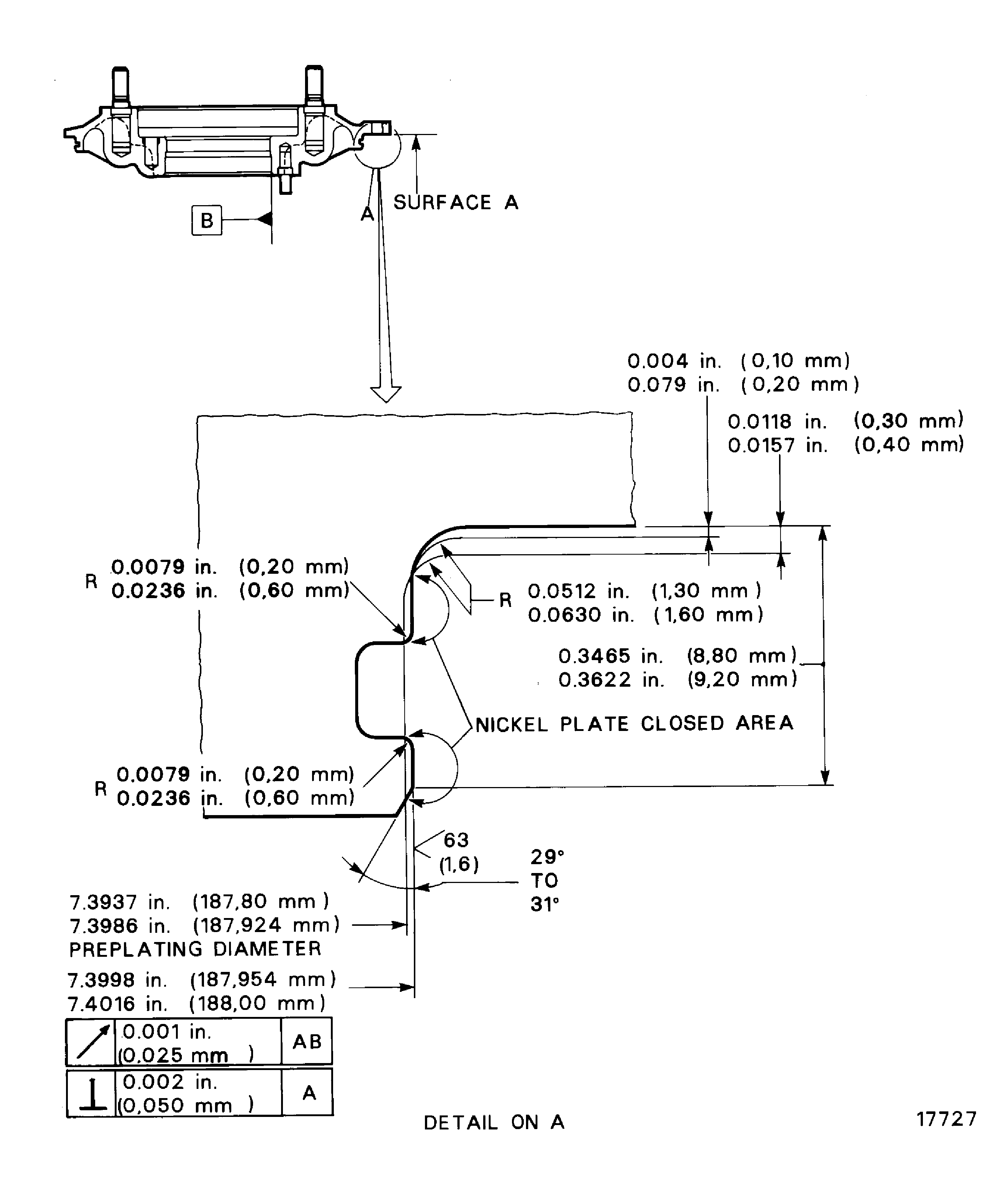

    10. Figure: Repair details and dimension

    Repair details and dimension

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added part numbers 4B0349 and 4B0371 to the effectivity table. (11VF844A)
